- Model No.STC-HH70
- Auto-adjustment of the jaw height - Self adjusts to variations in workpiece height while maintaining clamping force - Approx. 2-3/8"
- Adjustable clamping force based on the adjusting screw in the joint (Range of25 to 550 lbs.)
- Holding capacity up to 700 lbs (nominal)
- Adaptable Base Plate - Holes are sized & spaced for easy mounting & flexibility in metric & imperial
- Corrosion resistance, Nickel plated coatings inhibit corrosion &extend tool life
- Plastic pressure cap protect the work piece surface

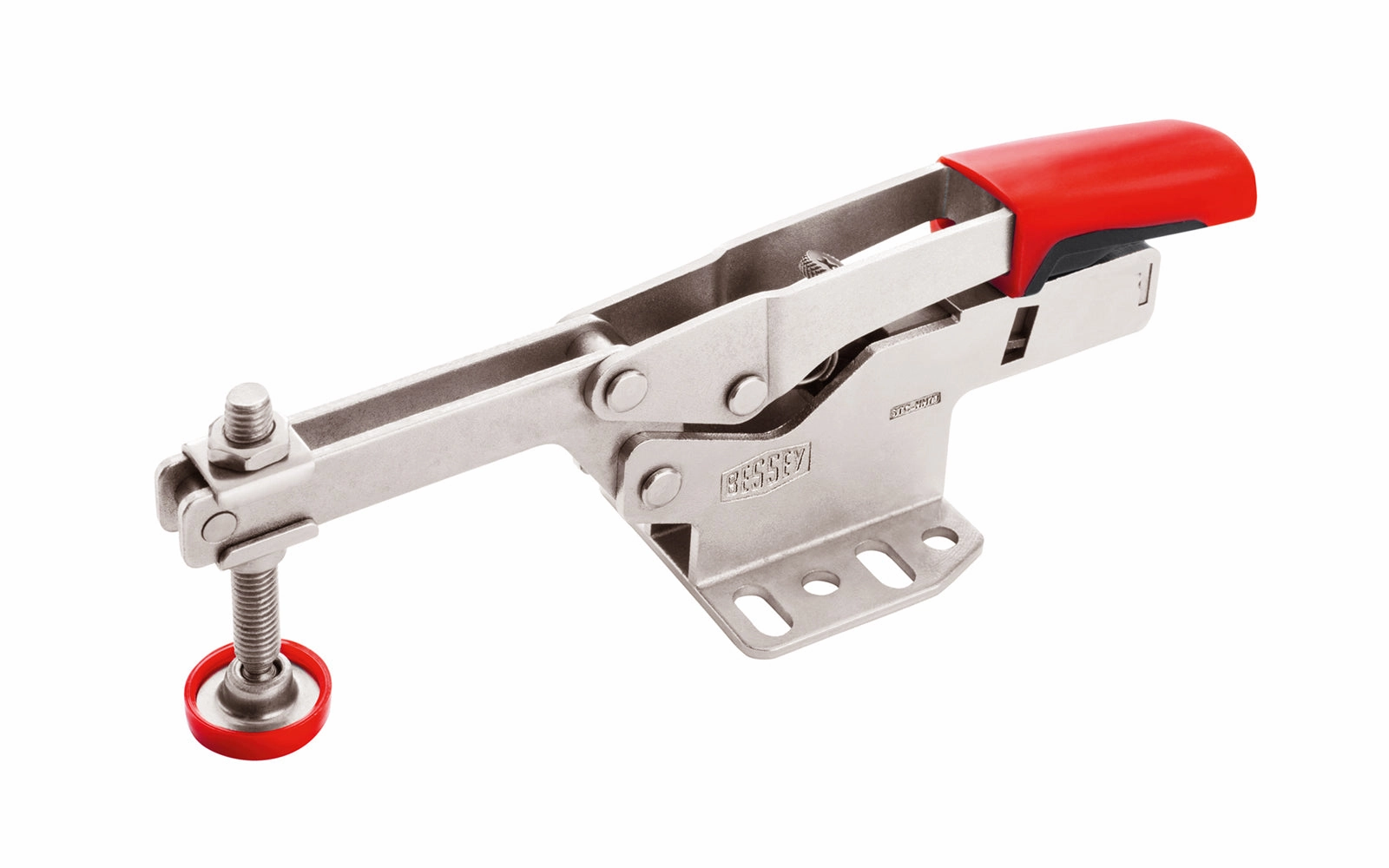

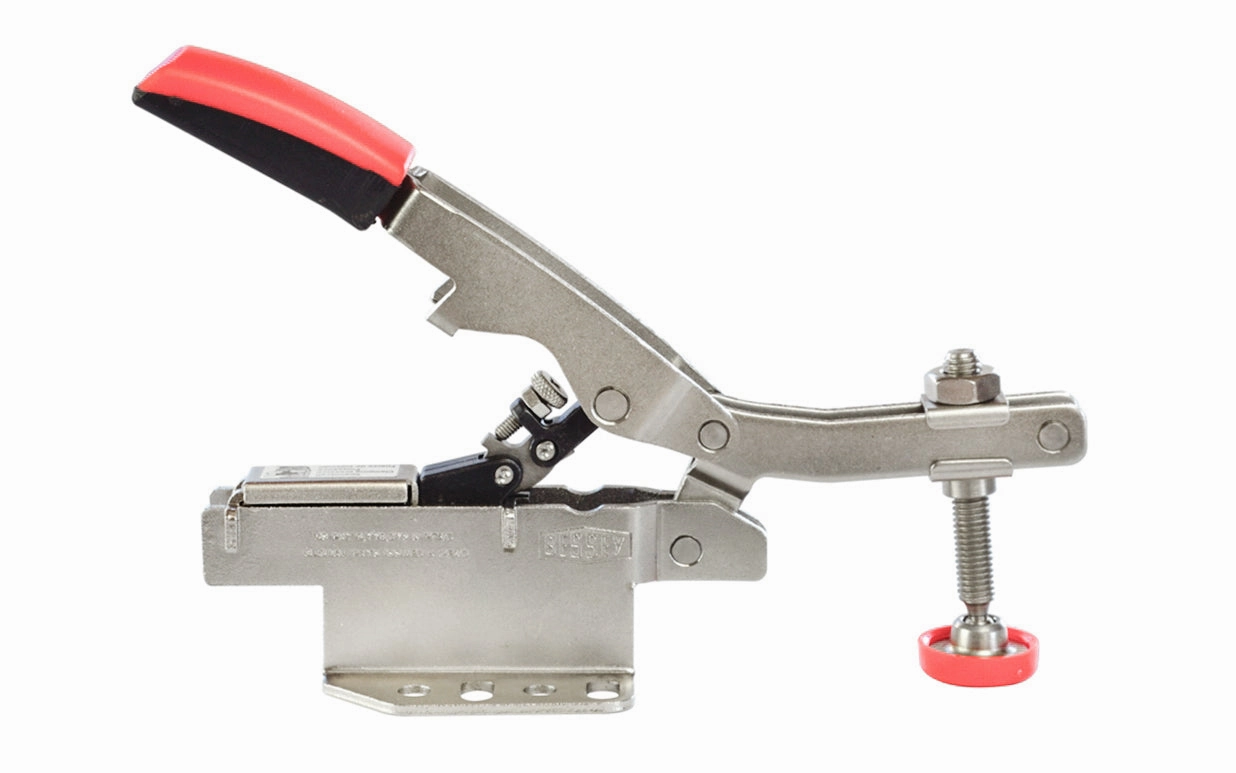

This auto-adjust Toggle Clamp by Bessey automatically adjusts to variations in the work piece height while maintaining clamping force, & has an adjustable clamping force based on the adjusting screw in the joint. Large ergonomic &heat resistant handles are designed with user comfort in mind. Soft inserts further reduce hand fatigue. Integrated pressure screw allows clamping force adjustment from 25 to 550 lbs. Holding capacity up to 700 lbs (nominal).
From the Manufacturer - About Bessey
Since 1889, Bessey has been setting standards in hand clamping &cutting technology. Our core competencies of research &development allow us to continuously create innovative new products &, to improve upon our current products. Bessey's tools are produced from the top quality materials, using state of-the-art techniques. This allows the highest degree of comfort, safety &user-friendliness so that you can also benefit from our unique innovation advantage &, in accordance with our company motto: Bessey. Simply better.
Product Clamping Capacity Automatic Adjust Nominal Clamping Force Range Holding Capacity Overall Clamp Size Model # Bessey Auto-Adjust Toggle Clamp - 2-3/8" Capacity - STC-HH70 2-3/8" 1-3/8" 25 - 550 lb. 700 lb. 8-1/2" Long x 2-1/2" Wide x 2-1/2" High STC-HH70
