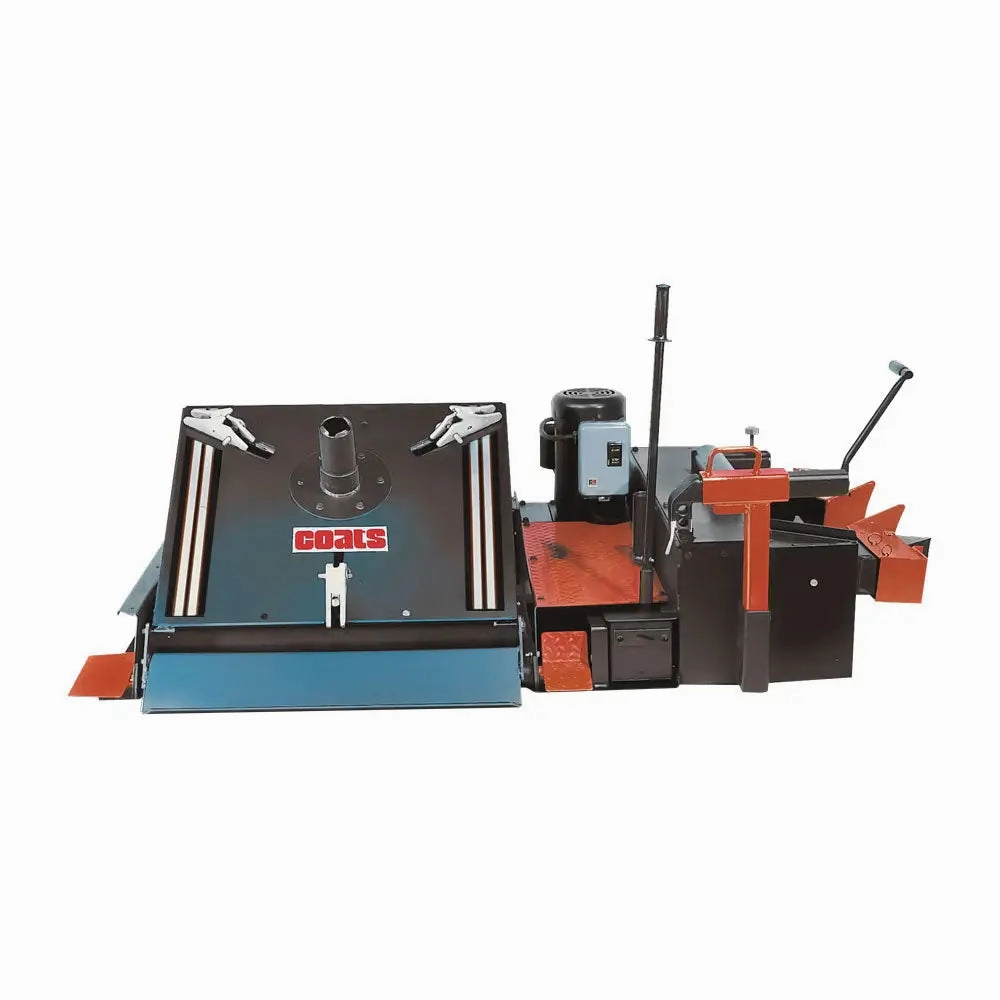

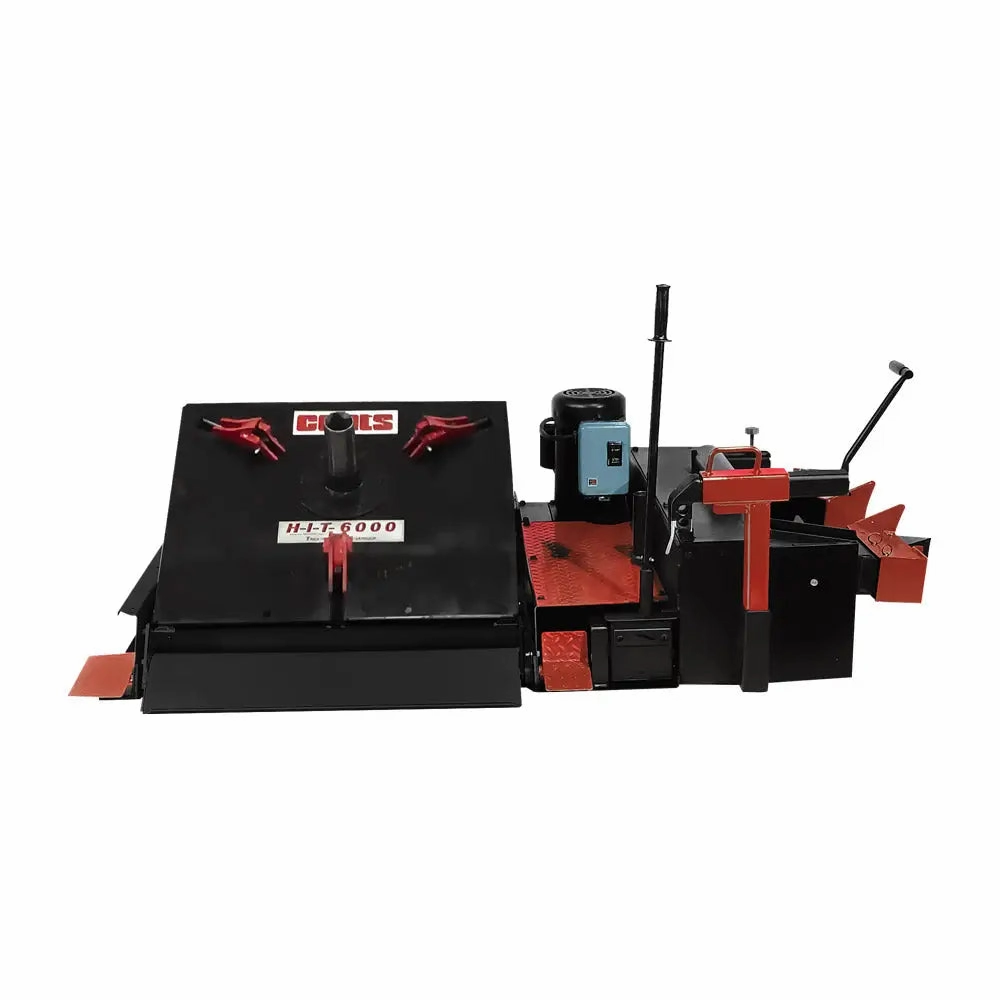

Coats HIT6000, Truck Tire Changer designed for servicing tubeless tires. It can change tubeless truck tires in a matter of minutes without the use of adapters, as well as loosen tube-type tire beads.
Features:
- Handles wheel widths of 6 inches to 15 inches and diameters of 16.5 inches to 24.5 inches.
- Changes all 15-degree single-piece highway rims, including demountable Dayton wheels, reverse disc Budd wheels and standard disc wheels.
- One control stick for pivoting the tabletop and clamping the rim chuck.
- Dedicated two-way pedals activate bead-loosening, mounting and demounting.
- Optional #183945 nylon head combo tool available for aluminum wheels.
Specs:
Operation: Lay Back, Center MountWheel Handled: Budd & Dayton Tubeless
Mount / Demount: Center Post
Tool Head Offset: Independent Removable, Mount in Table
Table Shape: Lay Back
Wheel Clamping Method: Lay Back, Center Mount
Wheel Lift: Tilt Back
Frame Structure: Tilt Table
Max Tire Diameter: 44in (1118mm)
Max Tire Width: 16in (406mm)
Min / Max Rim Diameter: 16.5in-24.5in
Electric Specifications: 220v / 1ph or 220v / 3ph, 60Hz
Air Required: Yes
Max Chuck Torque: 2900 ft/lbs
Max Overall Dimension: 78in(w)x48in(d)
Weight: 1150 lbs.
