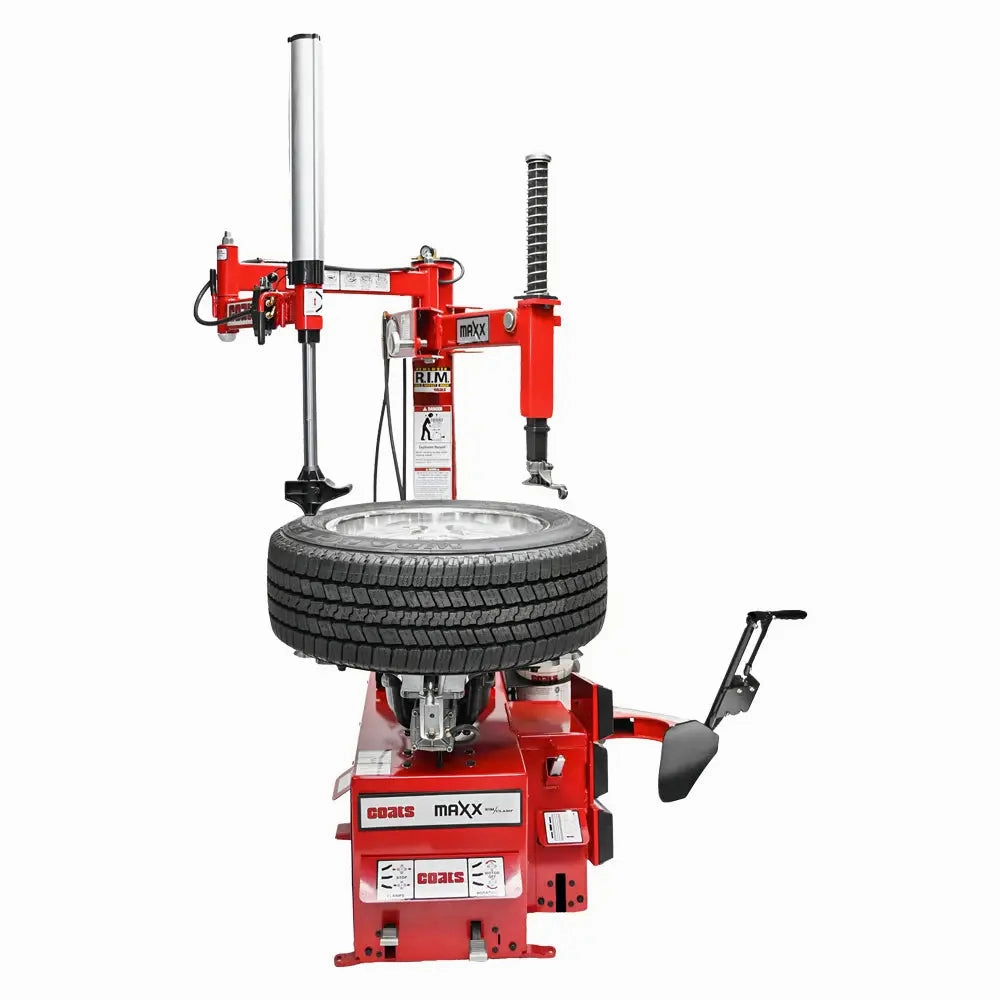

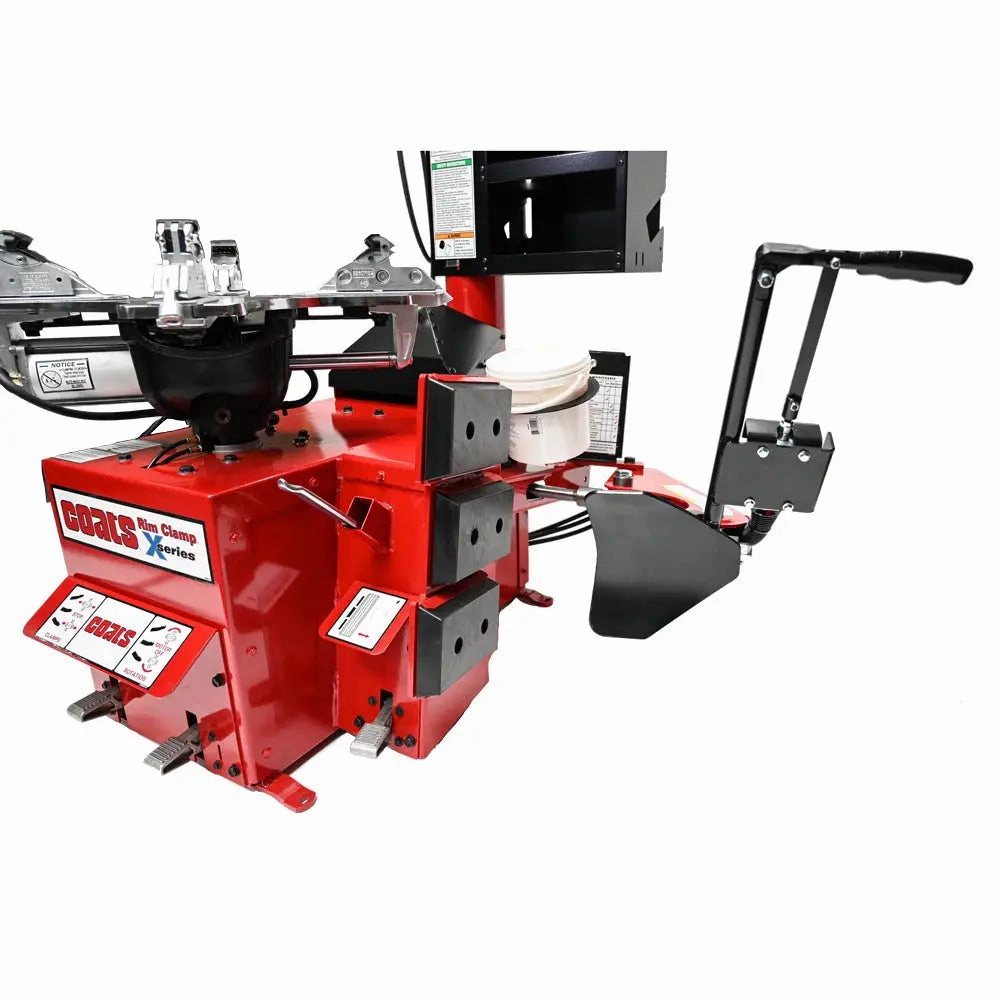

The Coats NEW MAXX 70 Electric RIM CLAMP TIRE CHANGER is a superior alternative to the 60X Series Tire Changer, but it does not have the foot pedal operated bead breaking capability compared to MAXX 80/90. This tire changer is constructed with endurance in mind and boasts a broad clamping range, a dual nozzle bead sealing system, and a Robo Arm Helper Device. Its robust 220V 2HP motor provides a perfect balance of speed and power, enabling your business to keep pace with the ever-increasing demand of your clients. Made in the USA, the MAXX 70 is a wise investment that eliminates the hassle of the hustle!
Features:
- Engineered for durability, it takes on the toughest jobs with ease.
- Intuitive design for confident handling of delicate wheels.
- Brick-house rugged construction ensures long-lasting use.
- Huge clamping range of 6-24" diameter, up to 16 width.

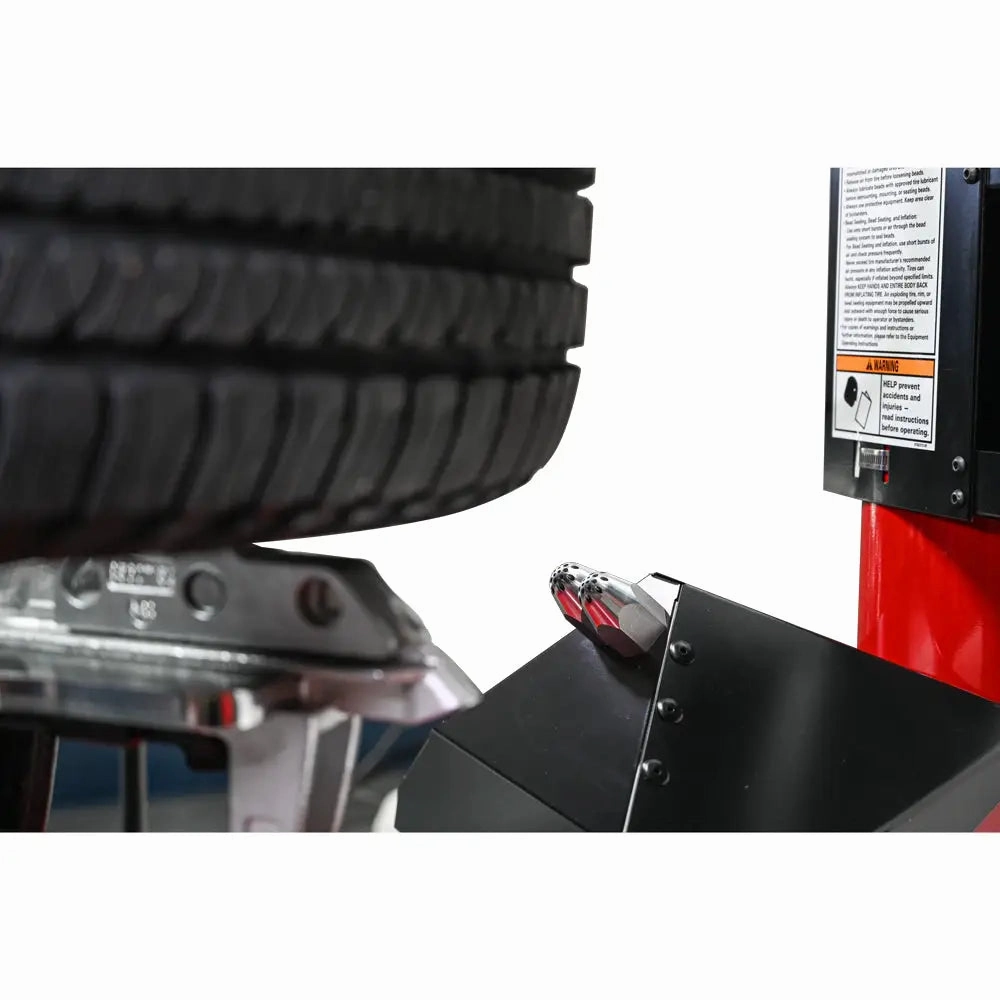

- Dual nozzle bead sealing system quickly fills tires with air.
- Robo Arm Helper Device mounts and dismounts tires effortlessly.
- 220V 2HP motor balances speed and power perfectly.

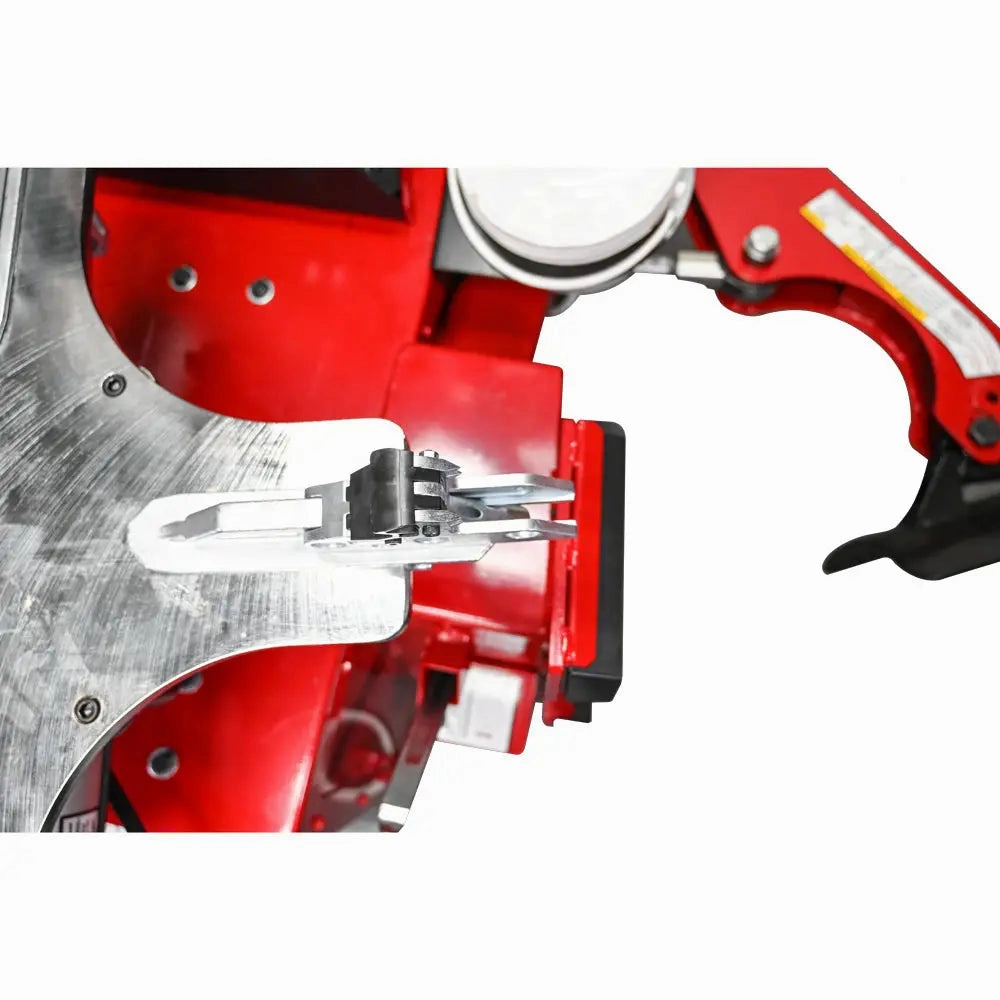

- Steel 3-Position Clamps for 6-24" external clamping range.
- Designed and built in the heartland of the USA.
- Replaces 60X Series Tire Changer; praised by customers and engineers.
Specs:
Wheel Handled:- Alloy and Steel for Car and Light/Medium Truck
Rim Diameter: 6-24in External / 6-30in (Optional Extended Clamp)
Max Rim Width: 16in
Max Tire Diameter: 50in
Bead Loosening Width: Up to 22in Wide
Wheel Clamping System: 4 Clamps, Air Cylinder Operated
Helper Devices: Robo-Arm, Polymer Duckhead
Bead Seating Air Volume: 5.4 Gallons in Tower
Electric Drive System:
- 220V 2 HP Electric
- 110V Electric Motor
Requirements: 220V: 10amps, 1PH, NEMA L6-20

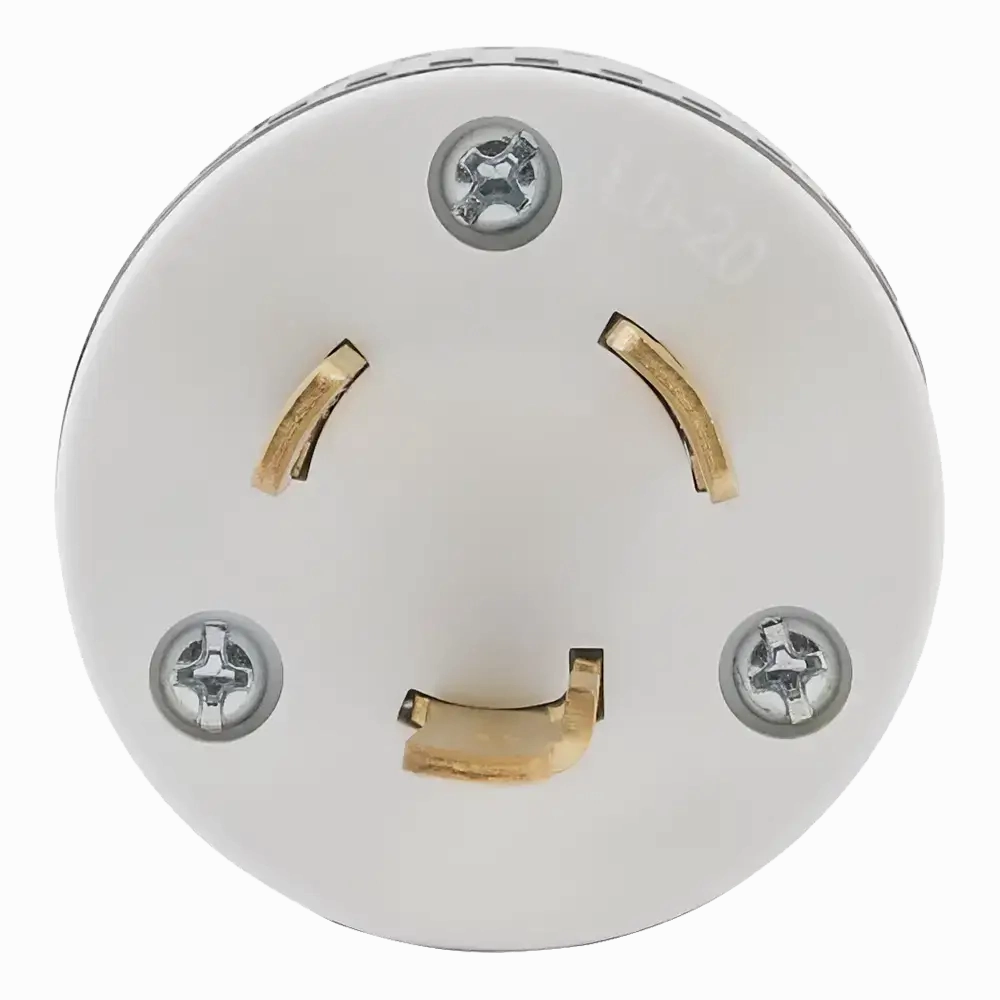

Electric Plug Type for 220: 10 Amp 1 Phase Plug Type (NEMA L6-20)
Footprint: 74inw x 48ind x 85inh
Shipping Weight: 805 lbs.
Ref No:
800MAXX70220 (220V Model)
800MAXX70 (110V Model)
800MAXX70A (Air)
Supercede Model:
130060XE (Obsolete Elec. Model)
60X Electric
Application:
Shop TypesTire Dealers (High Volume)
General Repair Shop
Tire Type:
OE Passenger
Light Truck
SUV
Medium Truck
Wheel:
Alloy
Steel
Includes:
Paste Lube Bracket & BrushPolymer Duckhead
Steel Duckhead Mount/Demount Tool
Steel Clamps
Optional
Grip-max 2.0 24in clamps
4 x Grip-max 2.0 30in Extended clamps
Foot-operated bead loosener kit
Robo-Roller bead roller arm kit
