The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

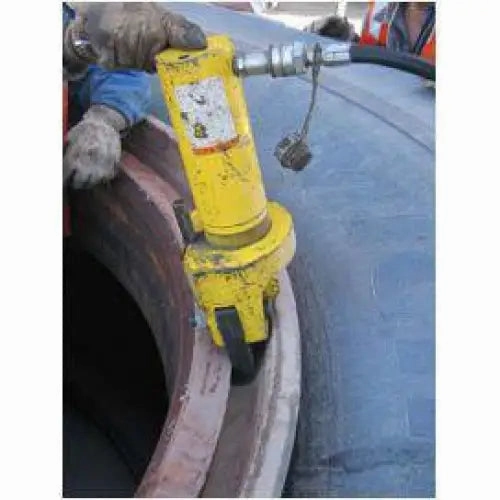

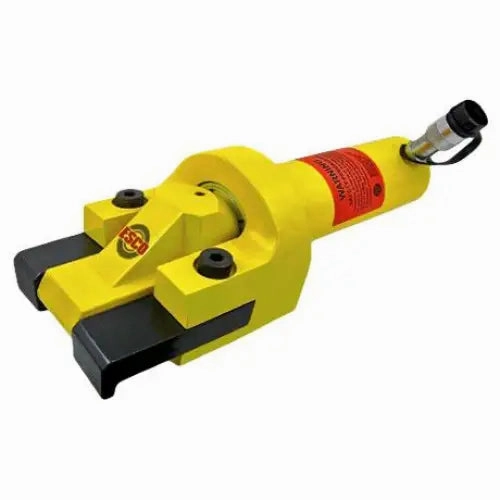

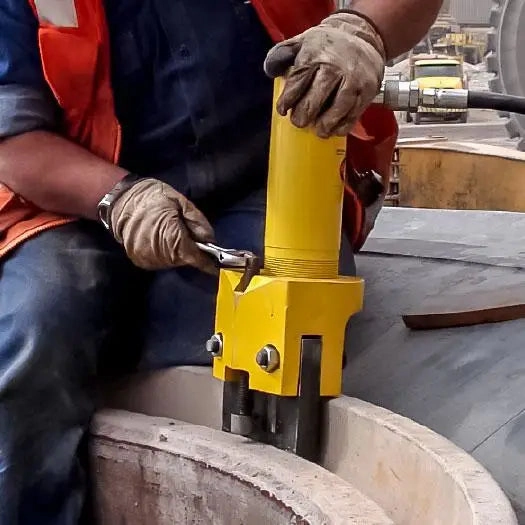

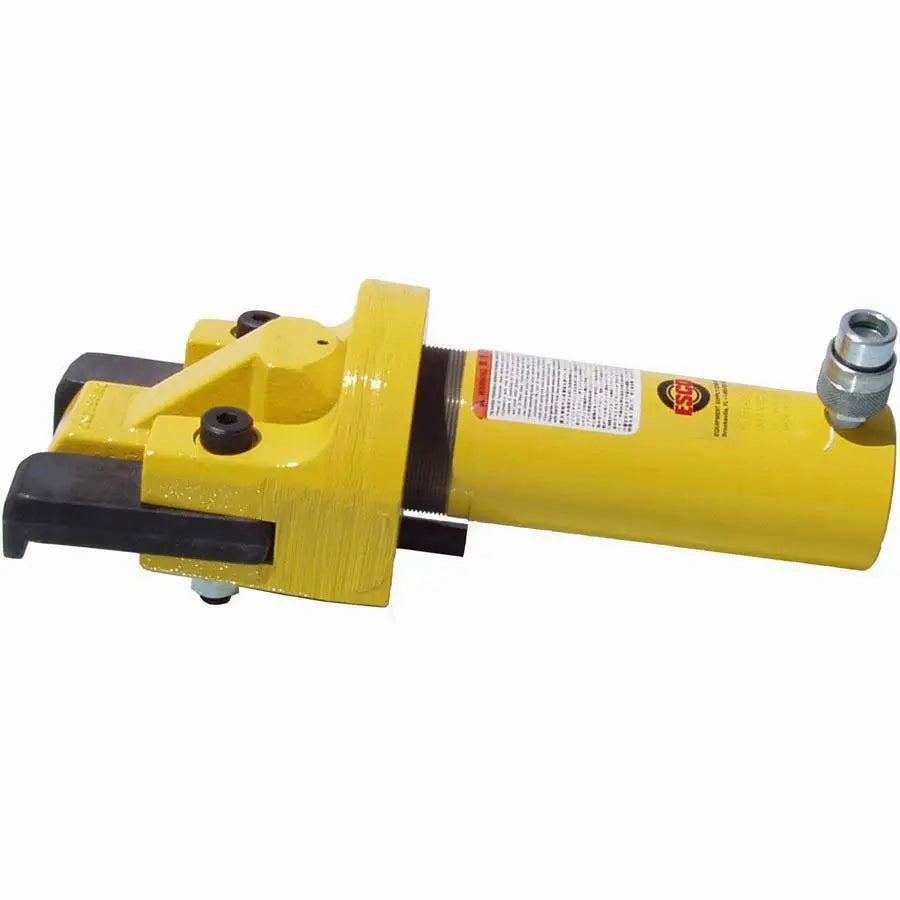

ESC-10103L - Bead Breaker Head with Extended Plunger And Hooks For 63 Wheel Assemblies
Features:
- Use on 5 piece rims 39in, 45in, 51in, 57in, and 63in wheel sizes.
- In some cases you must first use ESC-10105 or the ESC-10100 bead breaker to start the movement of the rim flange; the ESC-10103 can then be used.
- ESC-10504, air/hydraulic pump is recommended for operation.

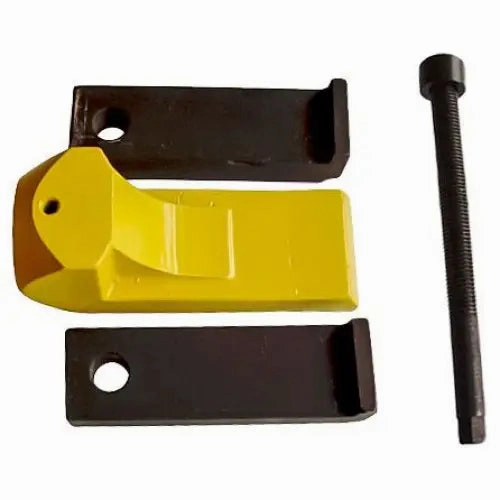

- The ESC-10627 Kit converts the ESC-10103 into a ESC-10103L, which is capable of Working on 63in Rims.
Specs:
Weight: 54 lbs. 25 kgApplication:
39" 5 pcs rim45" 5 pcs rim
51" 5 pcs rim
57" 5 pcs rim
63" 5 pcs rim
