Physical Characteristics
Color
Orange & Black
Material
ABS/Electronics
Length
9.06'' (2.30 cm)
Width
3.47'' (8.8 cm)
Height
1.65'' (4.2 cm)
Weight
0.37 kg
0.81 lb
Details
Measurement Standard
CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
Batteries
3 x AAA
Display Type

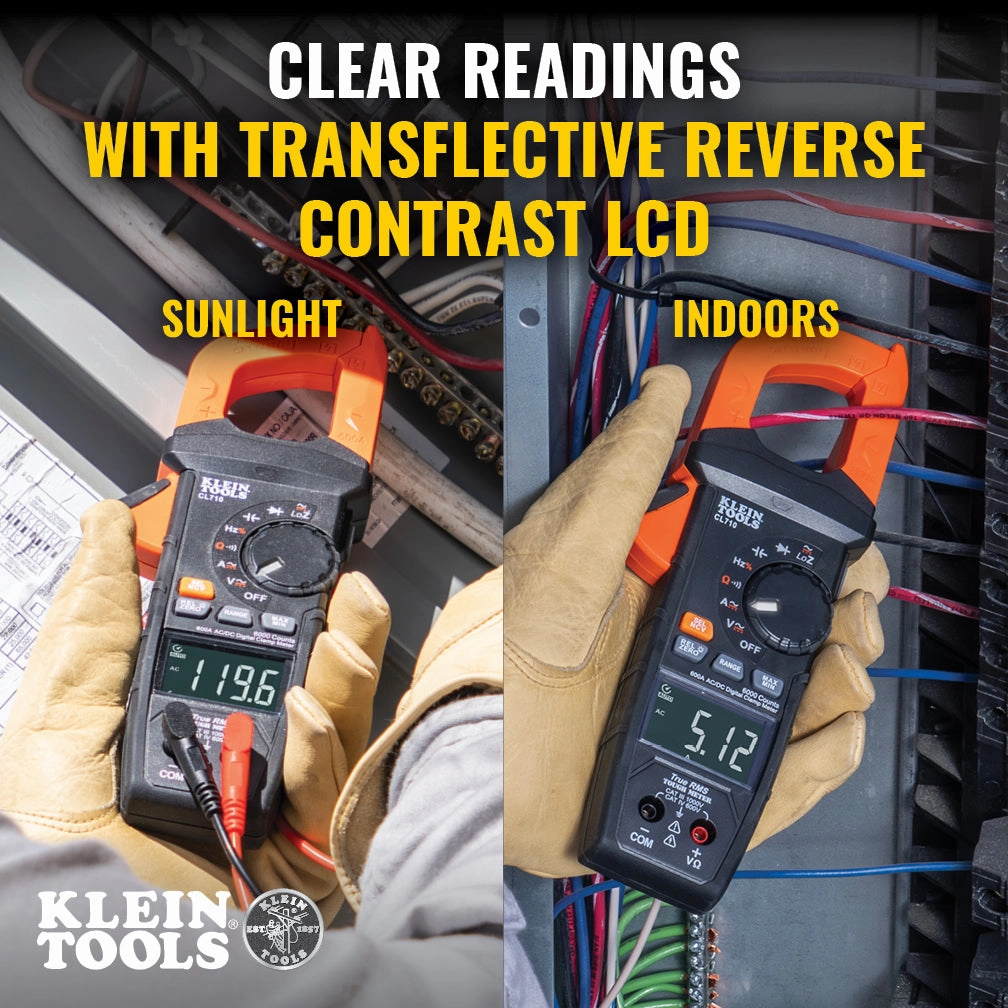

Transflective Reverse-Contrast with 6000 Count LCD; 1.5'' x 1.0'' (3.83 x 2.6 cm)
Functions
AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
Features
Drop Protection: 6.6' (2 m)
Auto Aligning: Yes
TRMS: Yes
Ingress Protection: IP40
DC Polarity Indicator: Yes
DC Micro-Amp: No
Auto Aligning: Yes
TRMS: Yes
Ingress Protection: IP40
DC Polarity Indicator: Yes
DC Micro-Amp: No

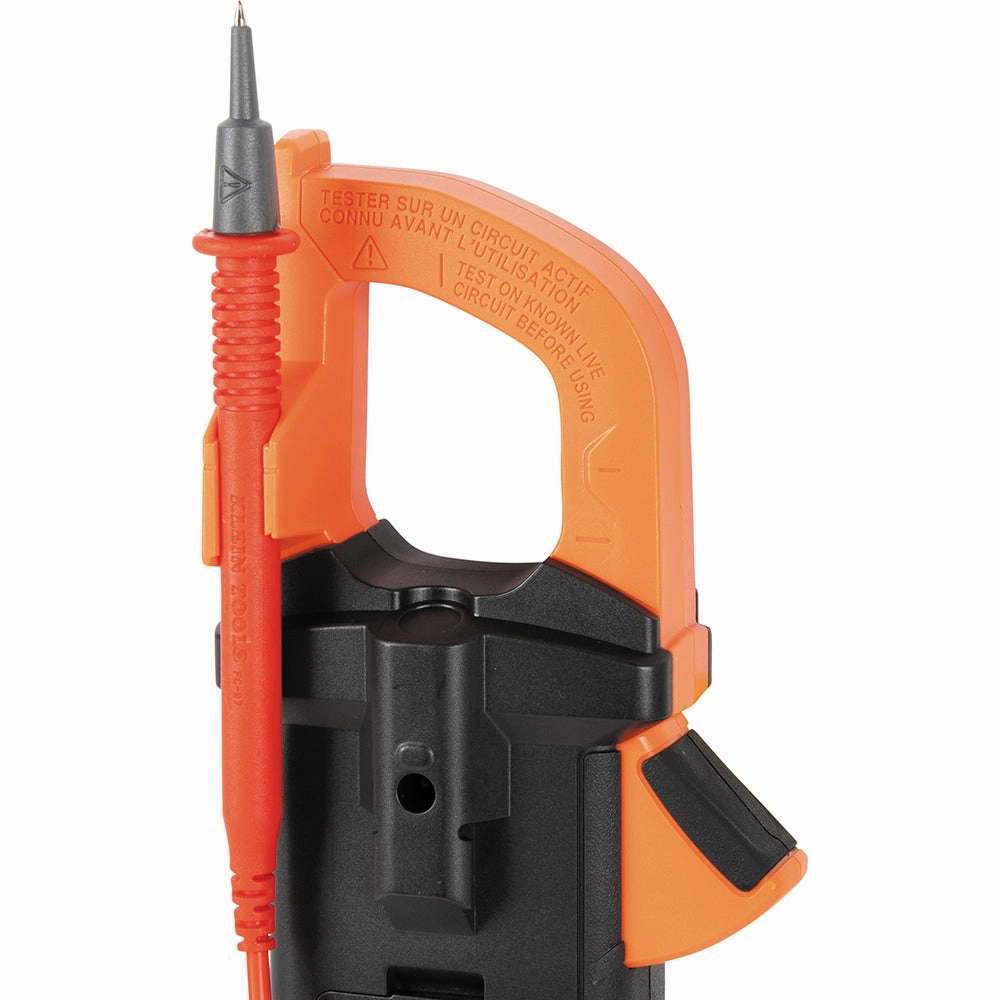

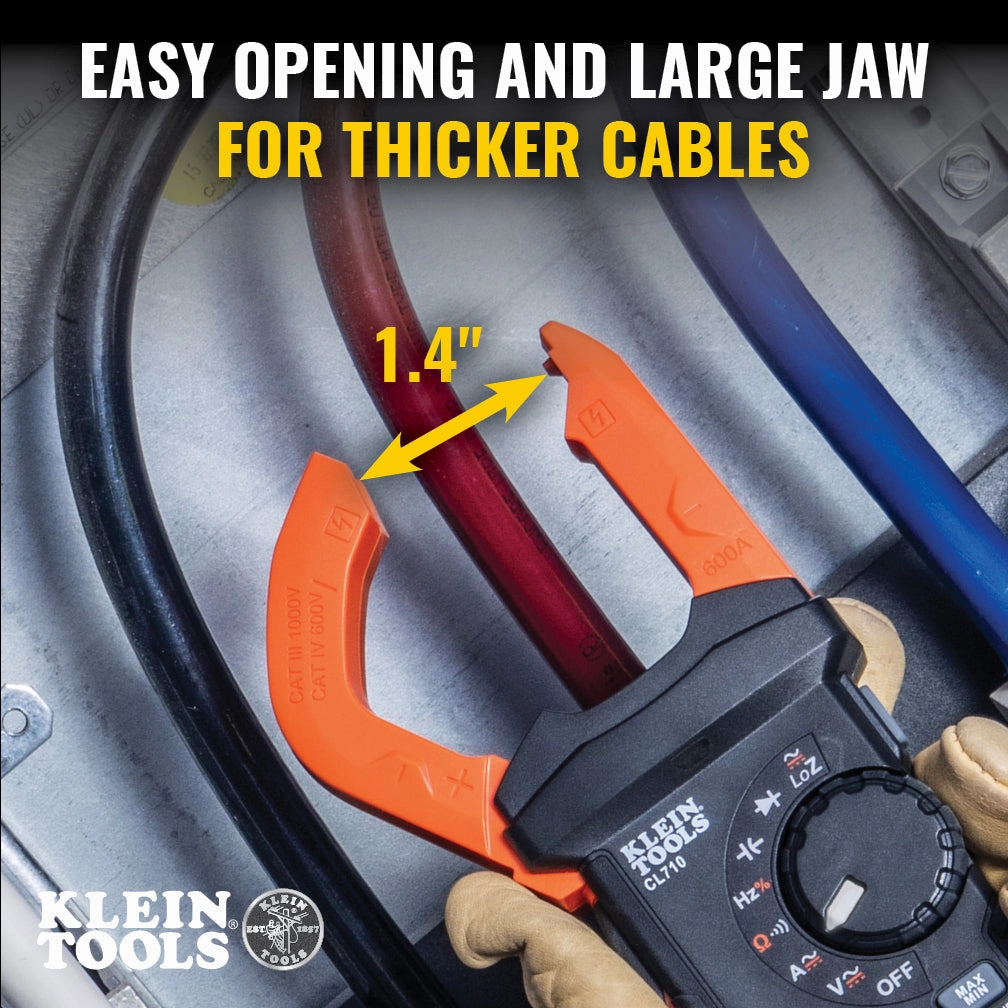

Jaw Size
1.4'' (3.6 cm)
AC Voltage
1000V AC
DC Voltage
1000V DC
Current
600A
Voltage
AC/DC
Capacitance
6000F
Resistance (Ohms)
60M
Frequency
1Hz - 500 KHz
General Information
Brand
Klein Tools
What's Included

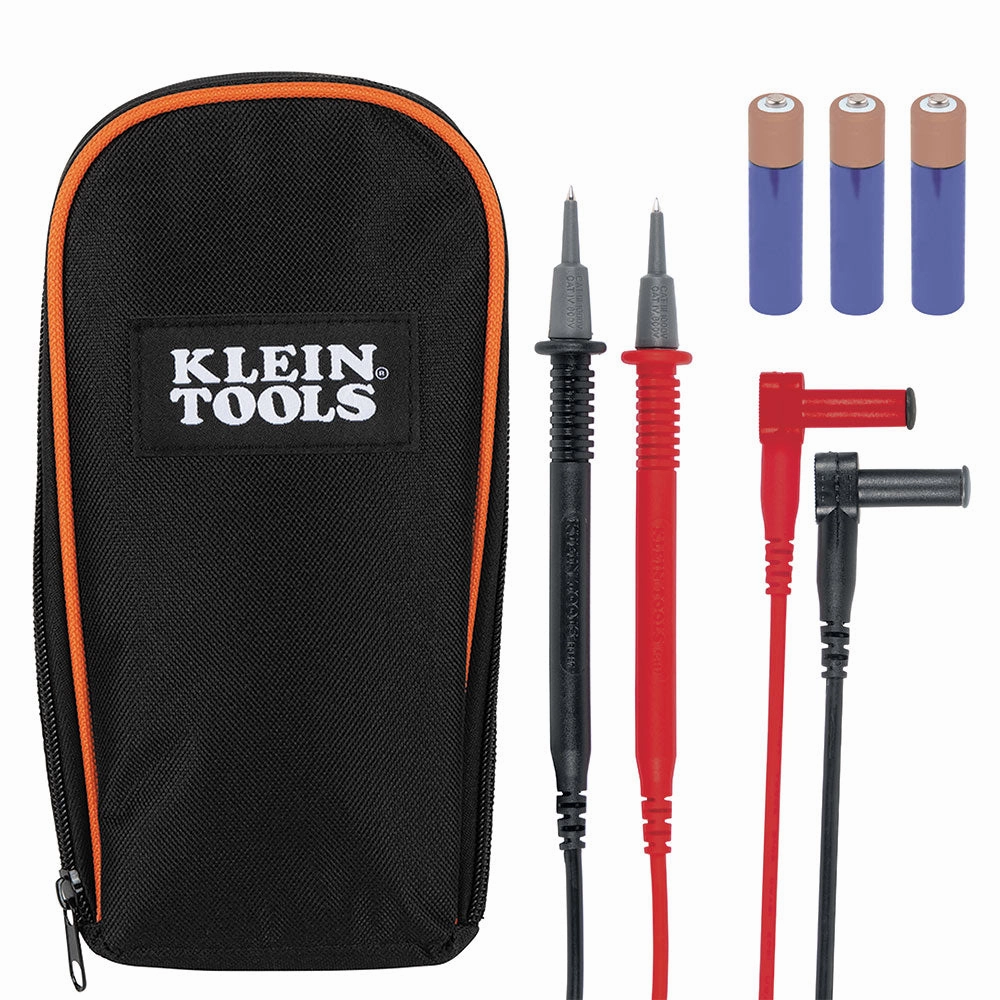

Clamp Meter; Right-Angle Input Test Leads; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
Packaging
Retail
California Residents
Part Number

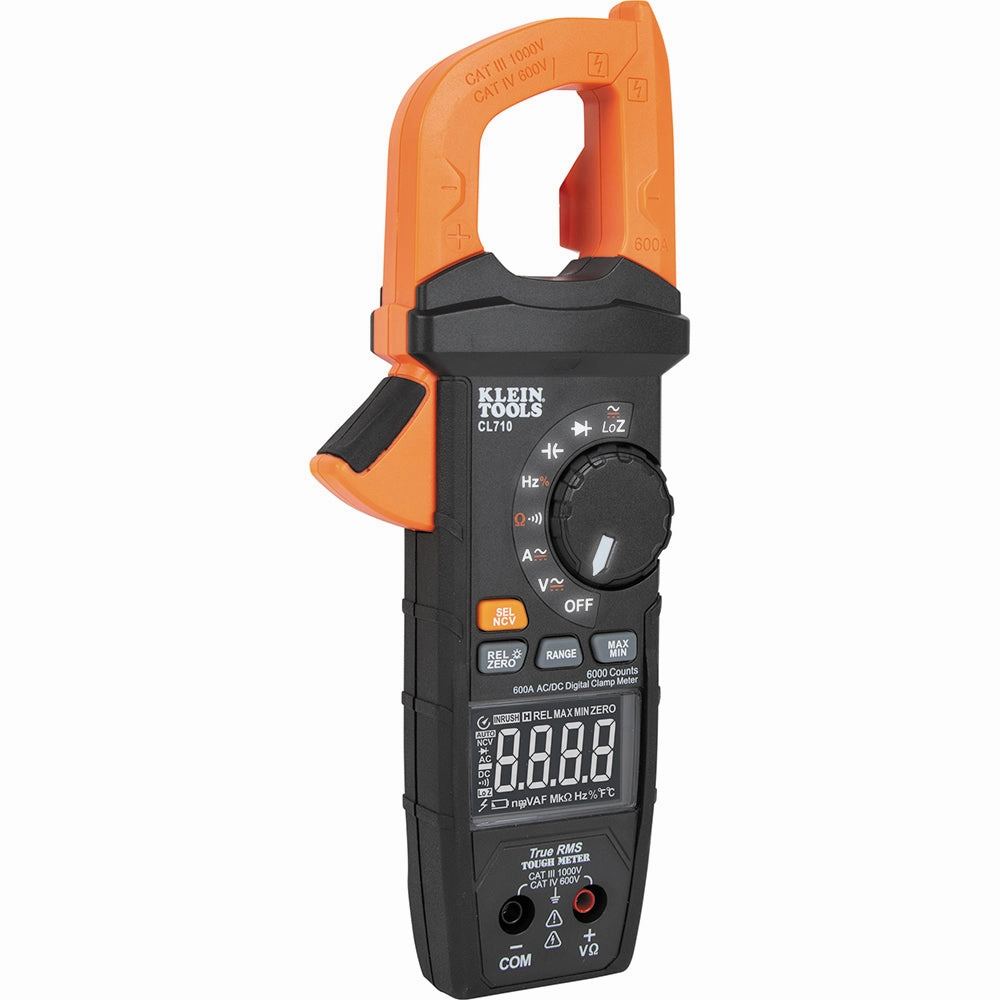

CL710

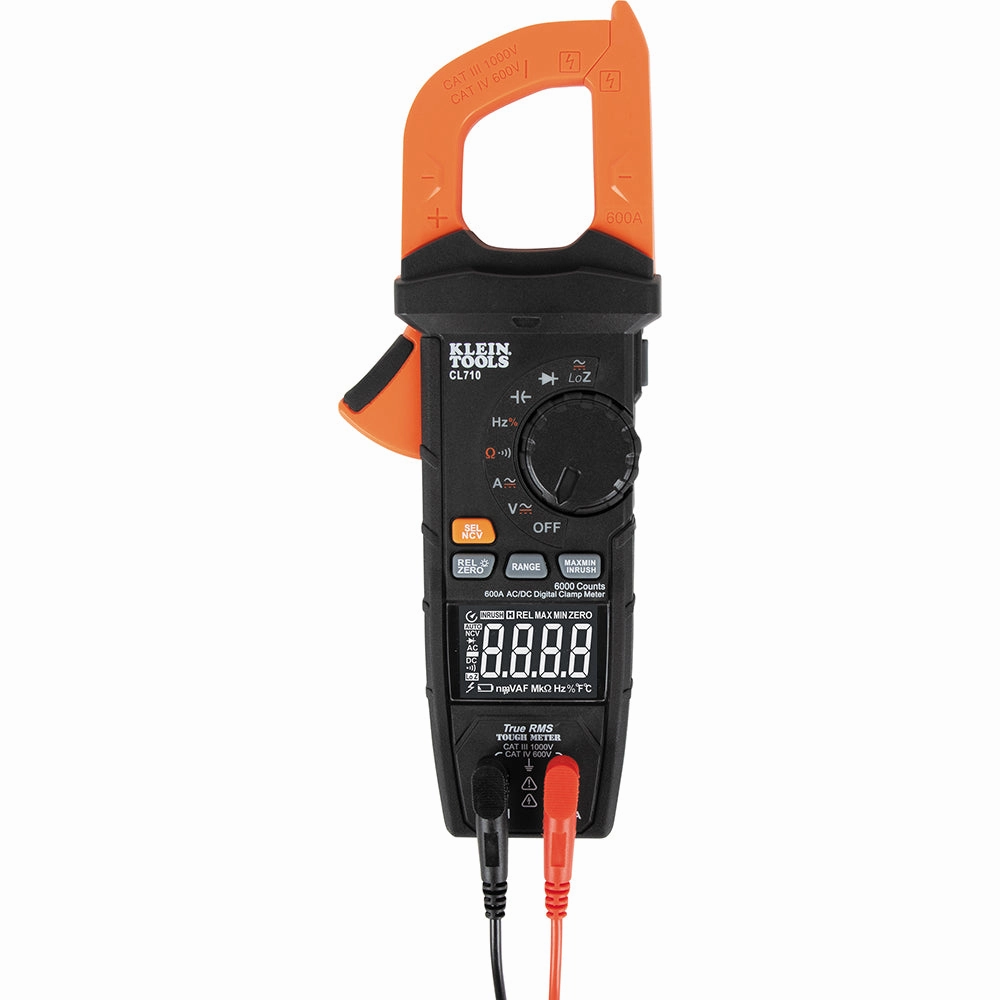

Product Type
Pro Clamp Meter
Application

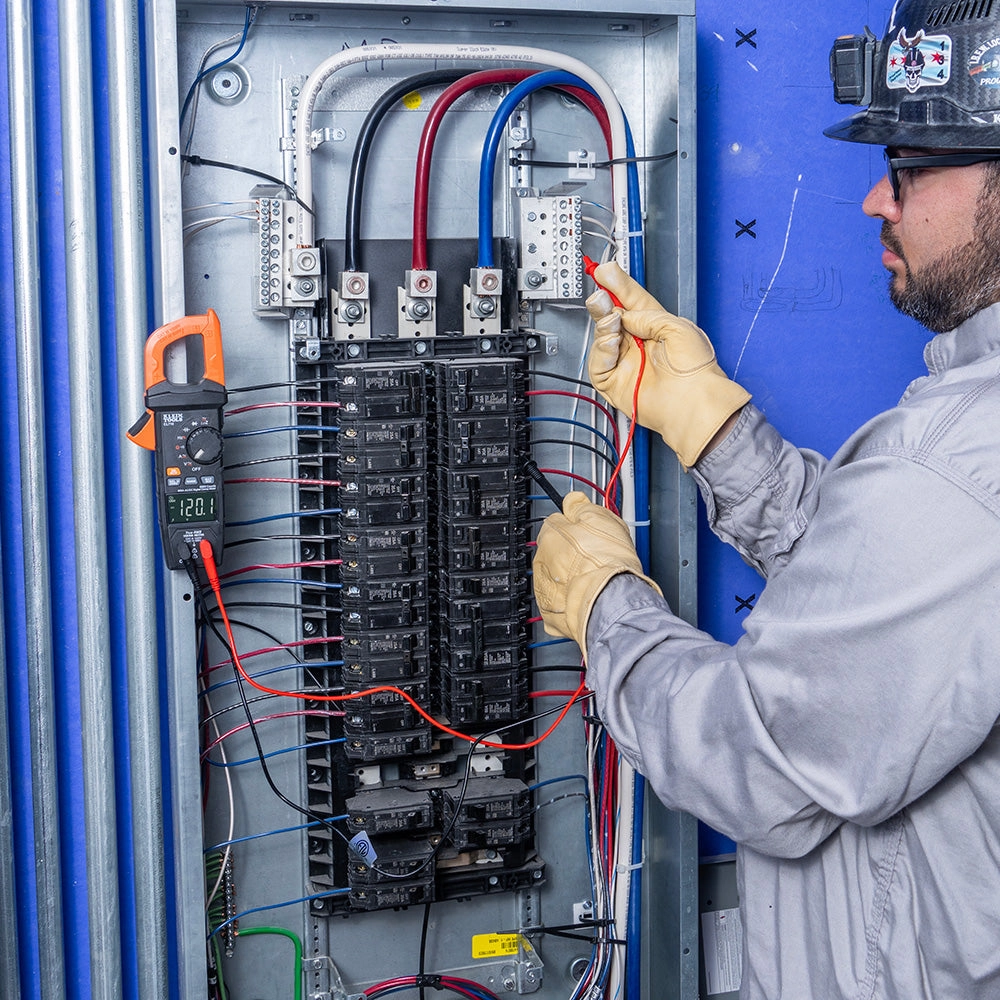

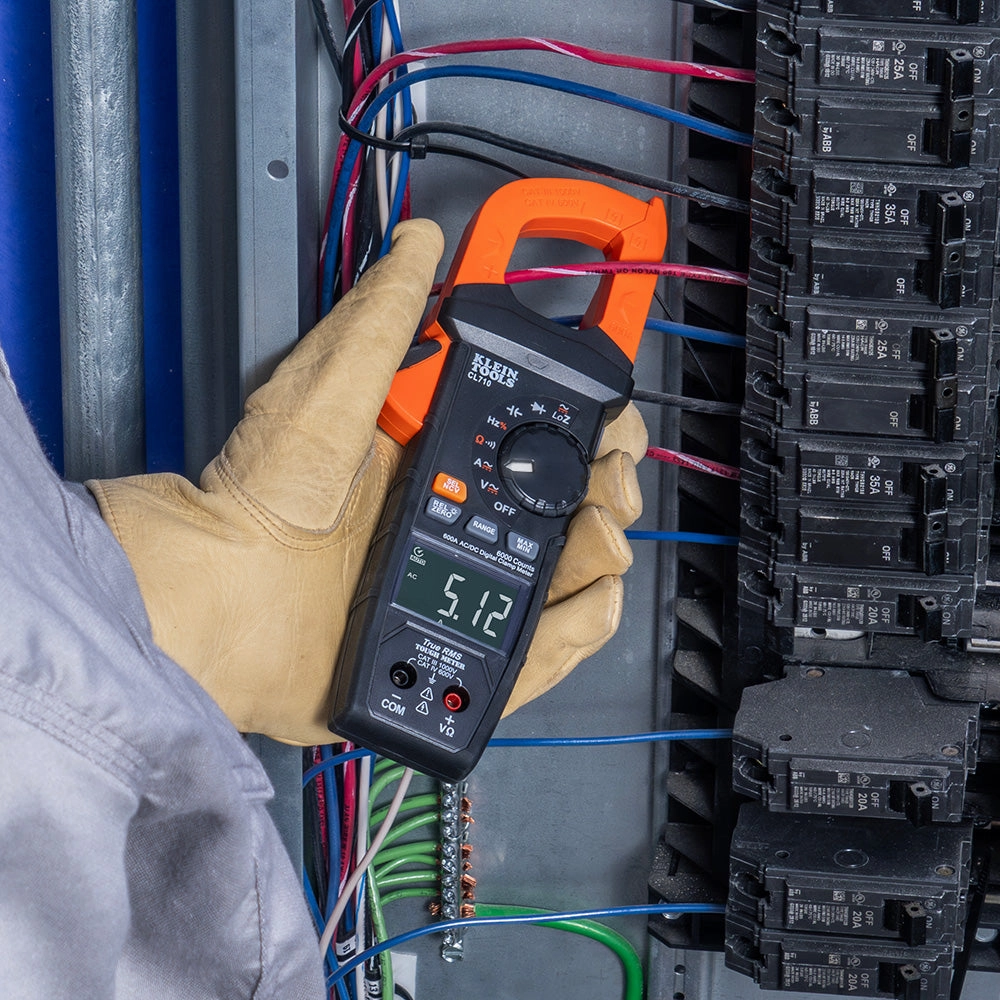

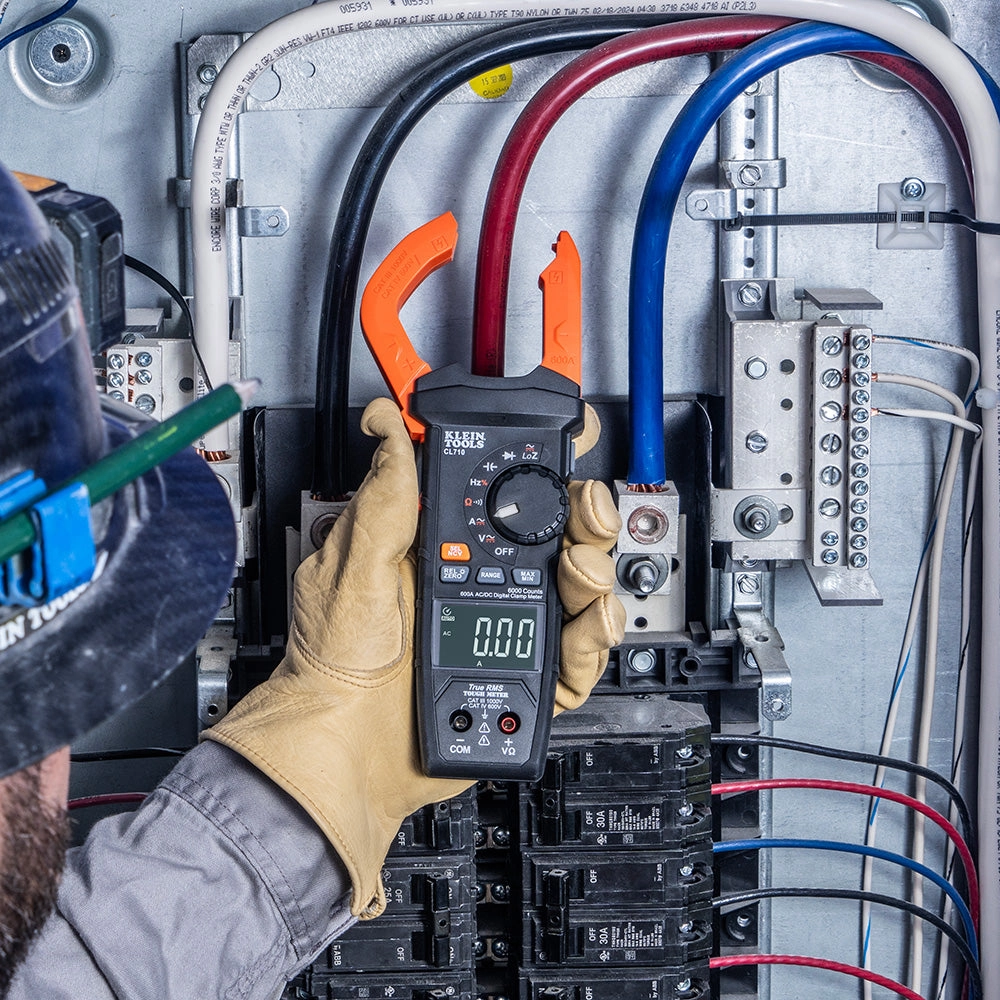

Variety of electrical diagnostic and troubleshooting applications
UPC
092644694493
