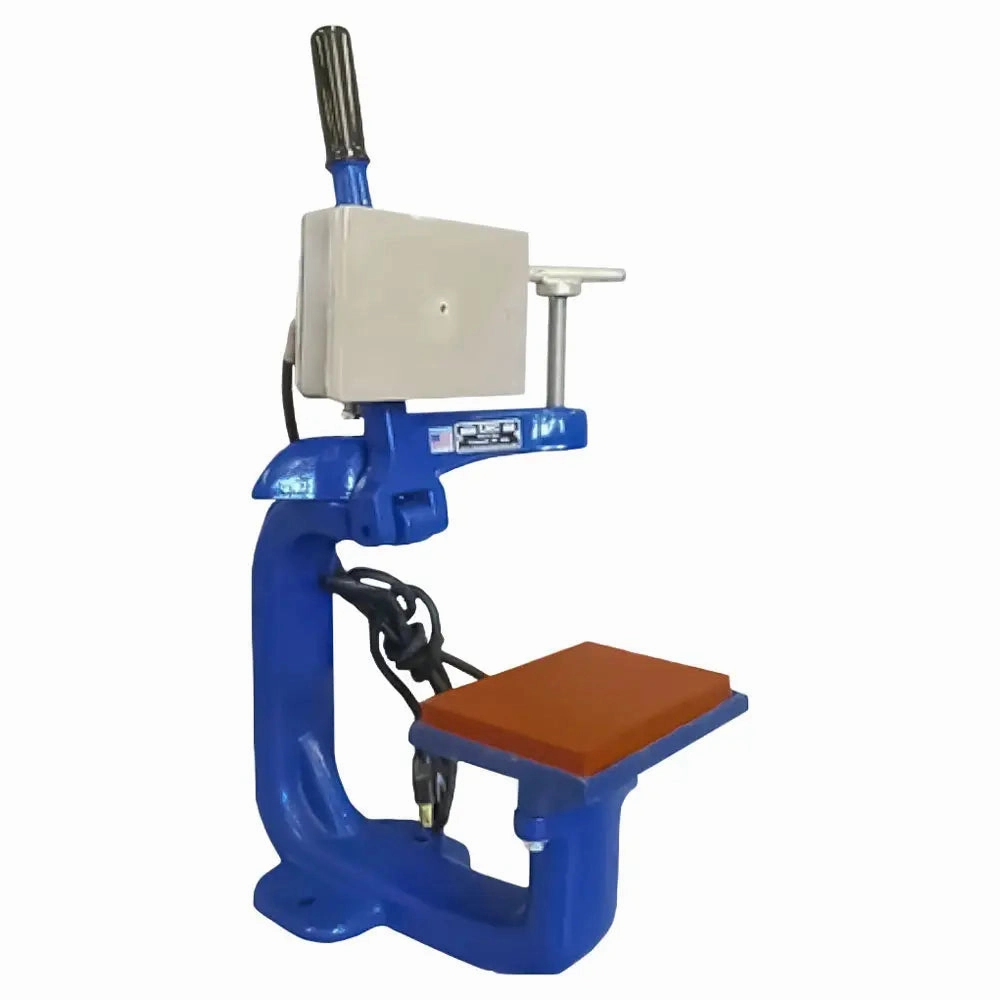

Model 100 Tube Plate Vulcanizers (Large Capacity Tube Repair)
Features:
- The oversize frame allows plenty of room for applications.
- Snap-type thermostat enables heat unit to reach curing temperature fast.
- Heavy-duty vulcanizer for repairing all sizes of inner tubes and installing valve stems.
- Detachable flat plate for vulcanizing valve stems.
- Available in 120V or 240V
Specs:
Shipping Volume: 1.39 cu ftCuring Head Size: 4 x 6 in
No. Curing Head: 1ea.
Throat Depth: 9 in
Includes:
T034: Heat Unit (100)T077: Plate for heat unit (100)
T097: Rubber pad (100)
T160: Frame
T161: Pressure Arm
T162: Handle
T163: Hand-wheel screw
T164: Rubber pad plate (100)
T146: Thermostat for 4 in x 6 in HU (100)
T127: Element
