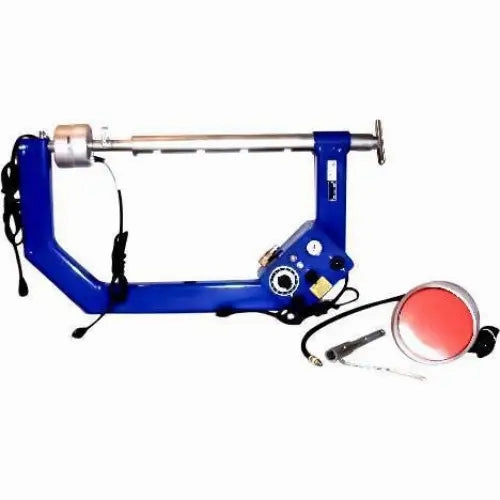

Model 2000 is the only spotter in the market that handles tread, shoulder, and sidewall repairs on all kinds of tires-from low profile to super singles. It will handle future tire sizes by simply changing contour plates.
Features:
- Patented piston/pad system for expert repairs - even by novice operators.
- Inside - outside heat system.
- Spring-loaded mechanical pressure, with solid heat units for tread and shoulder repairs.
- No expensive airbags to replace - air system replacement costs, on average, less than 30 cents per cure.
- Optional large-capacity Model TS stand (T033) supports both tire and vulcanizer with dual 16in rollers for easy tire rotation.
- Optional plate package (T156) contains 9 plates, T086, T087, T130, T131, T132, T133, T134, T135, T136 which fit Vulcanizer 2000 (T026)
- Available in 120voltsor 240 volt
Specs:
Curing head size: 6 inNo. curing heads: 3 ea.
Throat depth: 11-1/2 in
Throat height: 24-1/2 in.
Includes:
T057: Contoured silicone rubber heat pad (6 in diameter) with electrical connectionT060: Solid heat units
T063: Silicone rubber air seal (6 in diameter)
T064: Steel air cylinder witha contouredlip
T121: Detachable electrical cord for T057
T032: 1 HourTimer
T192: DetentPin
T227: Plunger
T228: Spring
T229: Extension shaft
T239: Frame
T240: Telescoping assembly
T277: Air hose with 2 fittings
T119: Air regulator
T220: Pilot Light
T241: Air hose w/fitting
T274: Humphrey Valve
T280: Panel Mount Air Gauge
T281: Circuit Breaker
T145: Thermostat for 4 in HU
T125: Element for 4 in HU
