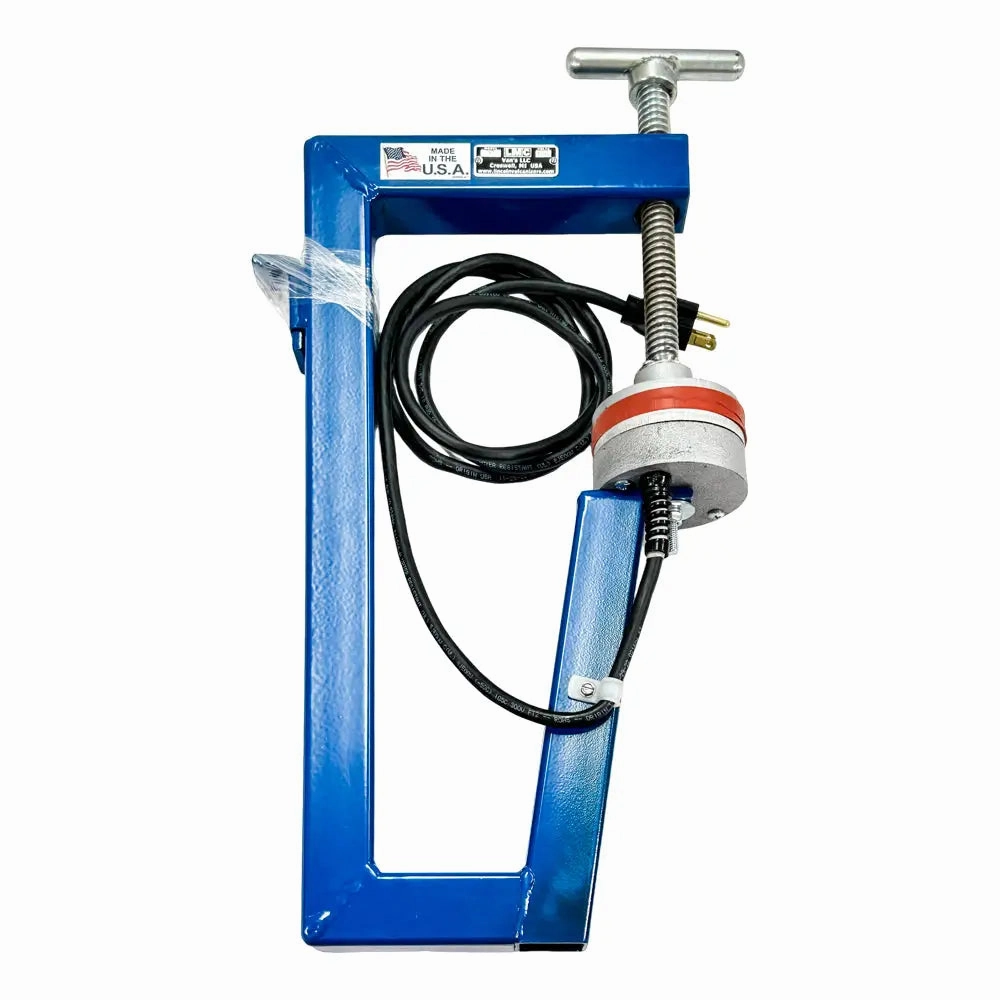

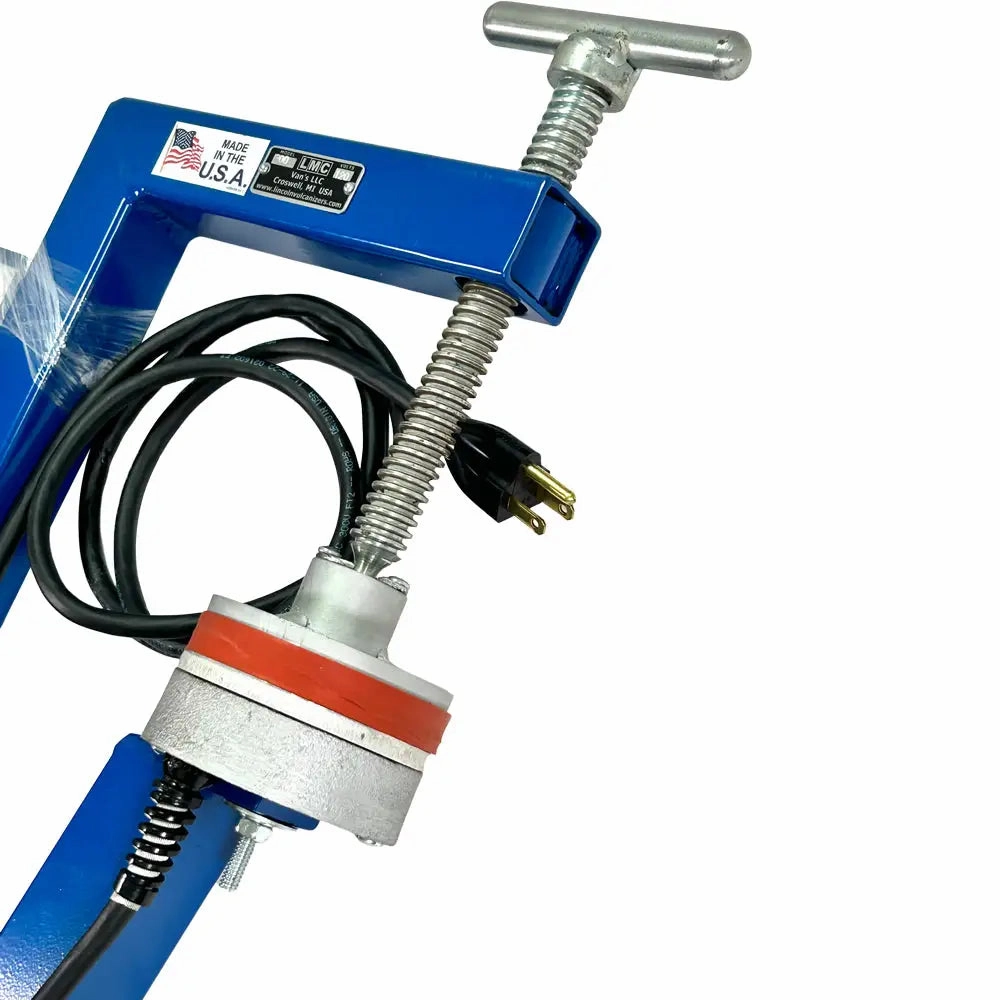

Model 400B Truck Vulcanizer
Features:
- Tubular steel frame reduces unit weight from 18# to 12#.
- Faster travel, Acme Thread handwheel screw
- The larger capacity frame allows repairs in tires thru the 12:00 cross-section.
- High-performance heat units feature platen mounted preset (European approved) thermostats which reduce the heat-up time from 15 minutes to 5 minutes.
Specs:
Throat depth: 6-14/4 inThroat height A: 9-3/4 in
Throat height B: 15-3/8 in
Curing heads: (2) 3-5/16 in Dia (115V. Or 230V.)
Includes:
T118: FrameT129: Mounting bracket
T039: Upper heat unit
T038: Lower heat unit
T115: Pressure Screw
T123: Thermostat for 3 in HU
T124: Element for 3 in HU
