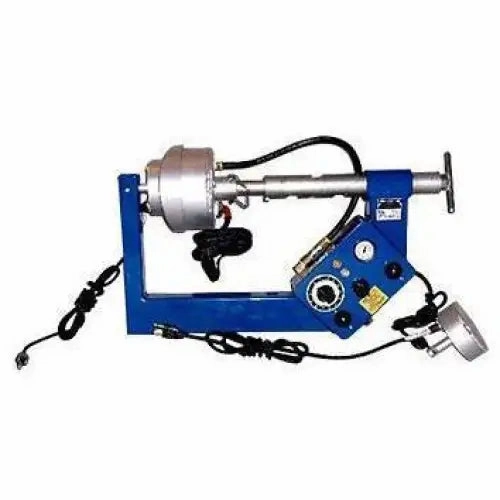

The all-new Model MT (T022) air-operated vulcanizer is the latest generation in repair equipment. Now repair the tread, shoulder, and sidewall areas of medium-sized (8:25 through 12:00) truck tires with one vulcanizer.
Features:
- Patented piston/pad airhead produces professional-looking sidewall repairs unequaled in the industry.
- Tread and shoulder areas are solidly repaired with constant pressure provided by contour plates and a spring-loaded compensating system.
- The heat from both sides of the tire offers maximum repair efficiency.
- Optional stand (T031) supports tire-on roller assembly for rotationthe horizontal orientation of the spotter from the repair area.
- Contour plate set T155 contains five plates (T086. T087, T130, T131, T134) is required.
- Available in 120 volts or 240 volts.
Specs:
Curing head size: 6 inNo. curing heads: 3 ea.
Throat depth: 8 in
Throat Height: 19 in
Includes:
T192: Detent pinT226: Frame
T227: Plunger
T228: Spring
T229: Inside heat unit extension shaft
T230: Telescoping assembly
T057: Contour up silicone rubber heat pad (6 in diameter)
T060: Heat units - 4 in (2)
T063: Silicone rubber seal (6 in diameter)
T064: Steel air cylinder with contoured lip
T121: Detachable electrical cord for T057
T277: Air hose with fittings
T280: Panel Mount Air Gauge
T281: Circuit Breaker
T274: Humphrey Valve
T220: Pilot Light
T119: Regulator Low Pressure
T145: Thermostat for 4 in HU
T125: Element for 4 in HU
T132: 1 Hour Timer
