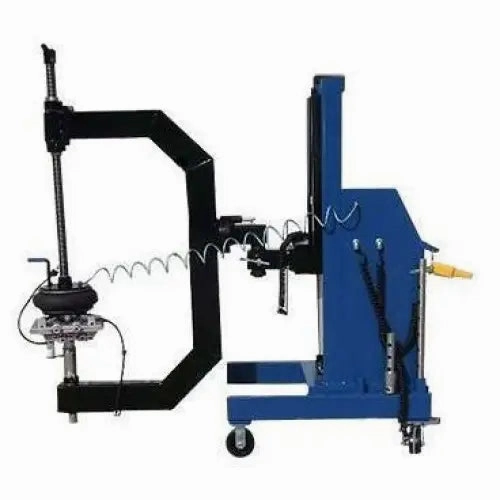

The OTR - Vulcanizer from L.M.C. Van's makes giant tire repairs for a fraction of the replacement cost of the tire.
Features:
- Easy to use - requires only one operator
- Accommodates a wide range of tires from 20.5 x 45/65 x 45
- The remote - control air cylinder raises and lowers the vulcanizing unit.
- Shipped fully assembled
- Thermostatically - controlled Adjust - A - Plates conform to tires contours.
- Air - actuator bag applies consistent pressure across the repair area.
- Capable of curing large repairs.
- Four swivel casters for easy rotation, maximum mobility.
- Twelve - hour timer -shuts heat unit off when the curing cycle is complete.
- Extension shafts supplied to accommodate various tire sidewall depths.
- Available in 120 volt - 15 amps.
Specs:
Contour plate size: 2 - 12in x 15in, 1 - 8in x 10inNo. curing heads: 3ea.
Air pressure: 125psi
Throat Depth: 26in
Throat Height: 44in
