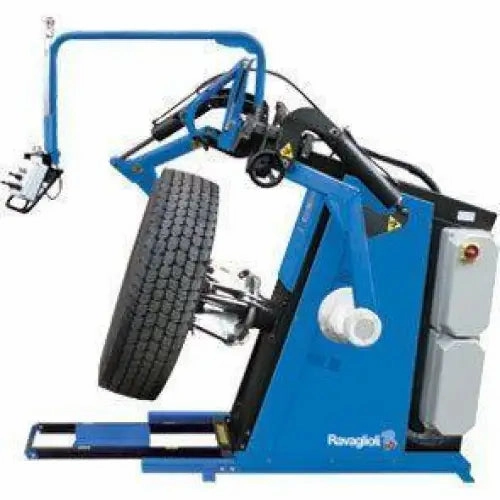

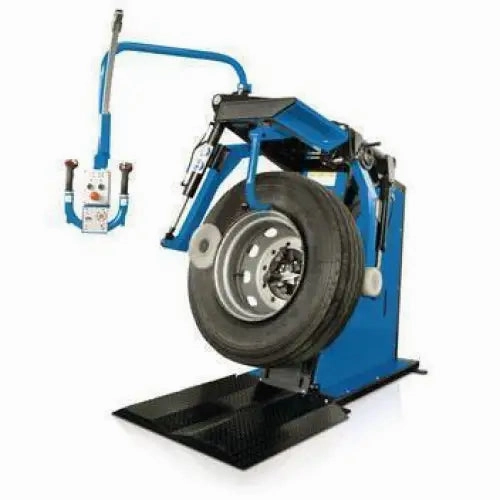

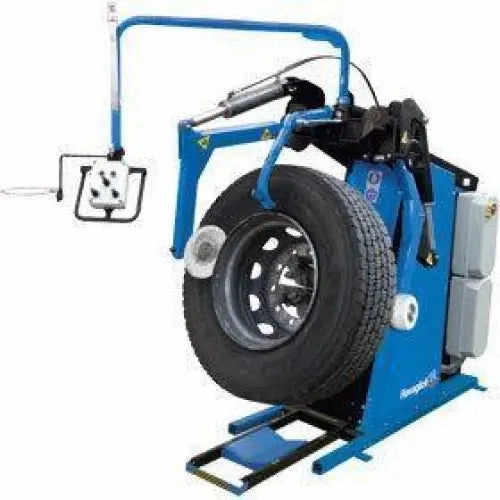

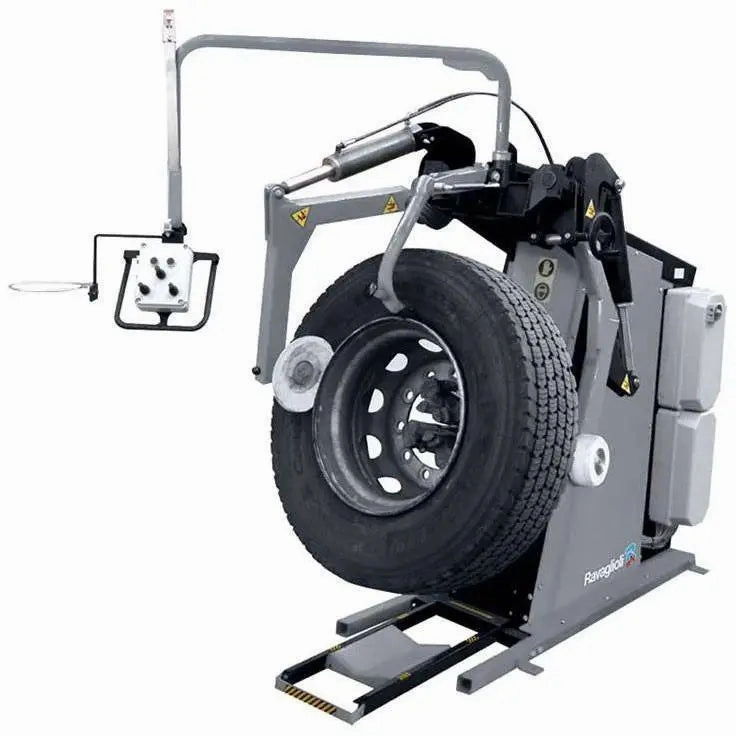

A new concept in truck tire changing, specially designed for tubeless tires. Extremely fast with simultaneous bead loosening operation. Four bead breakers make fast and simple work of mounting and demounting. Improve your efficiency up to 50% compared to other machines. 3 HP gearbox motor runs 220V 3 phase power. This machine can also handle super singles.
Features:
- World's fastest truck tire changer
- Improves shop efficiency up to 50% when compared to other machines
- Four bead breakers make mount/ demount operation simple
- Can handle up to 24.5in diameter tires
- Handles Super Singles
Specs:
Maximum Tire Diameter: 24.5 inMinimum Wheel Diameter: 17 in
Gearbox motor: 3 HP
Max. diameter central hole: 11 1/2 in (288 mm)
Min. diameter central hole: 3 1/2 in (85 mm)
Power Supply: 3ph - 220V
Rotating Speed: 10 rpm
Dimensions: 71 in x 36 in x 75 in (1800 mm x 910 mm x 1900 mm)
Application:
PassengerLight Truck
Heavy Duty
Commercial (Including Super Singles)
