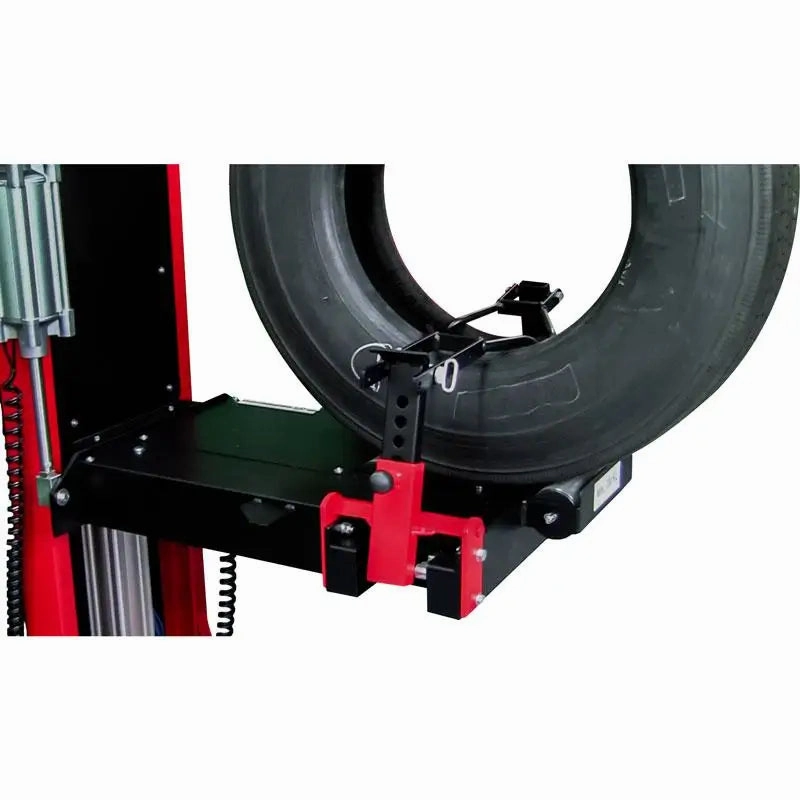

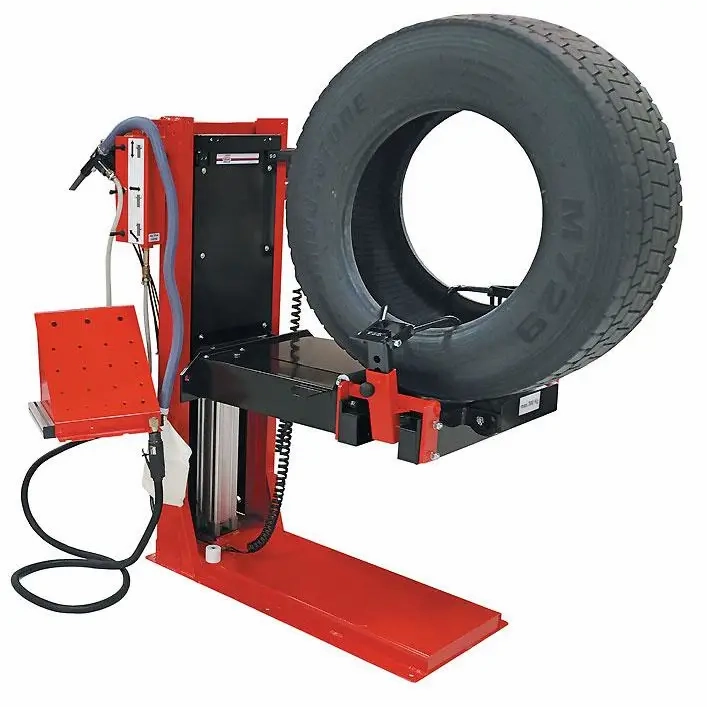

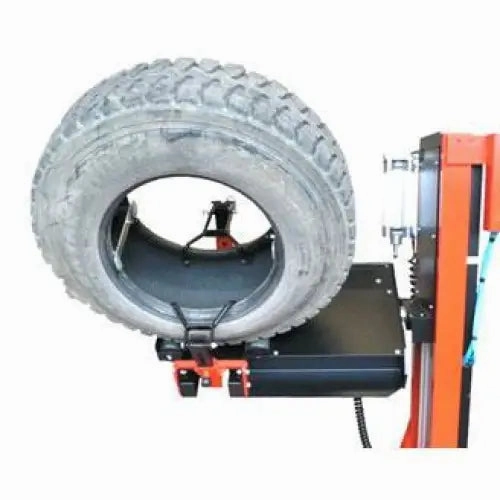

German Designed Tire Spreader for Retreaders & Commercial Facilities.
Features:
- Greater Lift Capacity with minimum dimensional footprint.
- Handles tires sizes from Passenger, Truck, Ag and small OTR.
- Tilt function for operator comfort
- Controls/Pneumatic Cylinder can be installed/mounted on either side permitting the Technician to efficiently maximize the table tilt feature.
Specs:
Tire Size: up to 62.5in diameter tiresLifting Capacity: 660 lbs.
Spreader Table Max. Height: 34.5in
Spreader Table Roll-on Height: 11in
Spreader Table Tilt Range: 0 to 40 degrees
Operating Pressure: 145 PSI
Machine Weight: 507 lbs.
Dimensions: 54.3inL x 31.5inW x 59inH
Spreader Table:
Max. Height: 34.5inRoll-on Height: 11in
Table Tilt Range: 0 to 40 degrees
