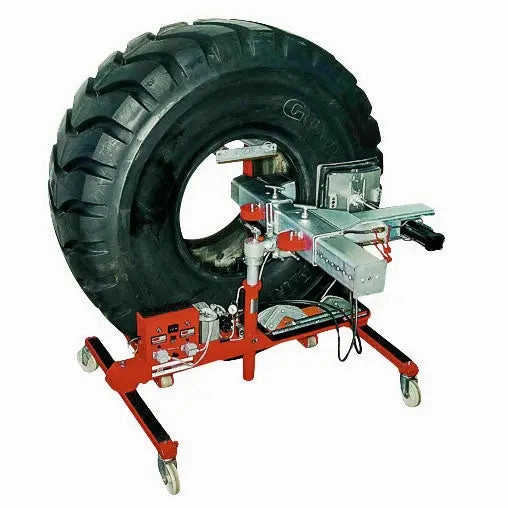

Rema Tip Top Thermopress Vulcanizing Machine is engineered to repair injuries in the tread, shoulder, and sidewall of radial and bias-ply tires on the truck, agricultural, and OTR/EM tires using Rema Tip Top OTR/EM repair patches.
Features:
- Upperparts of frame zinc-plated
- Electronic temperature controller with display
- Electronic temperature control with digital temperature display for each heating plate
- Electronic curing time control, from 0 to 99 hours

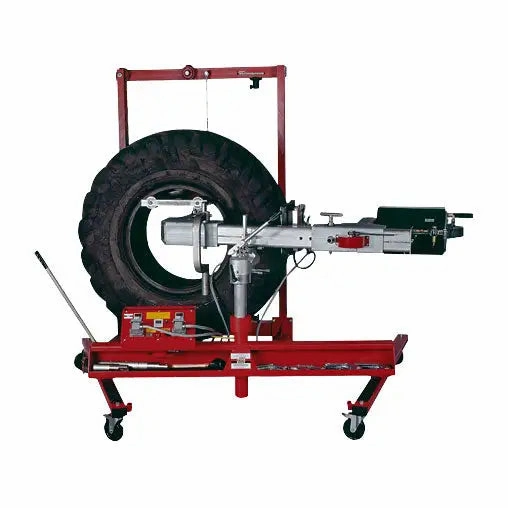

EM I:
- EM tire up to 33.25-35
- Pneumatic pressure system

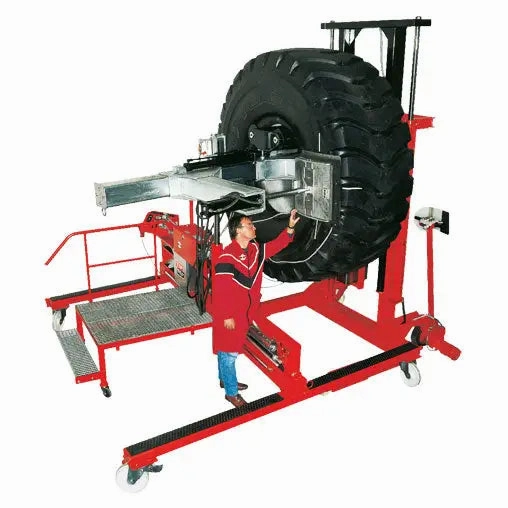

EM II:
- EM Tire up to 30.00-51
- Electro-hydraulic pressure system
- Built-in tilting and swiveling mechanism
*Note: Truck tire adapters are not included in delivery
EM I:
Item No: 6580
Electric Power /Connection: 230V
Operating Pressure: 4-8 bar
Pressing Power: 3t
Curing Temperature: 175C
Length: 100in
Width: 83in
Height: 46in
Weight: 595 lbs
EM II:
Item No: 6575
Electric Power /Connection: 230V
Operating Pressure: 160bar
Pressing Power: 6t
Curing Temperature: 175C
Length: 102in
Width: 98in
Height: 46in
Weight: 1012 lbs
Item No: 6580
Electric Power /Connection: 230V
Operating Pressure: 4-8 bar
Pressing Power: 3t
Curing Temperature: 175C
Length: 100in
Width: 83in
Height: 46in
Weight: 595 lbs
EM II:
Item No: 6575
Electric Power /Connection: 230V
Operating Pressure: 160bar
Pressing Power: 6t
Curing Temperature: 175C
Length: 102in
Width: 98in
Height: 46in
Weight: 1012 lbs
Includes:
1 x Movable undercarriage1 x Energy block
1 x Frame
Slip-on contour segments
1 x Manual
EM I:
2 x Pressure plates
1 x Thermopress heating plate No. 1
1 x Thermopress heating plate No. 2
EM II:
3 x Pressure plates
1 x Thermopress heating plate No. 2
1 x Thermopress heating plate No. 3
