Made in USA

• 1/4" ball shank quick changeVix-Bit style
• Excellent for pre-drilling holes for hinges & hardware - Precise & accurate drilling
• For #2, #3, & #4 screws
• Spring loaded casing
• Set-screw on bit enables adjustable drill depth
• Drill guide bevelled tip is hardened

•

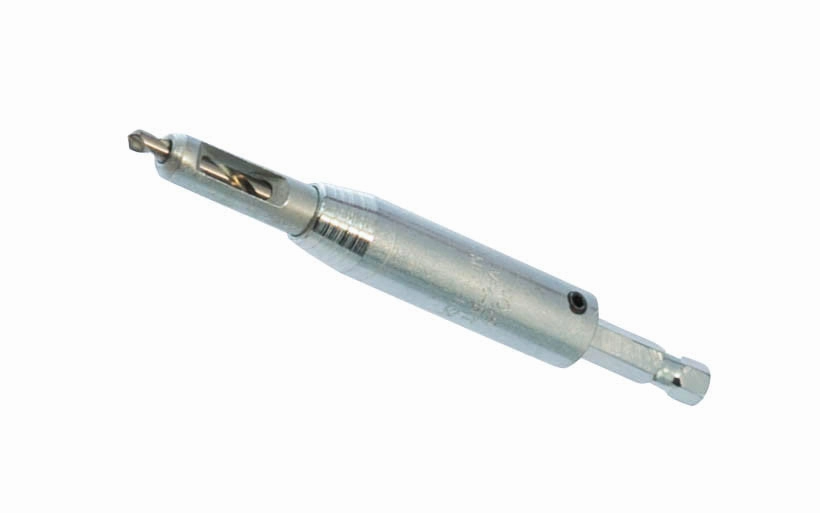

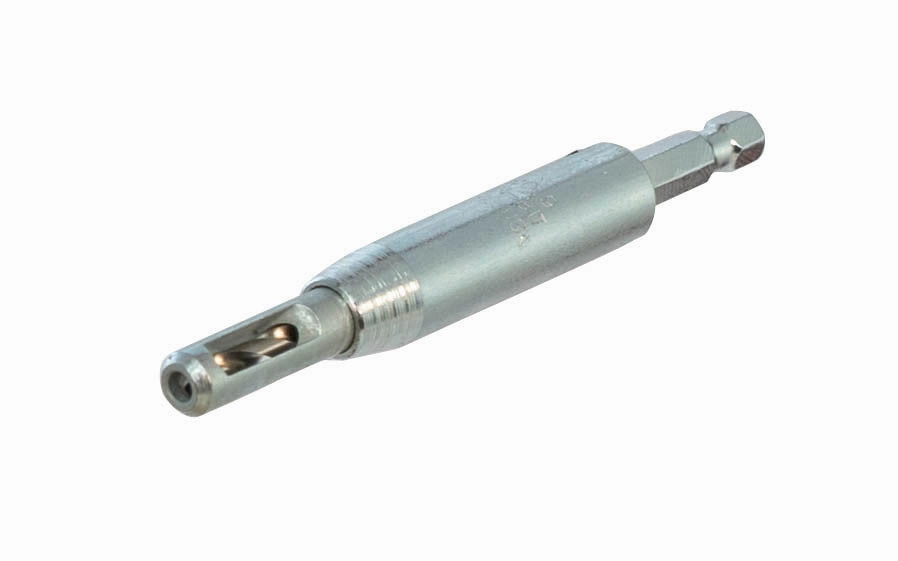

  This spring loaded self-centering drill bit is perfect for precise easy drilling in hardware. The bevelled tip on these Vix-Bits align in the countersunk hole of the hardware & provide an accurate & precise center-drilled hole for the corresponding screws. The drill depth is also adjustable to a specific depth, due to the set-screw on the side of the Vix-Bit. The drill bits will work in a number of materials including wood, metal, & plastics. These self-centering bits are a most handy tool especially when working with hardware. Quick change shank.

  From the Manufacturer:

  Sam Vick, a carpenter & building contractor, was looking for an easier way to install hinges, window latches & hardware using screws. He invented a self-centering drill bit that ensured a perfectly centered hole every time. The Vix-Bit became so popular with fellow carpenters that he formed S.E. Vick Tool Company in 1958.

• Product	For Screw Sizes	Drill Bit Diameter	Overall Length	Model #
  Vix-Bit #3	#2, #3, #4	5/64"	3-7/16"	VIX-3564-VBHX
