Model # 12-138 (No. 9-1/2)
- 1-5/8" wide cutter blade
- Cutter depth is adjustable, resting at 20 angle
- A-2 steel cutter blade, excellent for edge retention

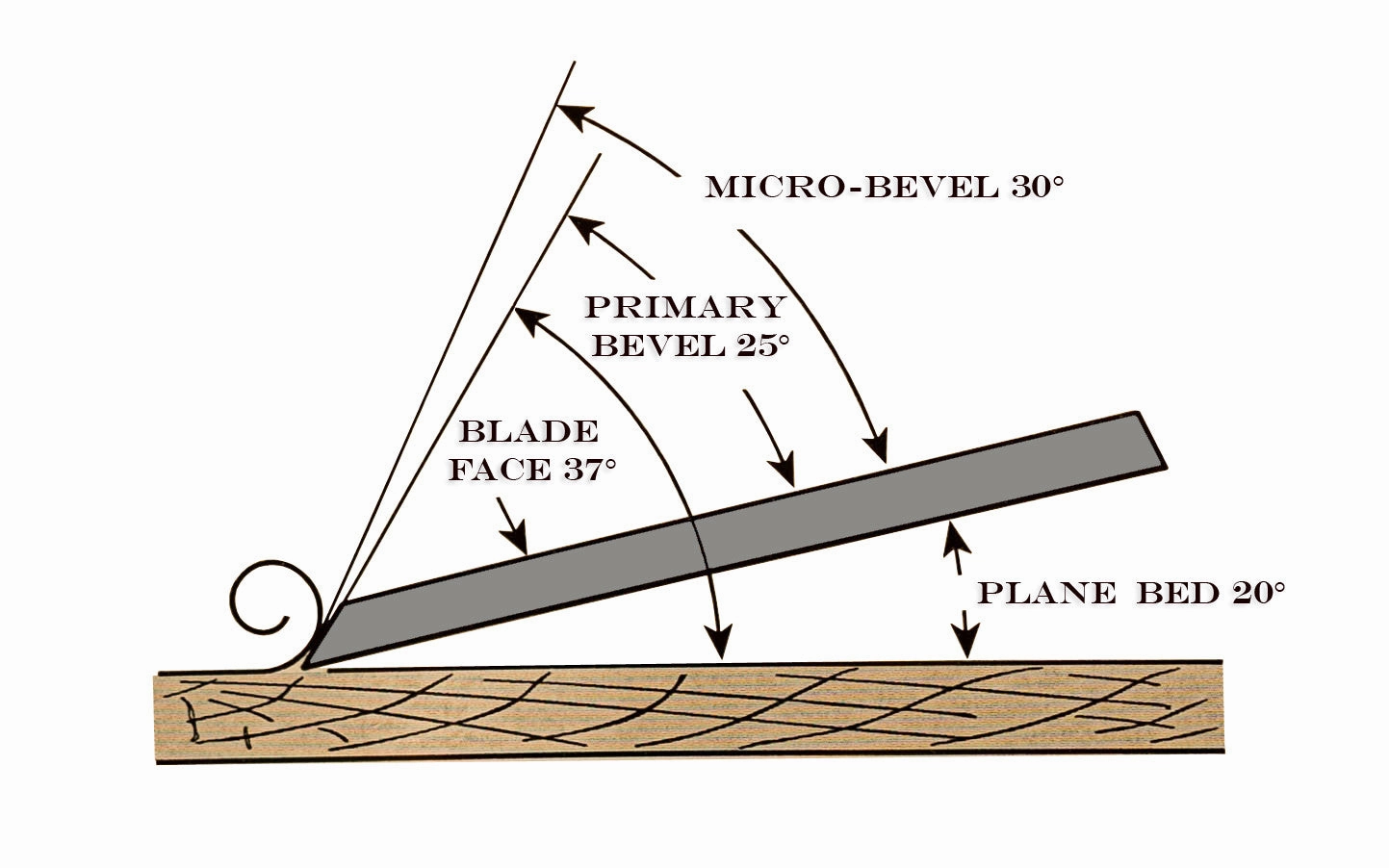

- Plane iron is 1/8" extra thick for reducing chatter, & is honed to a 25 angle, & micro-adjustable to a 30 angle
- Precision-ground & very smooth ductile iron base
- Extra heavy base & frog cast as one for stability & reducing chatter
- Norris-style adjustment with lateral lock for cutting accuracy
- Adjustable mouth to reduce tear out
- Solid brass turn knobs for smooth adjustments

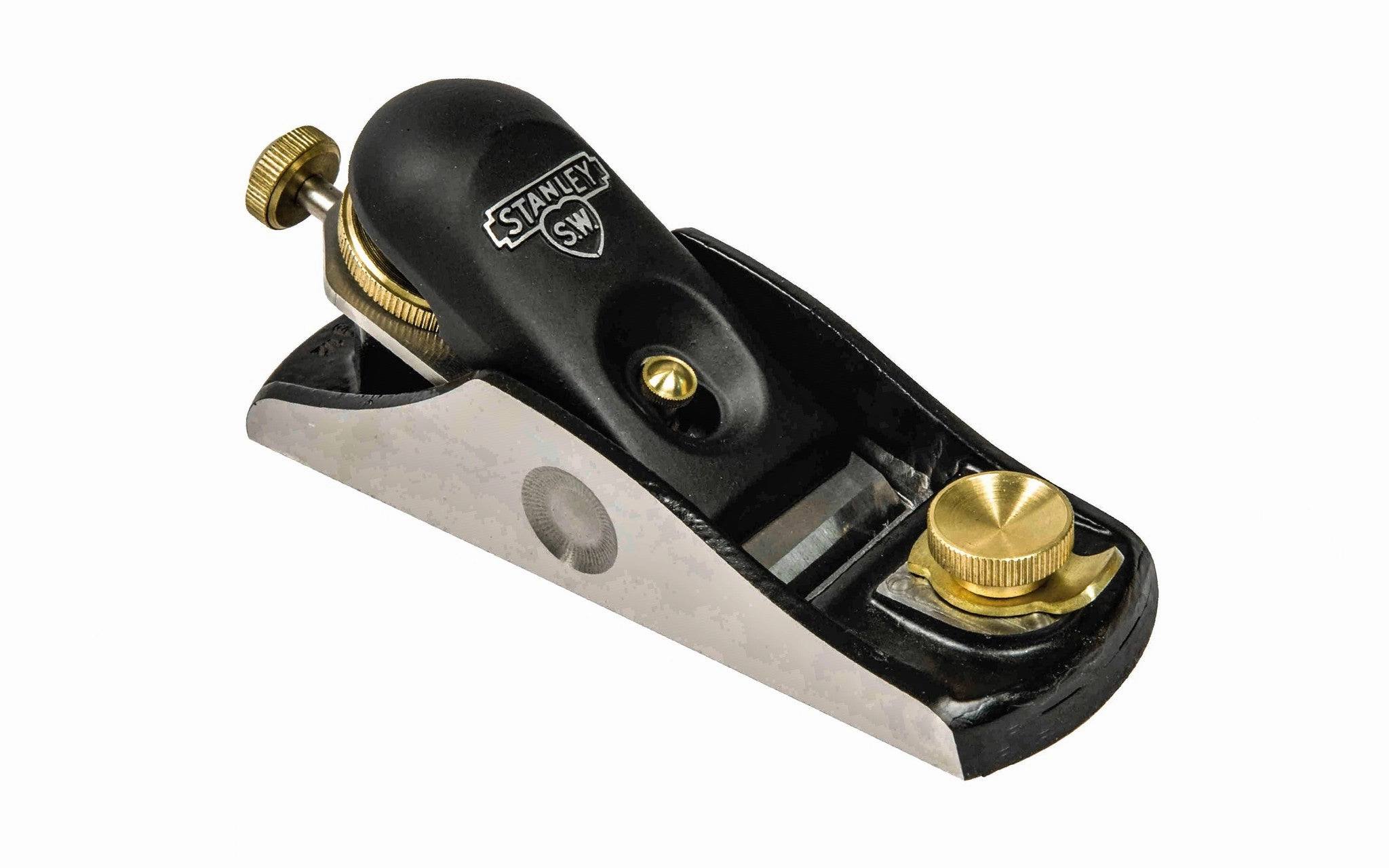

The Stanley Sweetheart Block Plane, a real quality & hefty block plane excellentfor general shaving of wood materials! The cutter blade rests at a 20 angle with the blade edge honed to a 25 angle, & is micro-adjustable to a 30 angle. It's rock-solid heavy construction provides great control, minimal vibration, & a very fine smooth finish. It has the Norris-style adjustment with a lateral lock for cutting accuracy. The plane also has finger grips machined in the sides for a nice & comfortable grip in your hand! A special & very popular plane! Note: Honing is recommended before use.
Product Title Blade Width Blade Thickness OverallPlane Length Overall Plane Width Model # Stanley Sweetheart Block Plane (9 - 1/2) 1 - 5/8" (41 mm) 1/8" 6 - 1/2" (165 mm) 2 - 1/8" 12-138
