Model # 12-139 (No. 60-1/2)
- 1-5/8" wide cutter blade
- Cutter depth is adjustable, resting at 12 angle
- A-2 steel cutter blade, excellent for edge retention

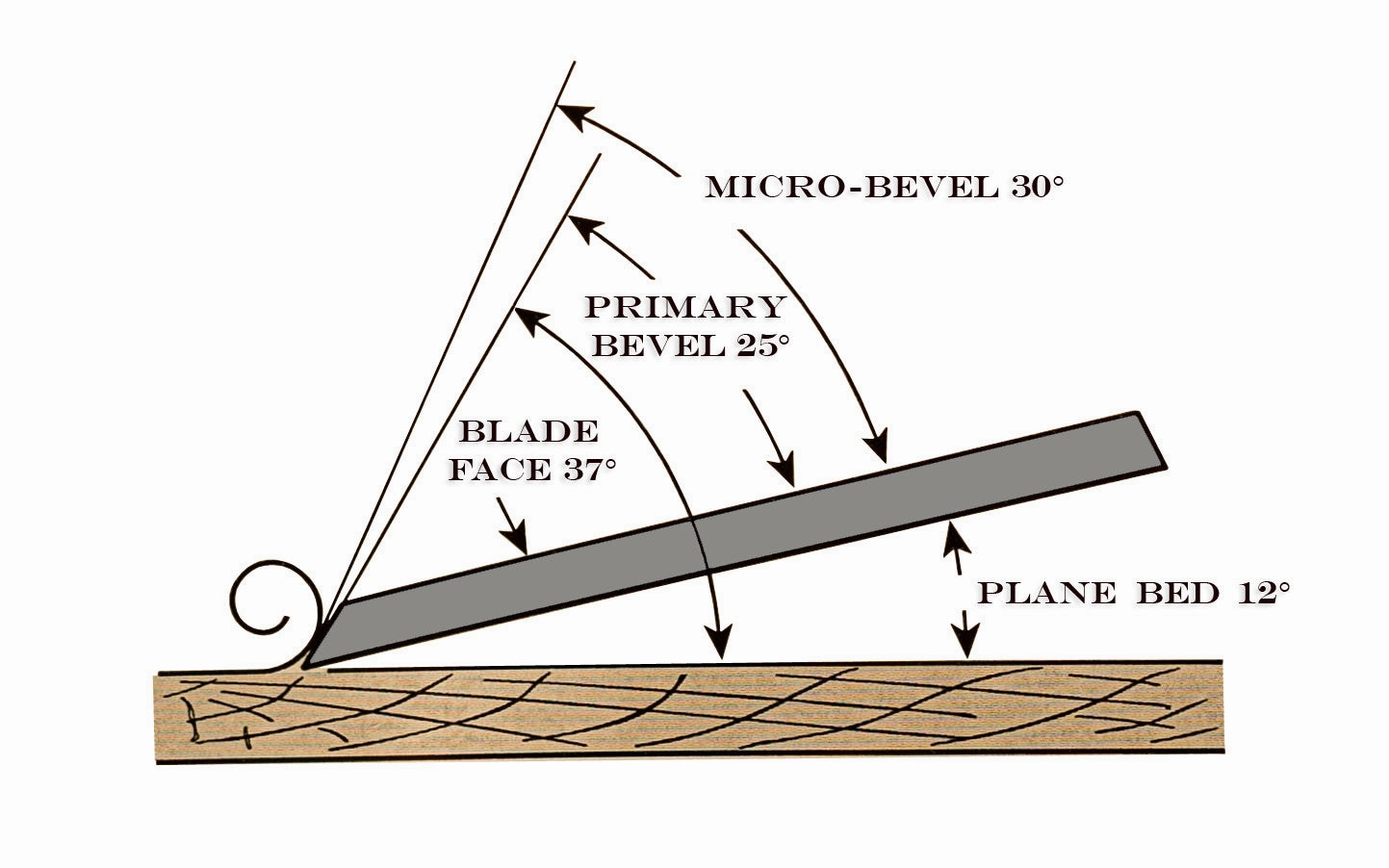

- Plane iron is 1/8" extra thick for reducing chatter, & is honed to a 25 angle, & micro-adjustable to a 30 angle
- Precision-ground & very smooth ductile iron base
- Extra heavy base & frog cast as one for stability & reducing chatter
- Norris-style adjustment with lateral lock for cutting accuracy
- Adjustable mouth to reduce tear out
- Solid brass turn knobs for smooth adjustments

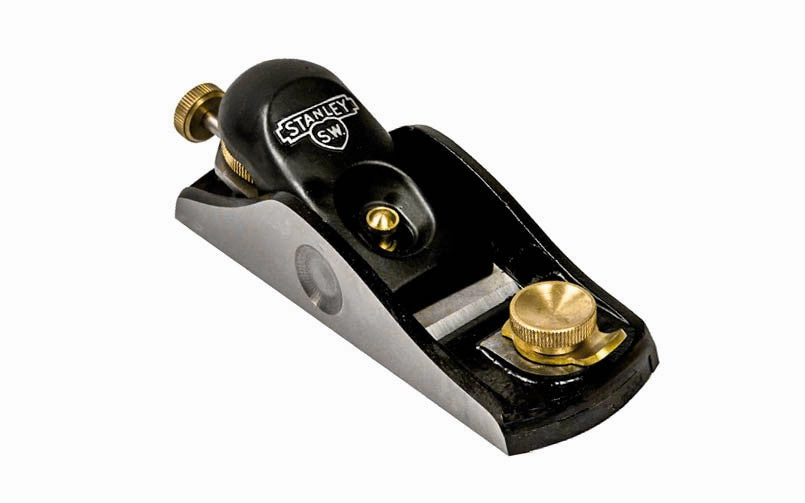

TheStanley Sweetheart Low Angle Block Plane, a real quality & heftyblock plane! It is an excellent plane for planing end grain on wood, & plastic materials as well.The cutter blade rests at a 12 angle withthe blade edge honed to a 25 angle, & is micro-adjustable to a 30 angle. It's rock-solid heavy construction provides greatcontrol, minimalvibration, & a very fine smooth finish. It has theNorris-style adjustment with a lateral lock for cutting accuracy. The planealso has finger grips machined in the sides for a nice & comfortable gripin your hand! A special & verypopular plane!Note: Honing isrecommended before use.
Product Title Blade Width Blade Thickness OverallPlane Length Overall Plane Width Model # Stanley Sweetheart Low Angle Block Plane (60 - 1/2) 1 - 5/8" (41 mm) 1/8" 6 - 1/2" (165 mm) 2 - 1/8" 12-139
