General Information
Brand
Wera
Number of Pieces
23
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288234261
California Residents
Part Number
05006633001
Product Type

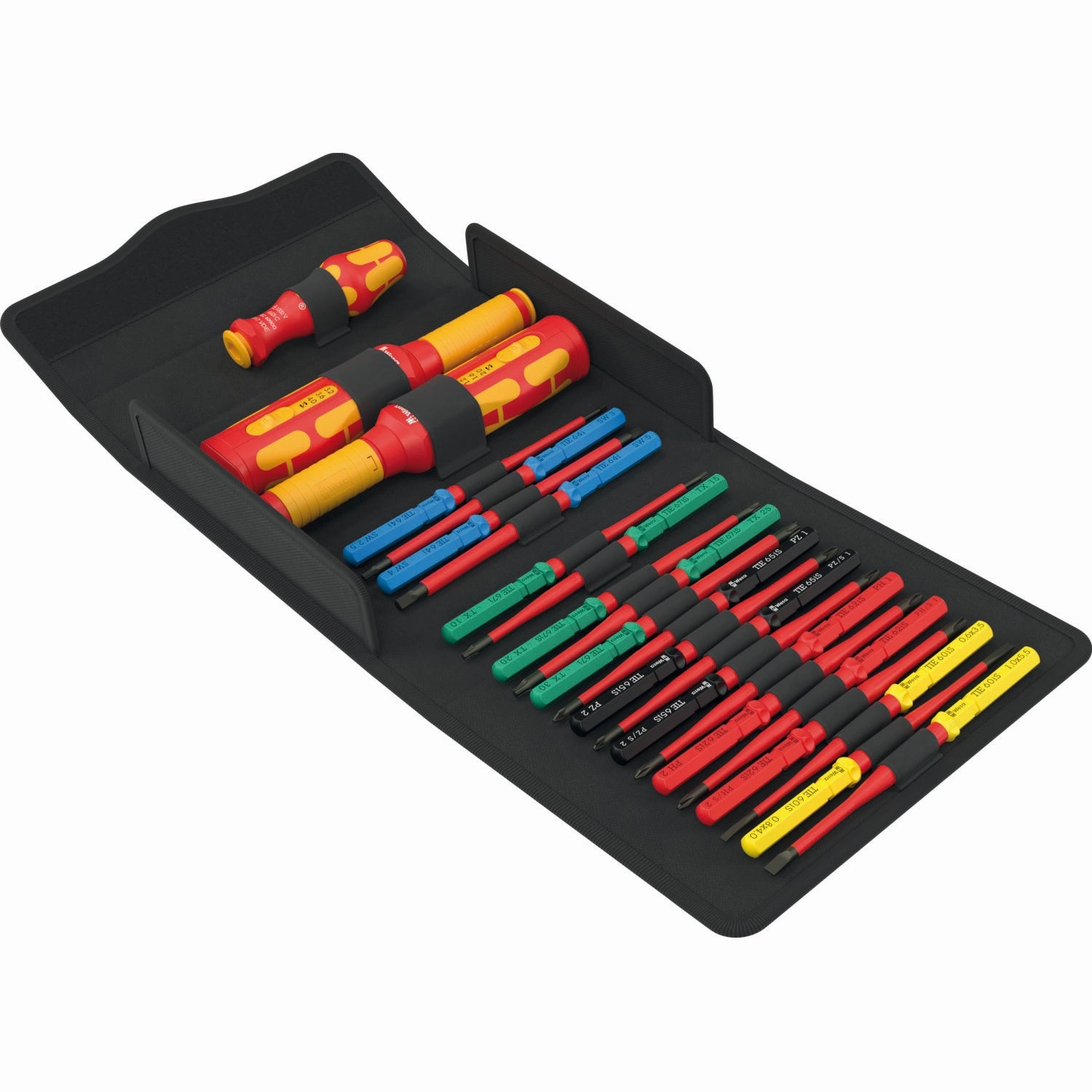

Insulated Torque Screwdriver & Blades
Physical Characteristics
Length
8.31" (211 mm)
Width
9.37" (238 mm)
Height
2.28" (58 mm)
Weight
1.01 kg
2.22 lb
Color

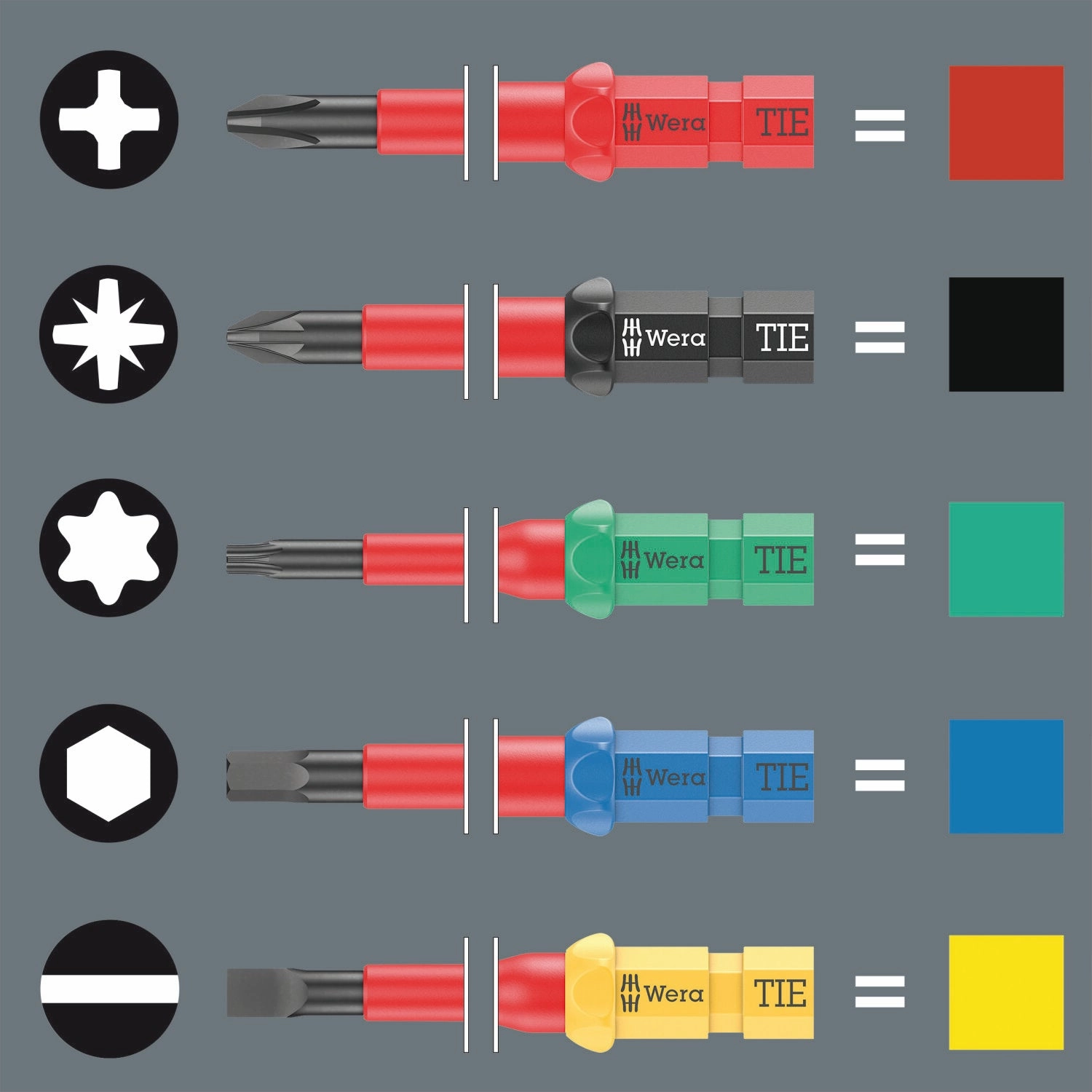

Red & Yellow, Color-Coded
Finish
Insulated
Material
Chrome Vanadium Steel
Details
Tip Type
Phillips, Pozidriv, PH/S, PZ/S, TORX, Slotted, Hex
Features
Individually tested tools as per IEC 60900

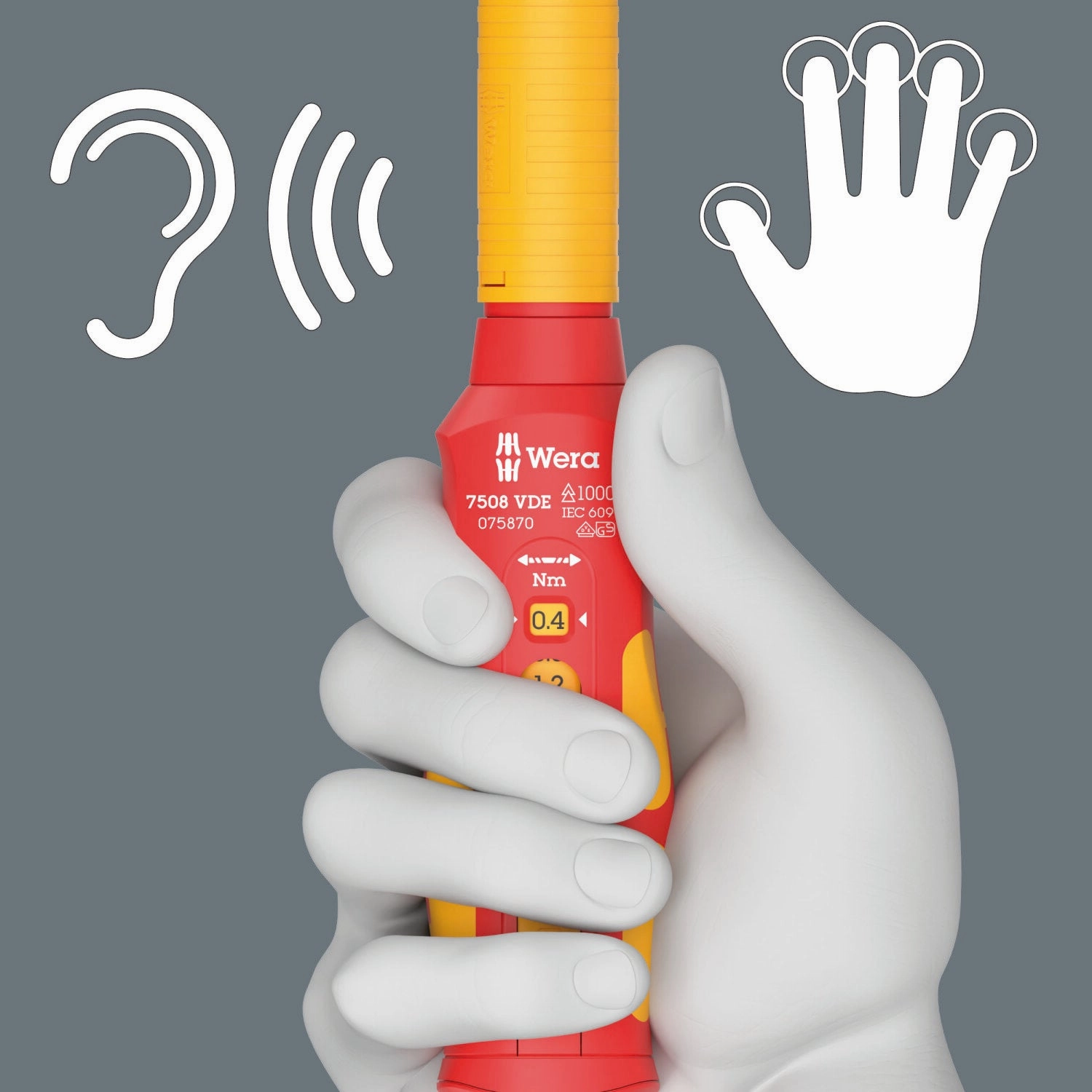

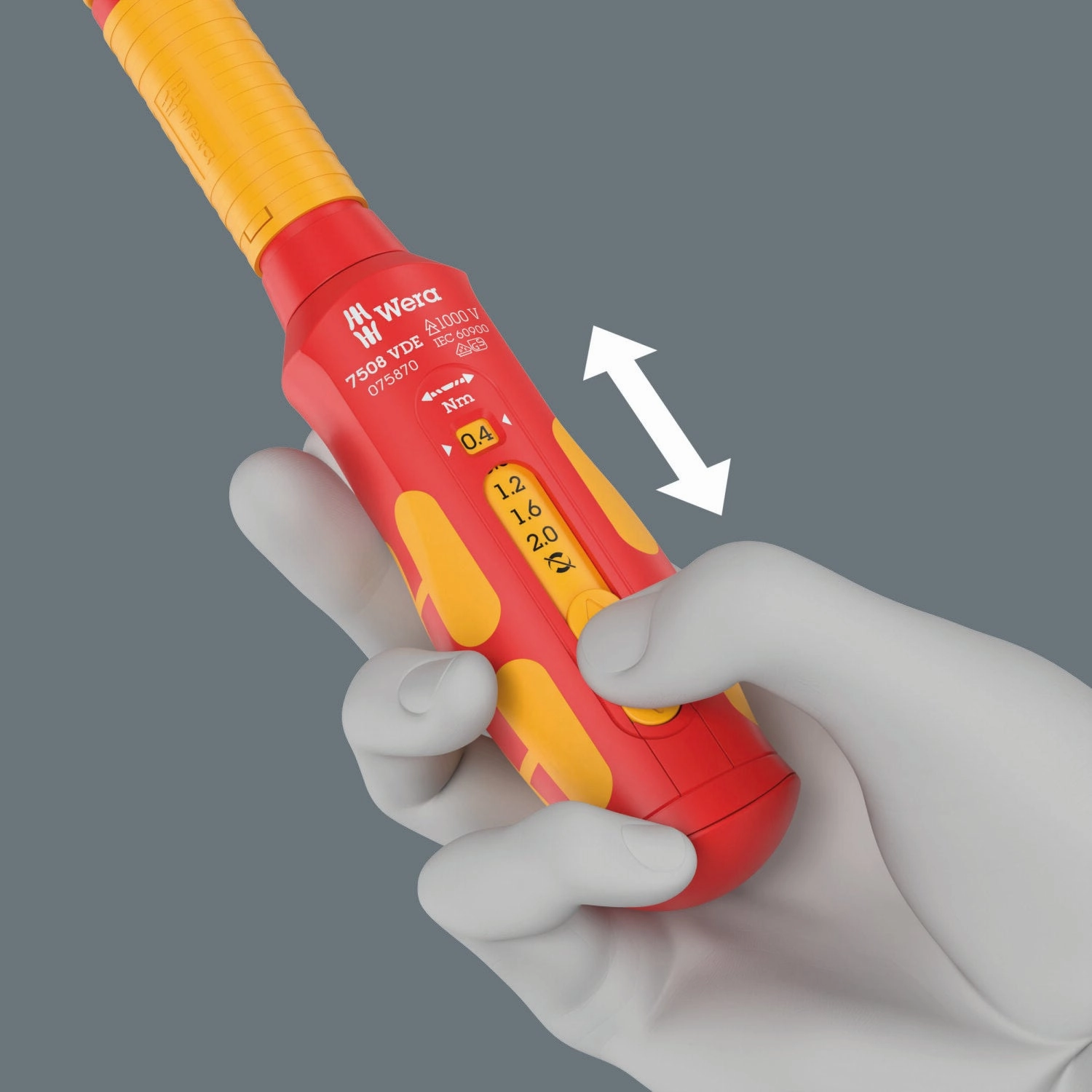

VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)
VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)
Speed: Extremely fast setting of desired torque values

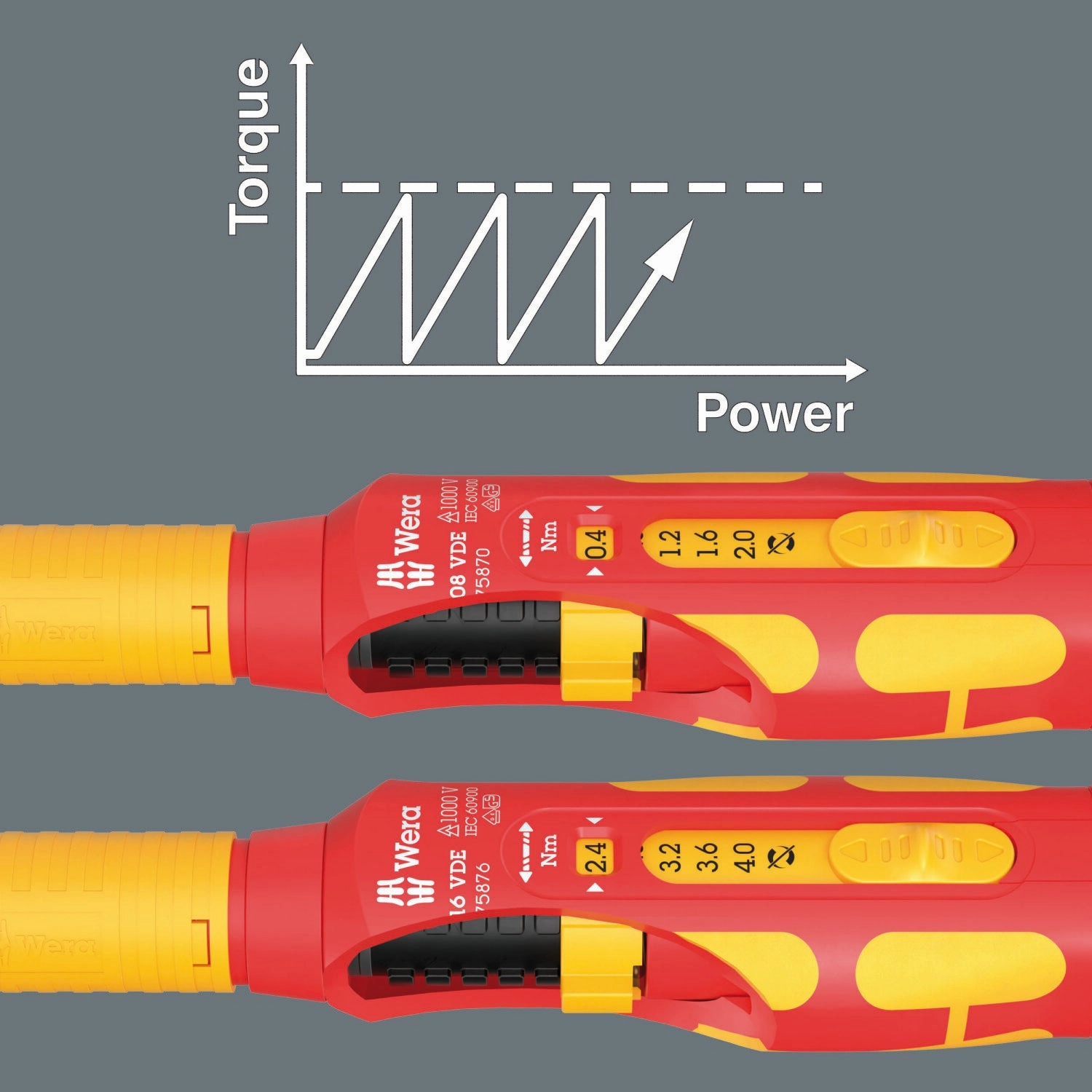

Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation
Torque Lock function: for high tightening and loosening moments without torque

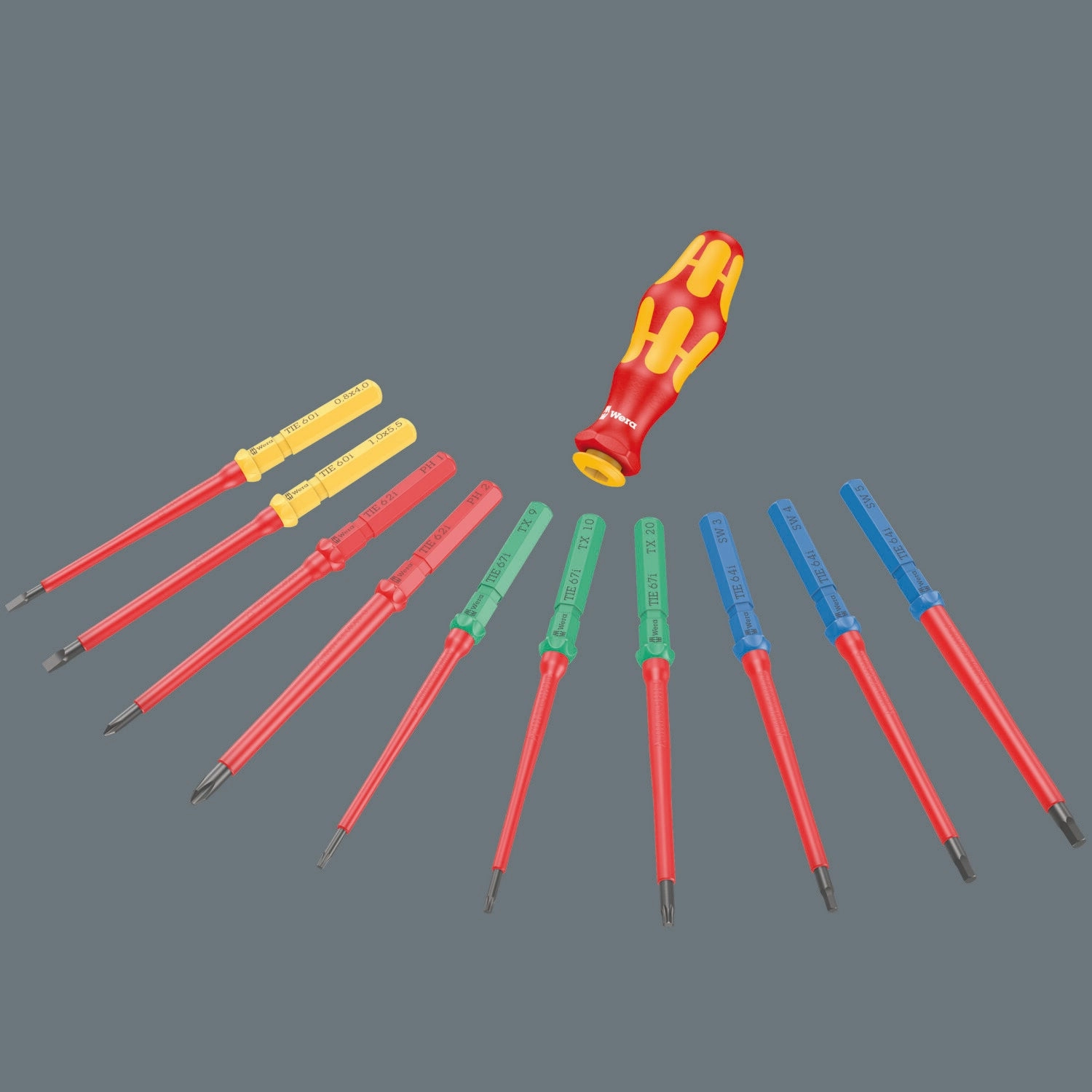

817 VDE handle for Kraftform Kompakt interchangeable blades
VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)
VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)
Speed: Extremely fast setting of desired torque values
Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation
Torque Lock function: for high tightening and loosening moments without torque
817 VDE handle for Kraftform Kompakt interchangeable blades
Size
7508 VDE Kraftform Safe-Torque Speed Torque screwdriver, 0.4-2.0 Nm: 9 x 0.4 Nm x 0.8 Nm x 1.2 Nm x 1.6 Nm x 2.0 Nm x 192 mm
7516 VDE Kraftform Safe-Torque Speed Torque screwdriver, 2.4-4.0 Nm: 9 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm
817 VDE Kraftform blade-holding handle: 9 x 98 mm
Kraftform Kompakt VDE 62 iS Take it easy:
PH1 x 157 mm
PH2 x 157 mm
Kraftform Kompakt VDE 65 iS Take it easy:
PZ1 x 157 mm
PZ2 x 157 mm
Kraftform Kompakt VDE 62 iS PH/S Take it easy:
#1 x 157 mm
#2 x 157 mm
Kraftform Kompakt VDE 65 iS PZ/S Take it easy:
#1 x 157 mm
#2 x 157 mm
Kraftform Kompakt VDE 67 iS TORX Take it easy:
T15 x 157 mm
T20 x 157 mm
T25 x 157 mm
Kraftform Kompakt VDE 67 i TORX Take it easy:
T10 x 157 mm
T30 x 157 mm
Kraftform Kompakt VDE 64 i Take it easy:
2.5 x 157 mm
3 x 157 mm
4 x 157 mm
5 x 157 mm
Kraftform Kompakt VDE 60 iS Take it easy:
0.6 x 3.5 x 157 mm
0.8 x 4 x 157 mm
1 x 5.5 x 157 mm
7516 VDE Kraftform Safe-Torque Speed Torque screwdriver, 2.4-4.0 Nm: 9 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm
817 VDE Kraftform blade-holding handle: 9 x 98 mm
Kraftform Kompakt VDE 62 iS Take it easy:
PH1 x 157 mm
PH2 x 157 mm
Kraftform Kompakt VDE 65 iS Take it easy:
PZ1 x 157 mm
PZ2 x 157 mm
Kraftform Kompakt VDE 62 iS PH/S Take it easy:
#1 x 157 mm
#2 x 157 mm
Kraftform Kompakt VDE 65 iS PZ/S Take it easy:
#1 x 157 mm
#2 x 157 mm
Kraftform Kompakt VDE 67 iS TORX Take it easy:
T15 x 157 mm
T20 x 157 mm
T25 x 157 mm
Kraftform Kompakt VDE 67 i TORX Take it easy:
T10 x 157 mm
T30 x 157 mm
Kraftform Kompakt VDE 64 i Take it easy:
2.5 x 157 mm
3 x 157 mm
4 x 157 mm
5 x 157 mm
Kraftform Kompakt VDE 60 iS Take it easy:
0.6 x 3.5 x 157 mm
0.8 x 4 x 157 mm
1 x 5.5 x 157 mm
Grip Type
Kraftform
