Made in the USA W.L. Fuller
- Model No. 10390005 - No. 5Set
- 5-piece combination countersink & taper point drill setincludes wood block holder
- Countersinks included in set:C129 for #6 screws, C1211 for #8 screws, C102 for #10 screws, C12 for #12 screws
- Includes a 1/2" ID stop collar & 1/2" plug cutter

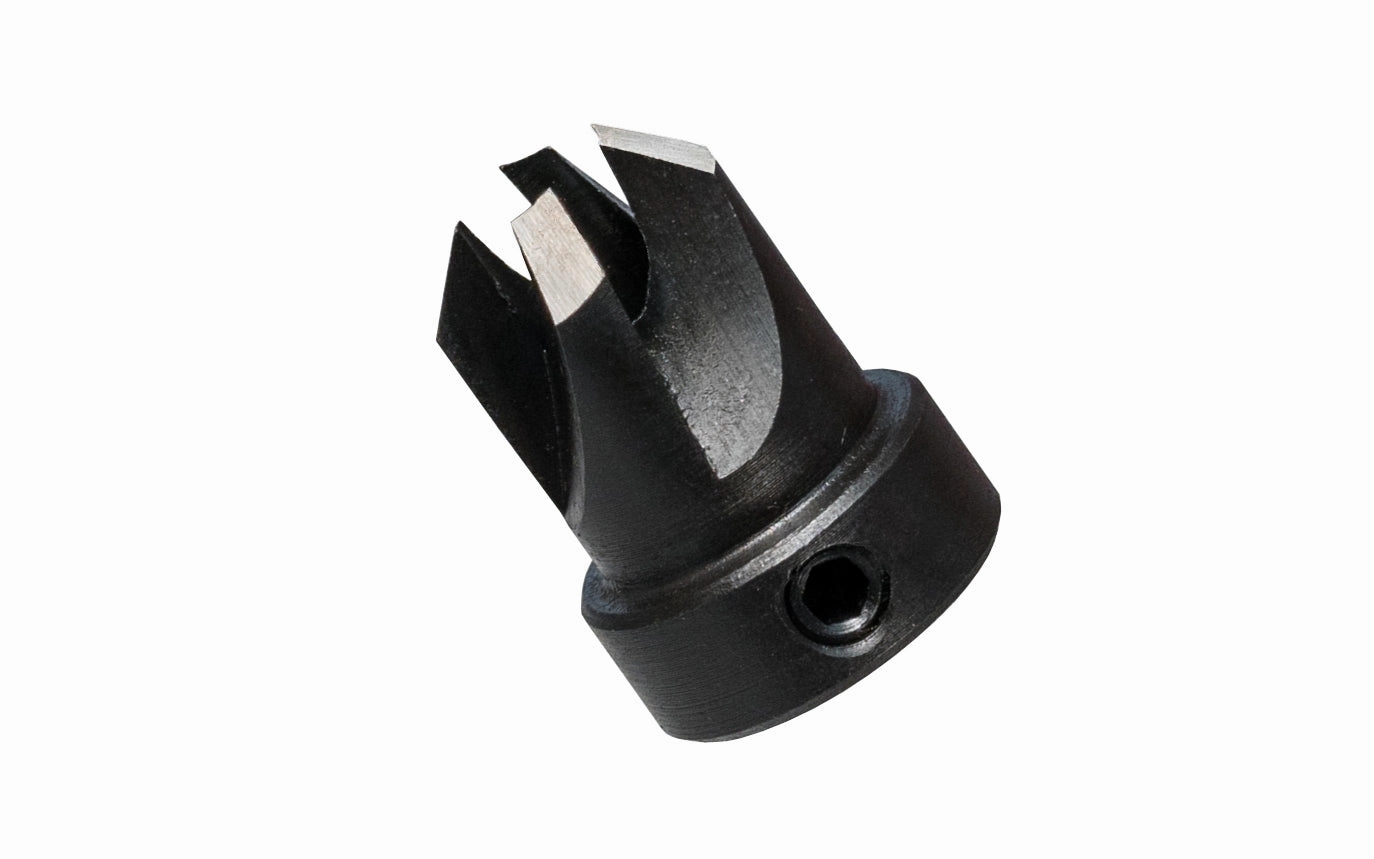

- Countersinksare made of carbon steel & heat-treated for long tool life
- Four flutes for clean & accurate boring - 82 cutting angle head
- For use in all woods&plastics

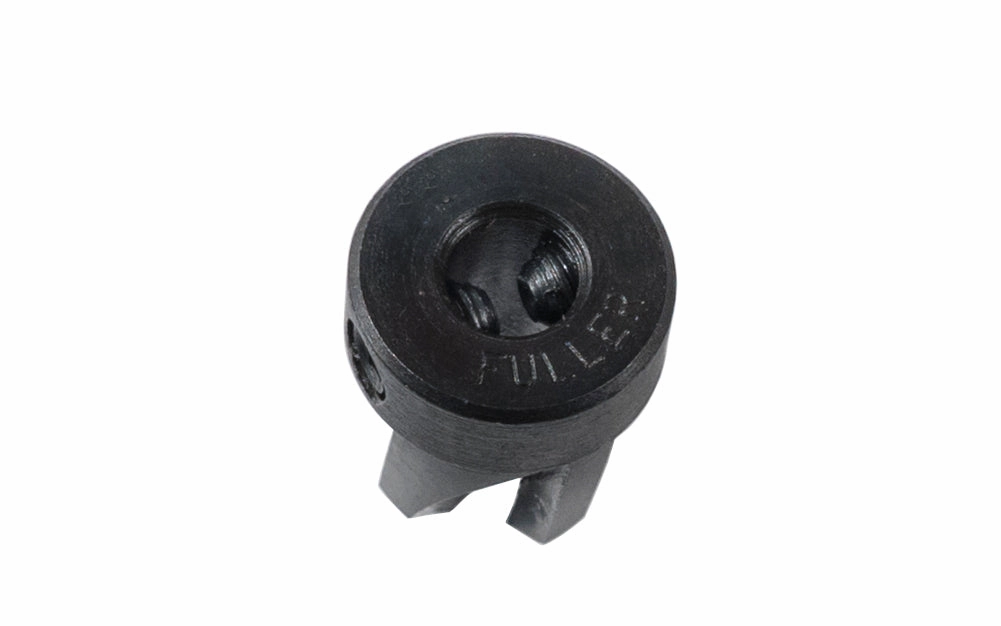

- Two hex-socket set screws in countersink

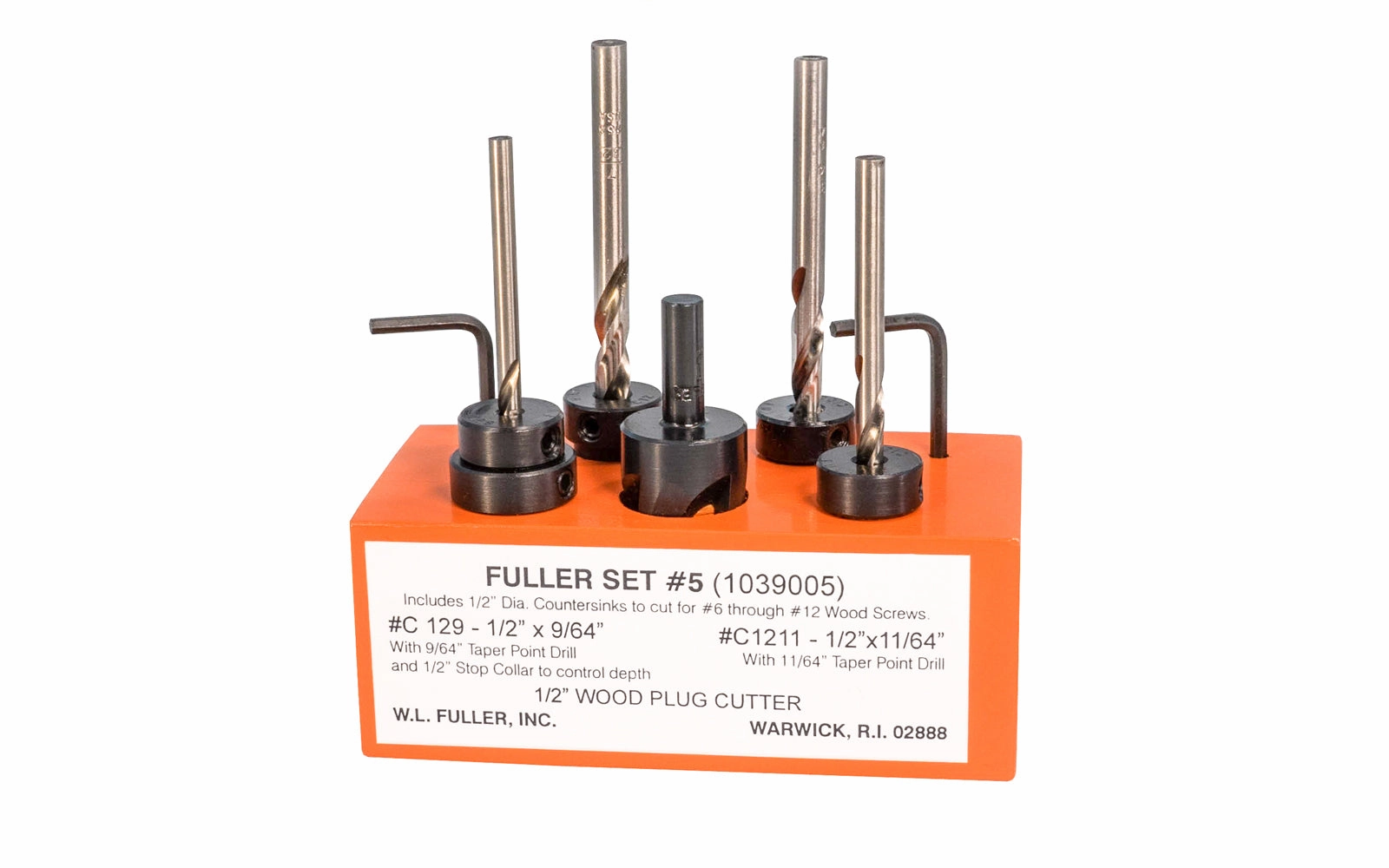

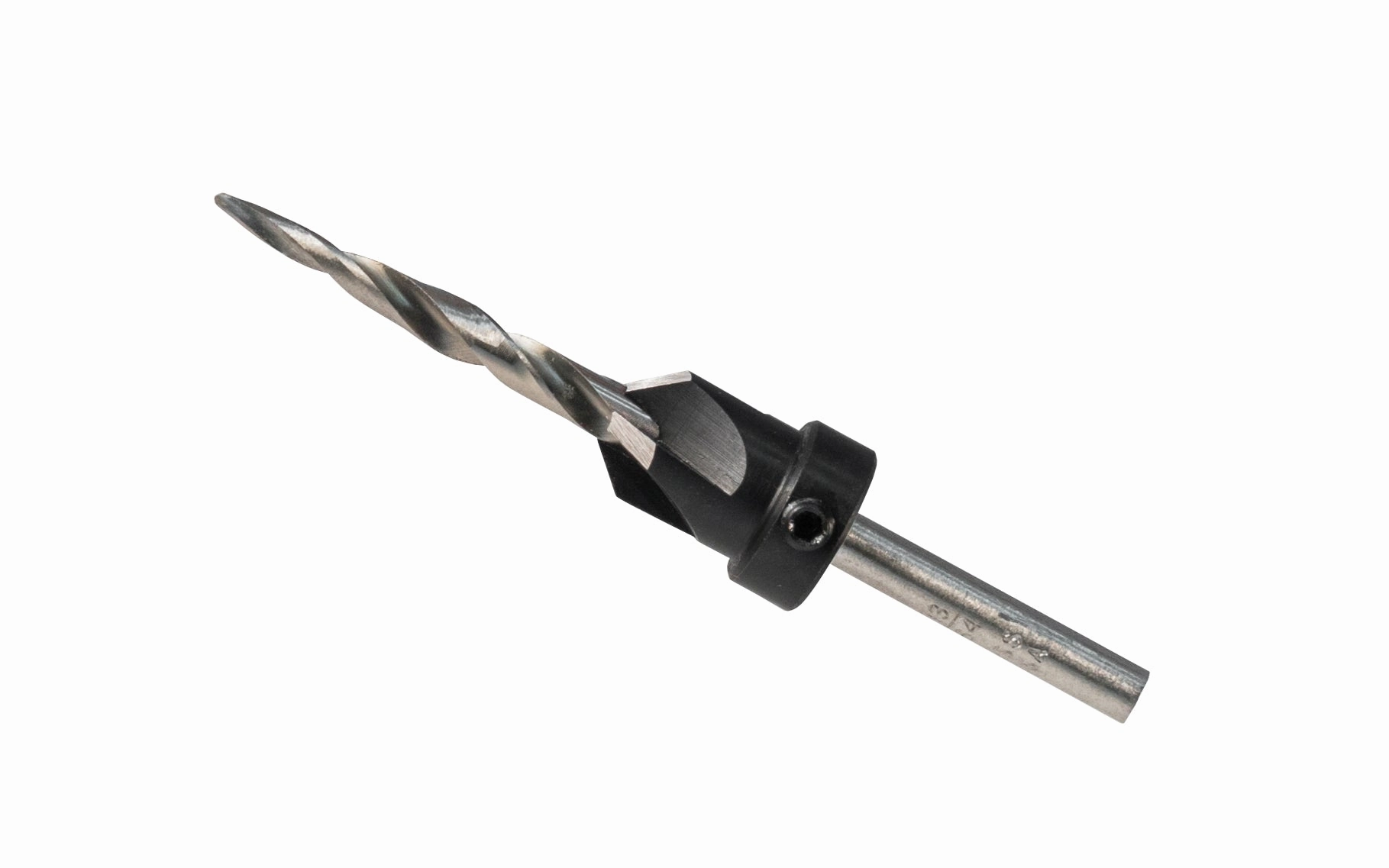

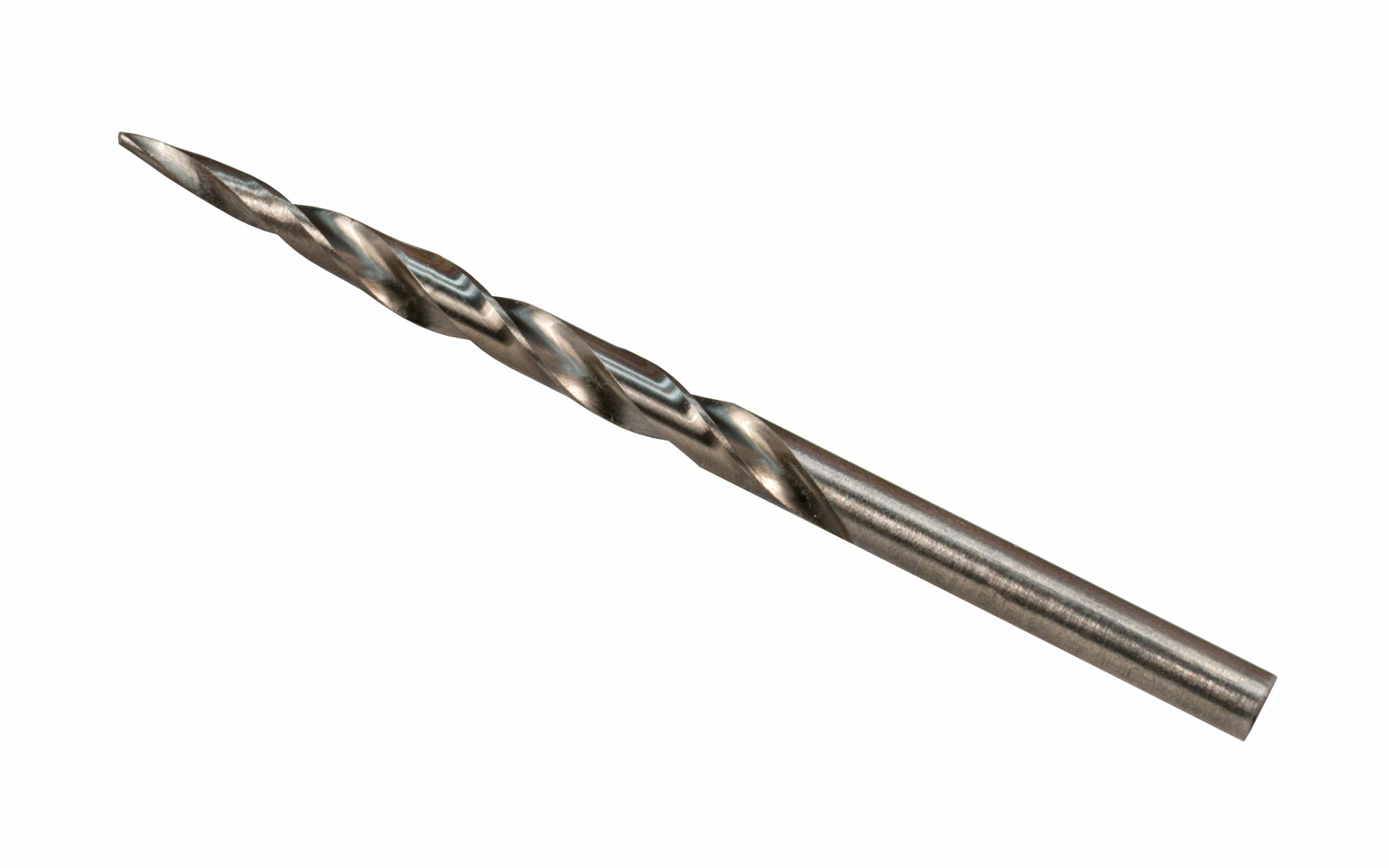

A high quality 5-piececountersink & tapered drill bitset made by WL Fuller. Countersinks with Taper Point Drills mounted in wood holder, with matching Stop Collar& Plug Cutter. To predrill for most all size wood screws from #6 thru #12 and cut your own wood plugs. Includes four Countersinks with 1/2 cutting diameter,one 1/2 inside diameter Stop Collar to control depth of cut, one 1/2 Plug Cutter with 1/4 shank, two hex keys to fit socket set screws &matching Taper Point Drills. Countersinks are made of carbon steel & heat-treated. This type C countersink is designed for use in all woods, plastics, & non-ferrous metals. It has four flutes for clean & accurate boring, & a standard 82 cutting angle which will accommodate most bevelled screws. The countersink is held in place with two hex-socket set screws fastened into the bit & is easily adjustable up & down the length of the drill bit if the need arises. Thecountersink maybe mounted on taper point, brad point & regular point drills.No. 5Set. Model 10390005. Made in the USA.
The W.L. Fuller Co. is a family owned, third generation manufacturer of the best countersinks, counterbores, plug cutters, taper point drills, brad point drills, & step drills. All made 100% in the U.S.A. today. With over 60 years experience manufacturing tools to cut woods, plastics, & metals, Fuller provides tools you need to get the job done while saving you time & money. All of their products carry their satisfaction guarantee.

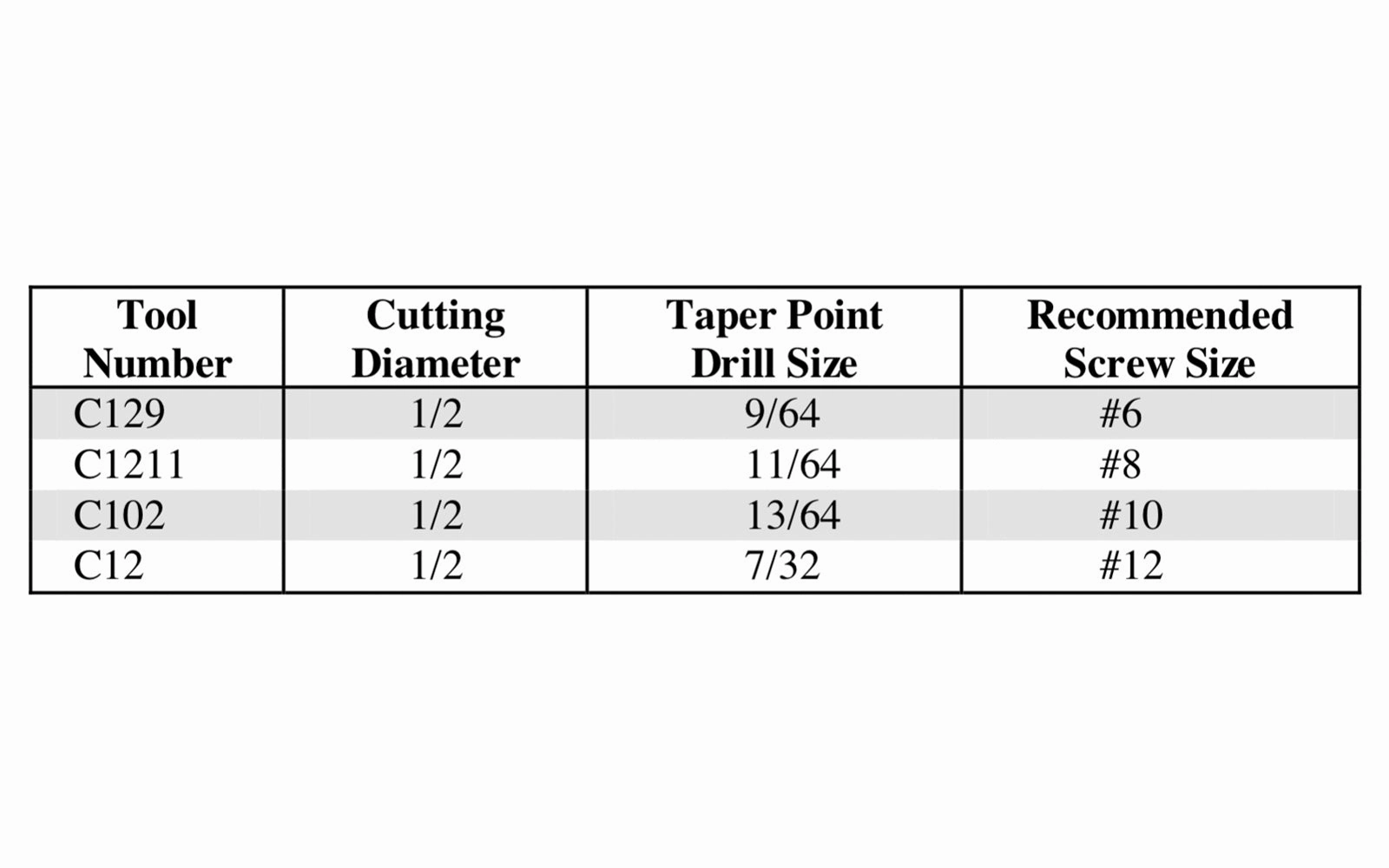

Countersinksin Set Cutting Diameter Drill Hole Size For Screw Size DrillBit Length #C129T 1/2" 9/64" #6 3-7/8" #C1211T 1/2" 11/64" #8 3-3/8" #C102T 1/2" 13/64" #10 3-5/8" #C12T 1/2" 7/32" #12 3-3/4"
