Made in the USA W.L. Fuller
- Countersink & taperedbit together with 1/4" ball hex shank
- Quick change

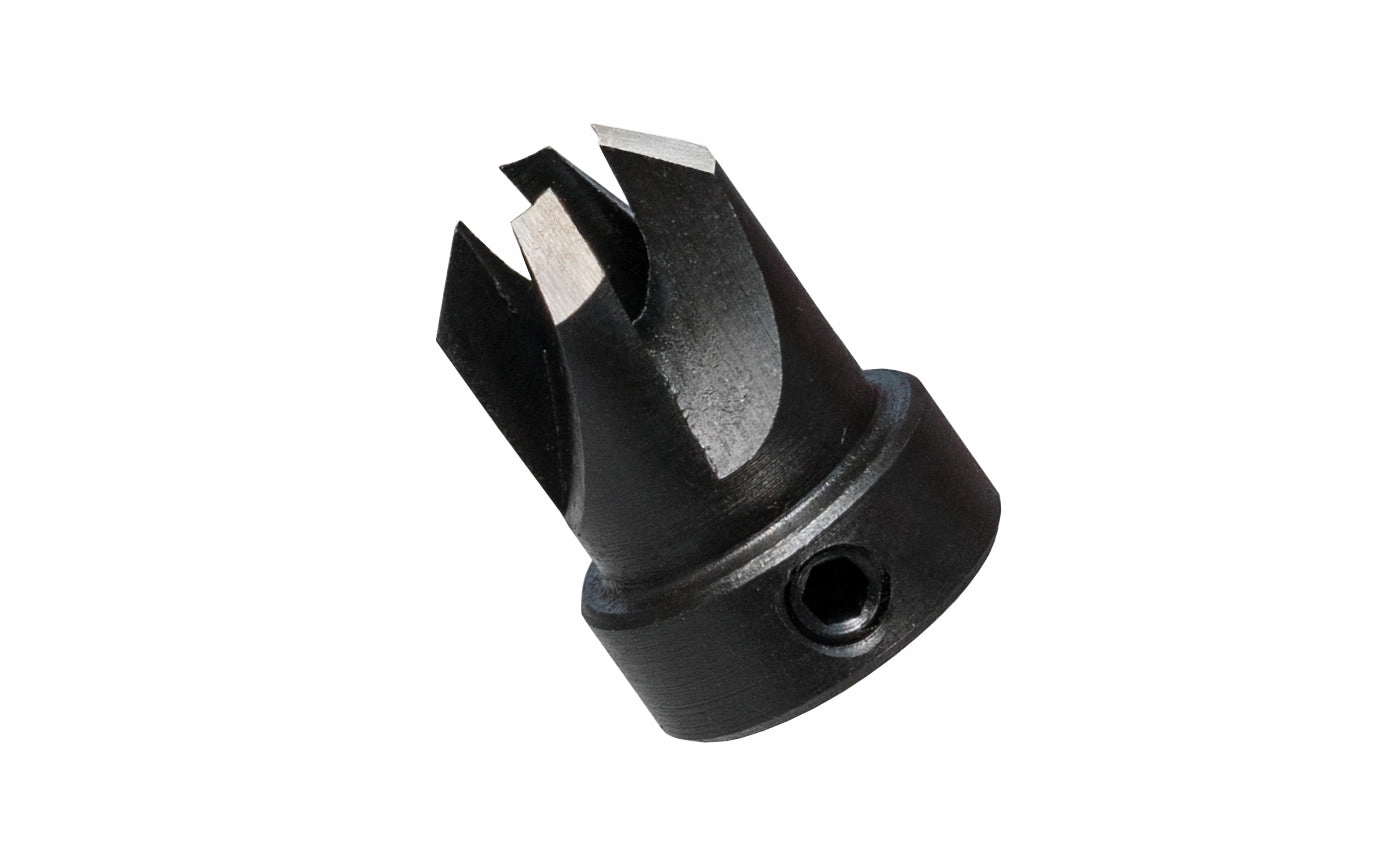

- Countersink is made of carbon steel & heat-treated for long tool life
- For use in all woods&plastics
- 82 cutting angle head
- Four flutes for clean & accurate boring

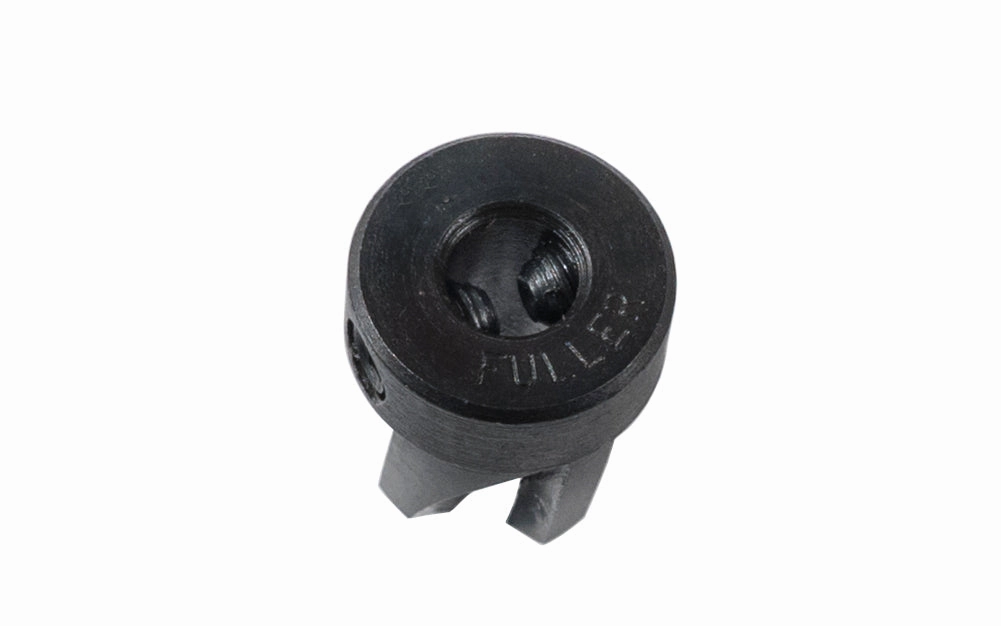

- Two hex-socket set screws in countersink

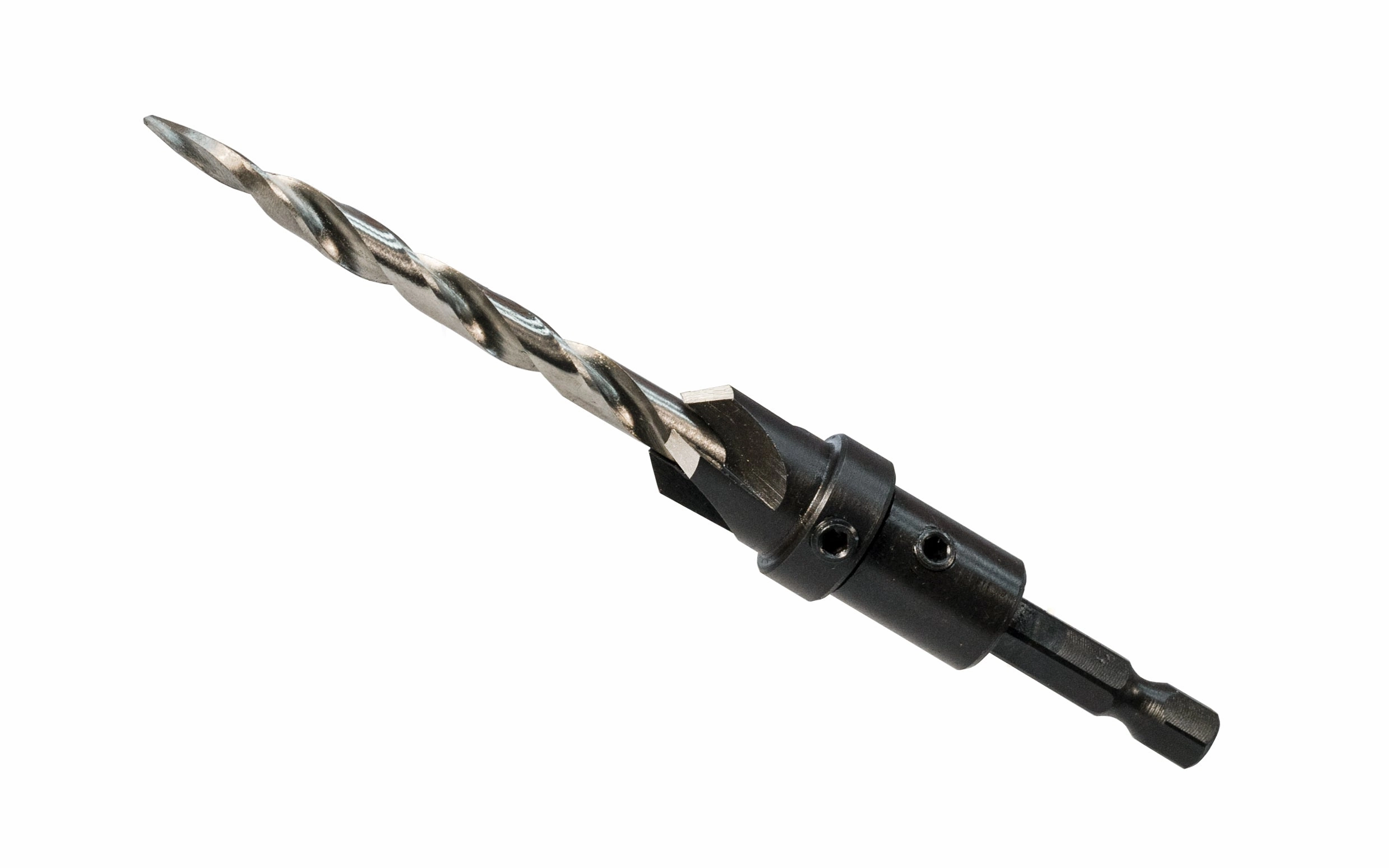

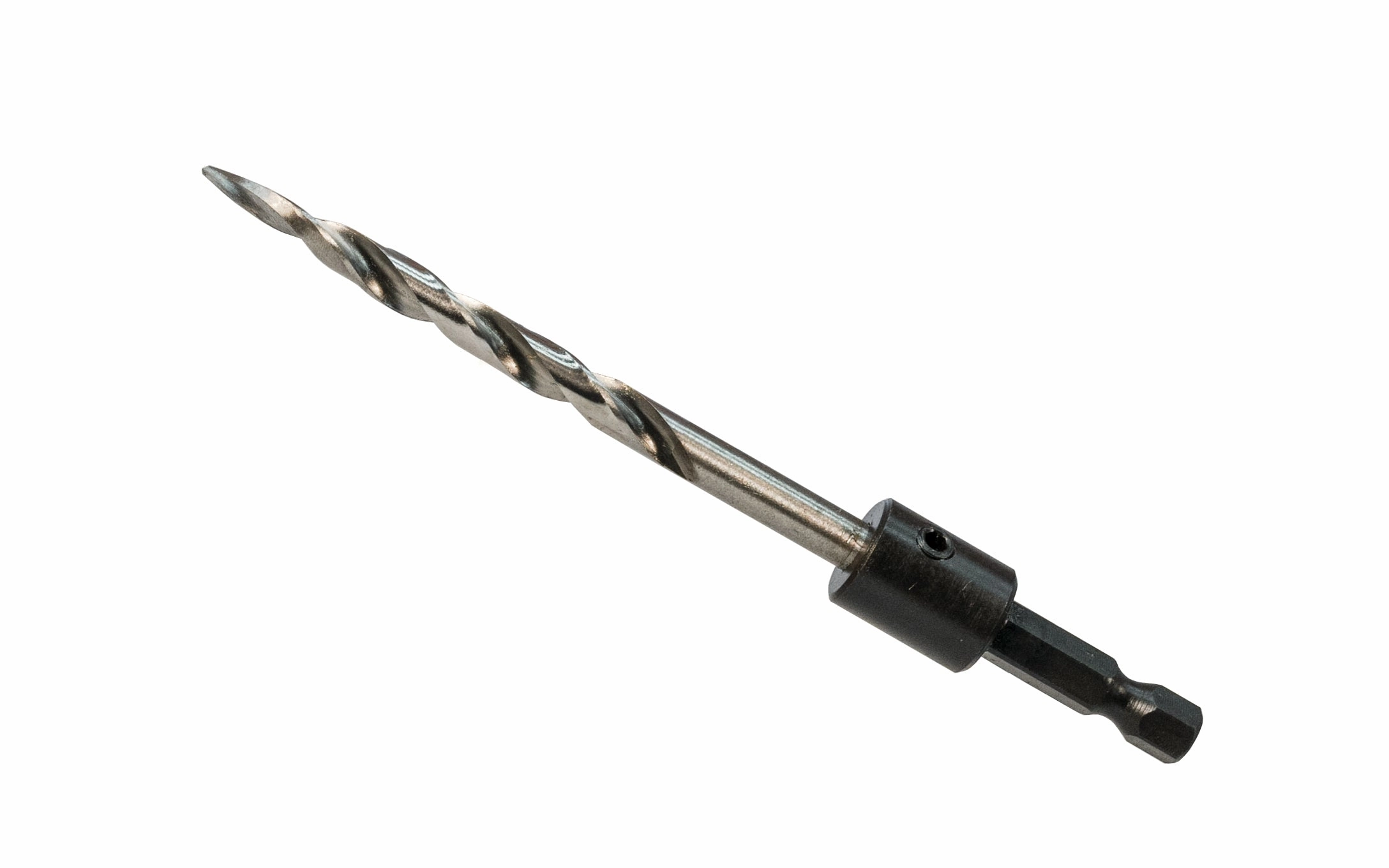

A high quality American-made quick change countersink & tapered bit made by WL Fuller. Made of carbon steel & heat-treated, this countersink is very well-built, durable, & cuts into materials well. This type C countersink is designed for use in all woods, plastics, & non-ferrous metals. It has four flutes for clean & accurate boring, & a standard 82 cutting angle which will accommodate most bevelled screws. The countersink is held in place with two hex-socket set screws fastened into the bit & is easily adjustable up & down the length of the drill bit if the need arises. A very popular item with our customers. Made in the USA.
The W.L. Fuller Co. is a family owned, third generation manufacturer of the best countersinks, counterbores, plug cutters, taper point drills, brad point drills, & step drills. All made 100% in the U.S.A. today. With over 60 years experience manufacturing tools to cut woods, plastics, & metals, Fuller provides tools you need to get the job done while saving you time & money. All of their products carry their satisfaction guarantee.
Model Cutting Diameter Drill Hole Size DrillBit Length Overall Length (Including Ball Hex) Countersink Length #C44HEX 5/16" 1/8" 2-1/4" 3-7/8" 7/8" #C65HEX 5/16" 9/64" 2-1/4" 3-7/8" 7/8" #C410HEX 5/16" 5/32" 2-5/8" 4-1/4" 7/8" #C411HEX 5/16" 11/64" 2-3/4" 4-3/8" 7/8" #C43HEX 5/16" 3/16" 3-7/8" 4-1/2" 7/8" #C5HEX 3/8" 1/8" 2-1/4" 3-3/4" 7/8" #C6HEX 3/8" 9/64" 2-3/8" 4" 7/8" #C7HEX 3/8" 5/32" 2-5/8" 4-1/4" 7/8" #C8HEX 3/8" 11/64" 2-3/4" 4-3/8" 7/8" #C9HEX 3/8" 3/16" 3" 4-1/2" 7/8" #C913HEX 3/8" 13/64" 3-1/8" 4-5/8" 7/8" #C97HEX 3/8" 7/32" 3-1/4" 4-7/8" 7/8" #C105HEX 7/16" 5/32" 3-5/8" 4-1/4" 7/8" #C1011HEX 7/16" 11/64" 2-3/4" 4-1/4" 7/8" #C103HEX 7/16" 3/16" 3" 4-5/8" 7/8" #C10HEX 7/16" 13/64" 3-1/8" 4-5/8" 7/8" #C1014HEX 7/16" 7/32" 3-1/2" 5-1/8" 7/8" #C104HEX 7/16" 1/4" 3-1/2" 5-1/8" 7/8" #C122HEX 1/2" 1/8" 3-1/8" 3-7/8" 7/8" #C129HEX 1/2" 9/64" 2-3/8" 4" 7/8" #C125HEX 1/2" 5/32" 2-5/8" 4-1/4" 7/8" #C1211HEX 1/2" 11/64" 2-7/8" 4-3/8" 7/8" #C92HEX 1/2" 3/16" 3-1/8" 4-5/8" 7/8" #C102HEX 1/2" 13/64" 3-1/8" 4-3/4" 7/8" #C12HEX 1/2" 7/32" 3-3/8" 4-7/8" 7/8" #C14HEX 1/2" 1/4" 3-5/8" 5-1/8" 7/8" #C145HEX 5/8" 5/32" 2-5/8" 4-1/4" 1-1/16" #C143HEX 5/8" 3/16" 3" 4-5/8" 1-1/16" #C167HEX 5/8" 7/32" 3-3/8" 4-7/8" 1-1/16" #C16HEX 5/8" 1/4" 3-1/2" 5-1/8" 1-1/16"
