Made in USA W.L. Fuller

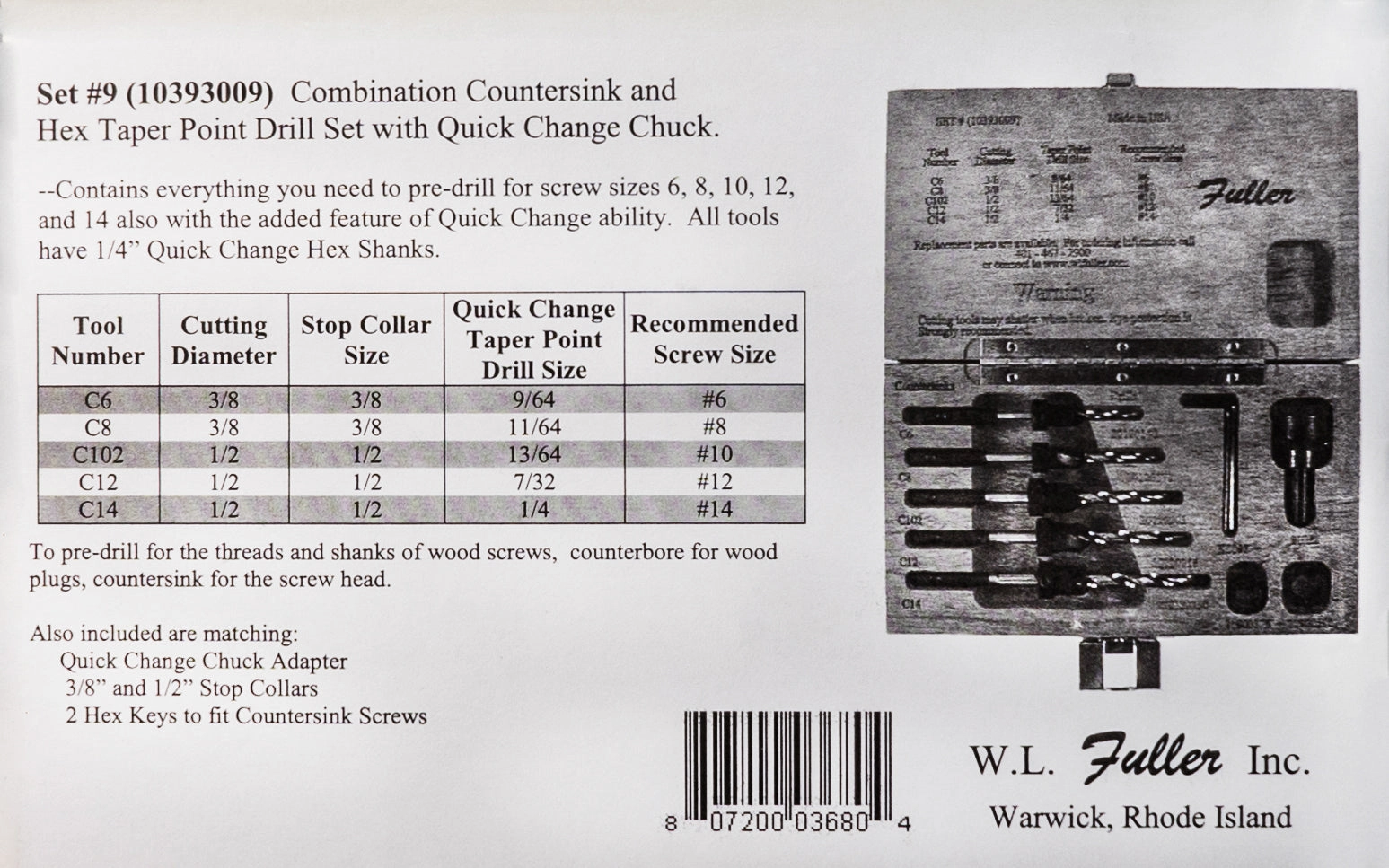

• No. 9 Set - Model 10393009
• Set for #6, #8, #10, #12, & #14wood screws

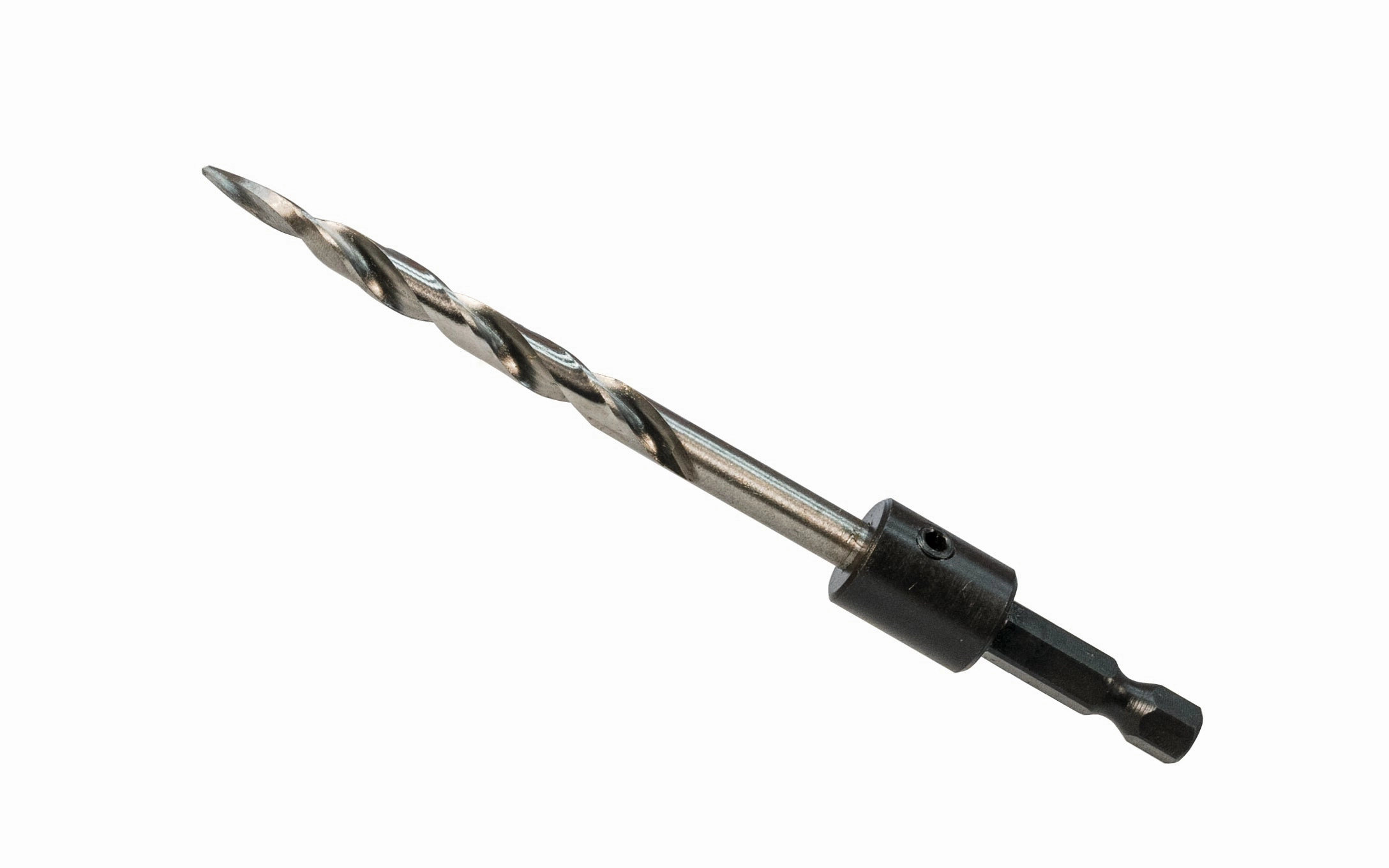

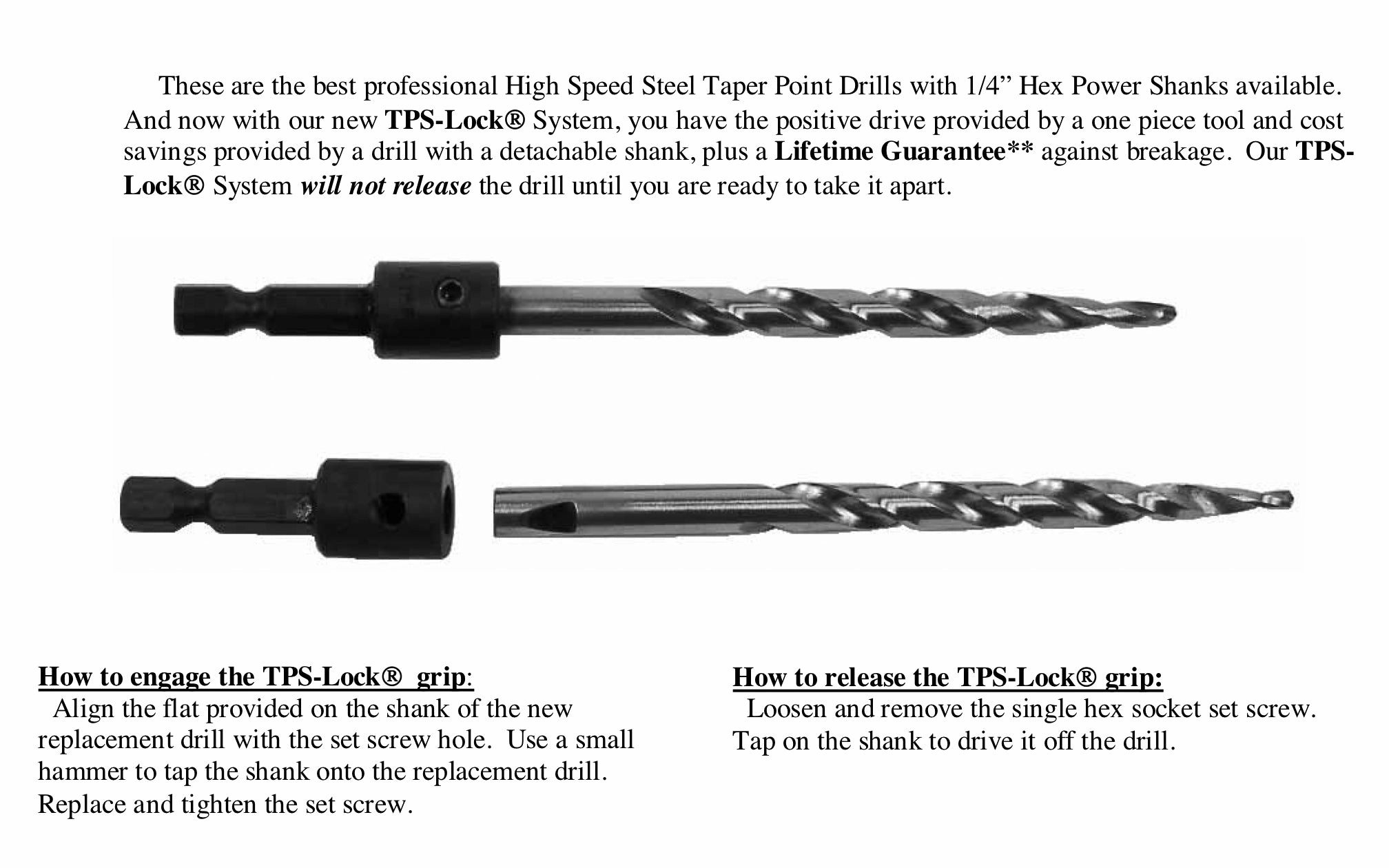

• Quick Change - Taperedbitshave1/4" ball hex shank

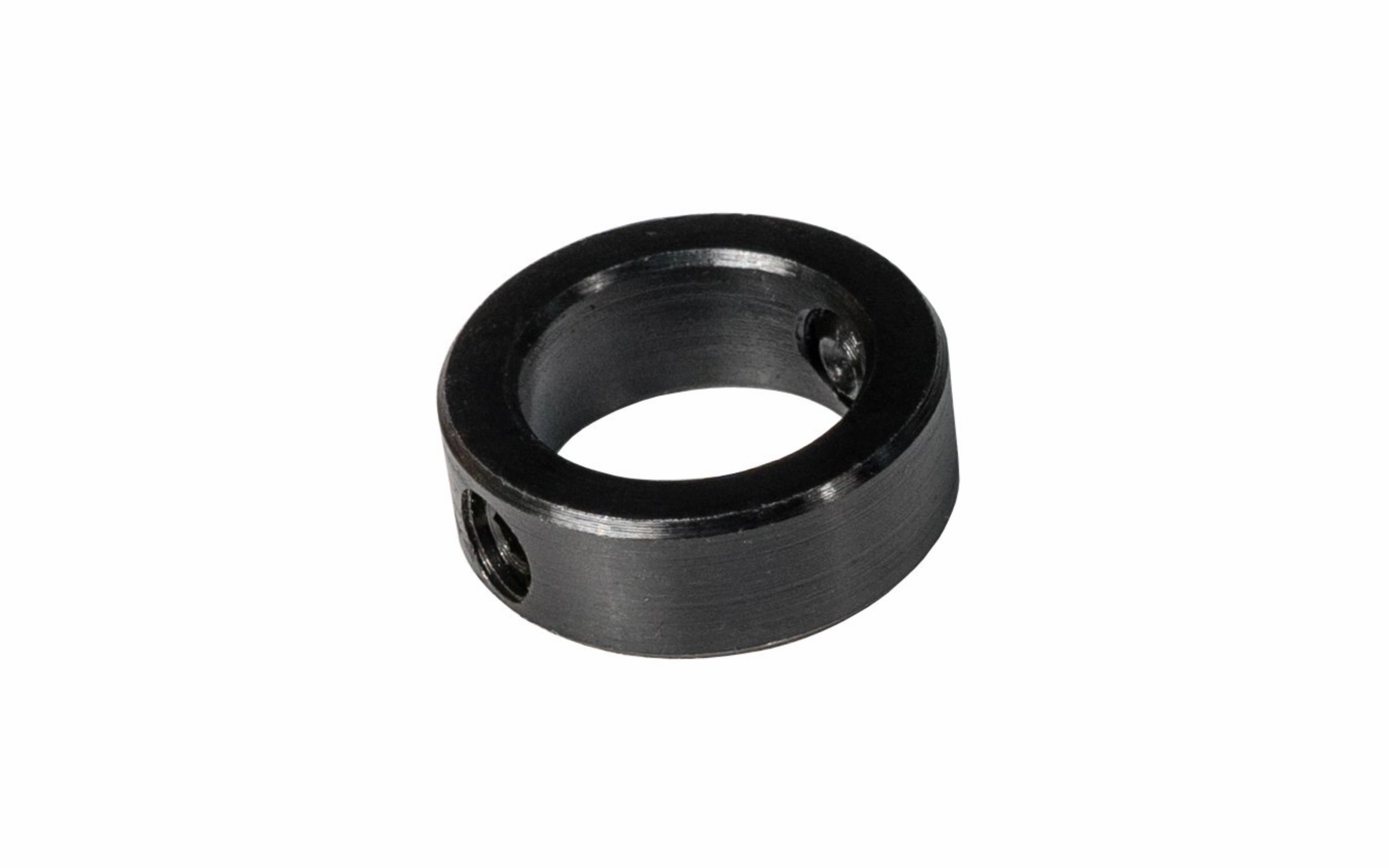

• Includes quick change adapter & stop collars
• Countersinks aremade of carbon steel & heat-treated for long tool life
• Four flutes for clean & accurate boring - 82 cutting angle head

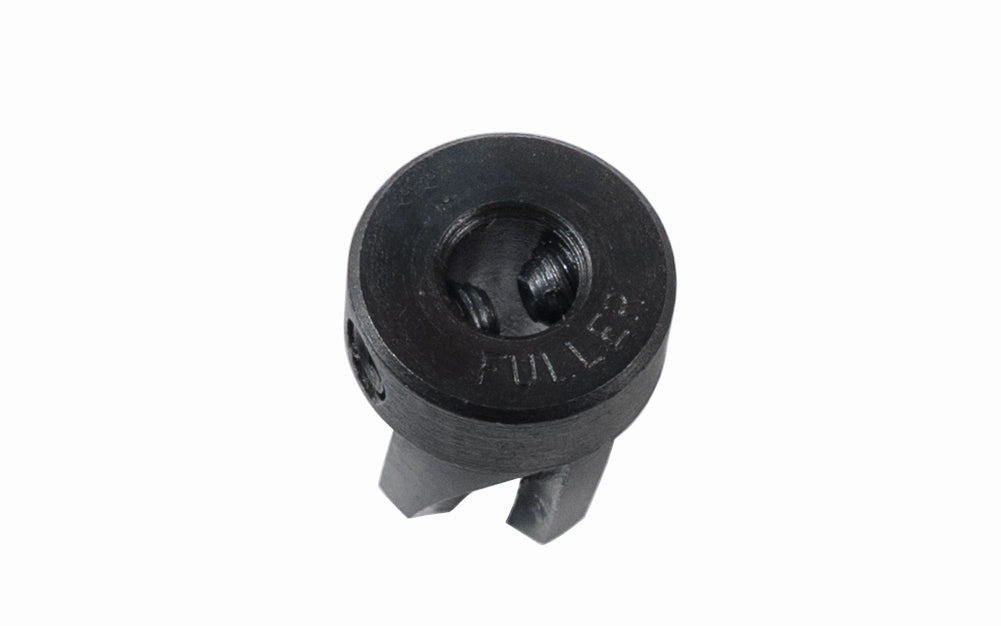

• Two hex-socket set screws in countersink

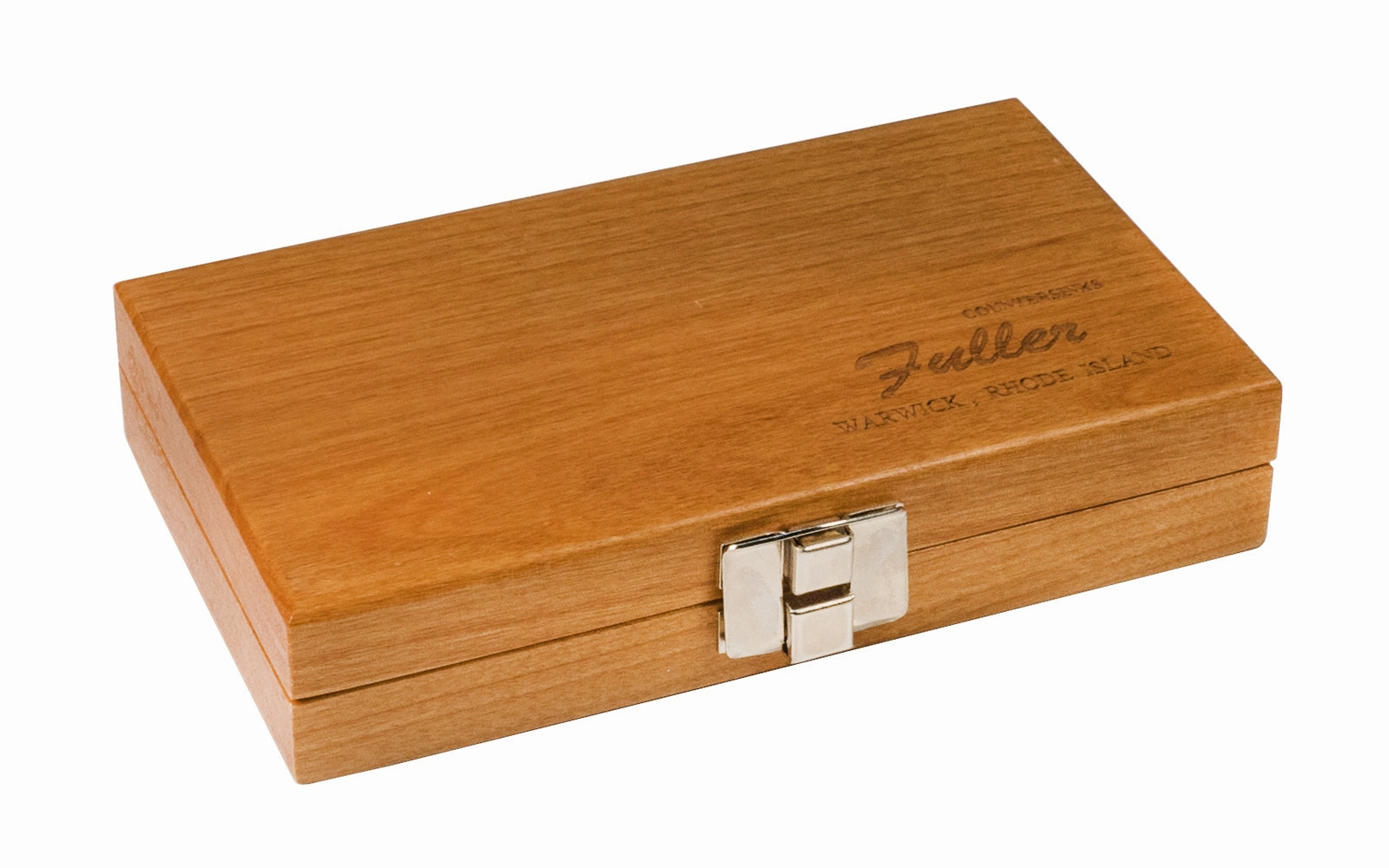

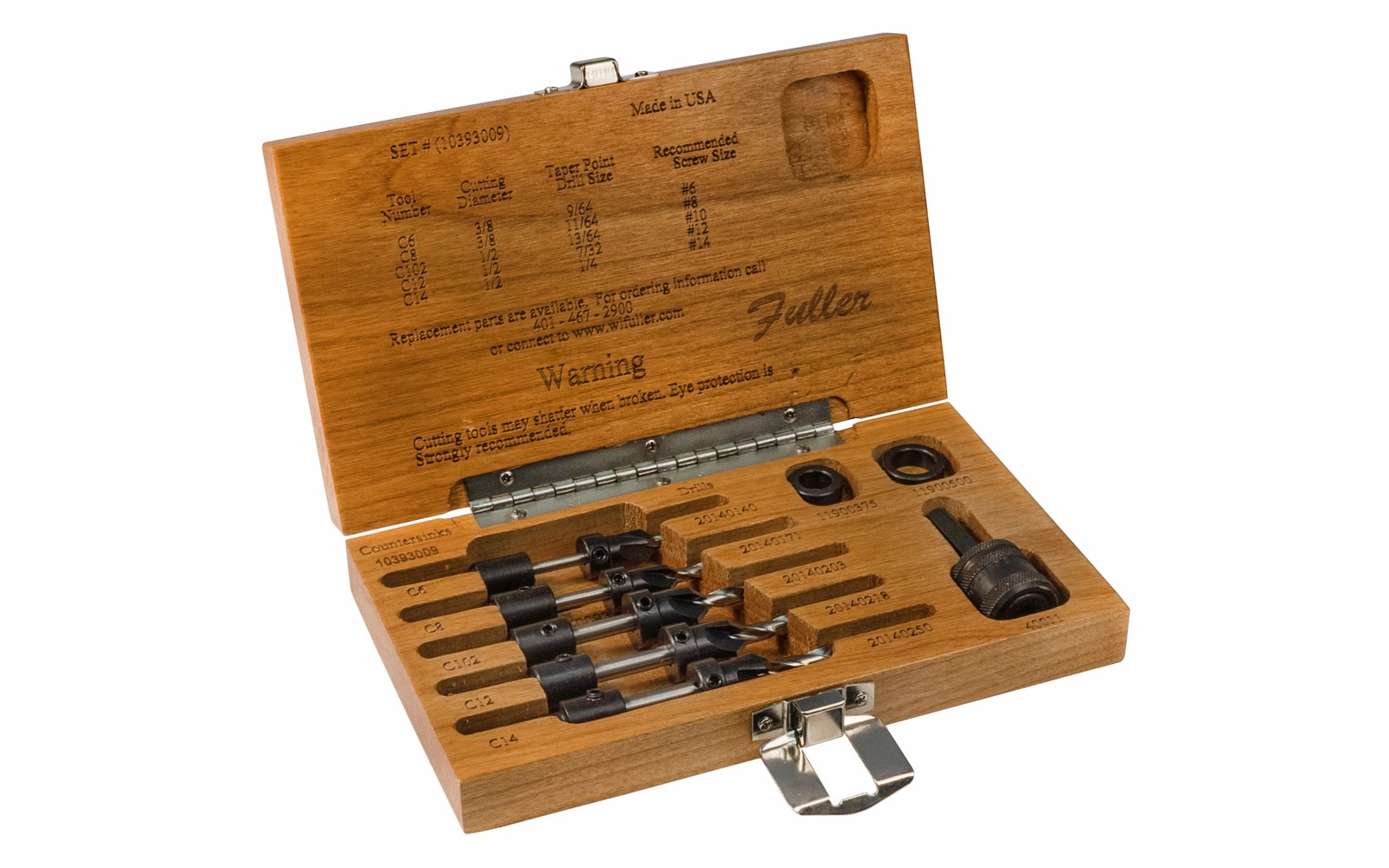

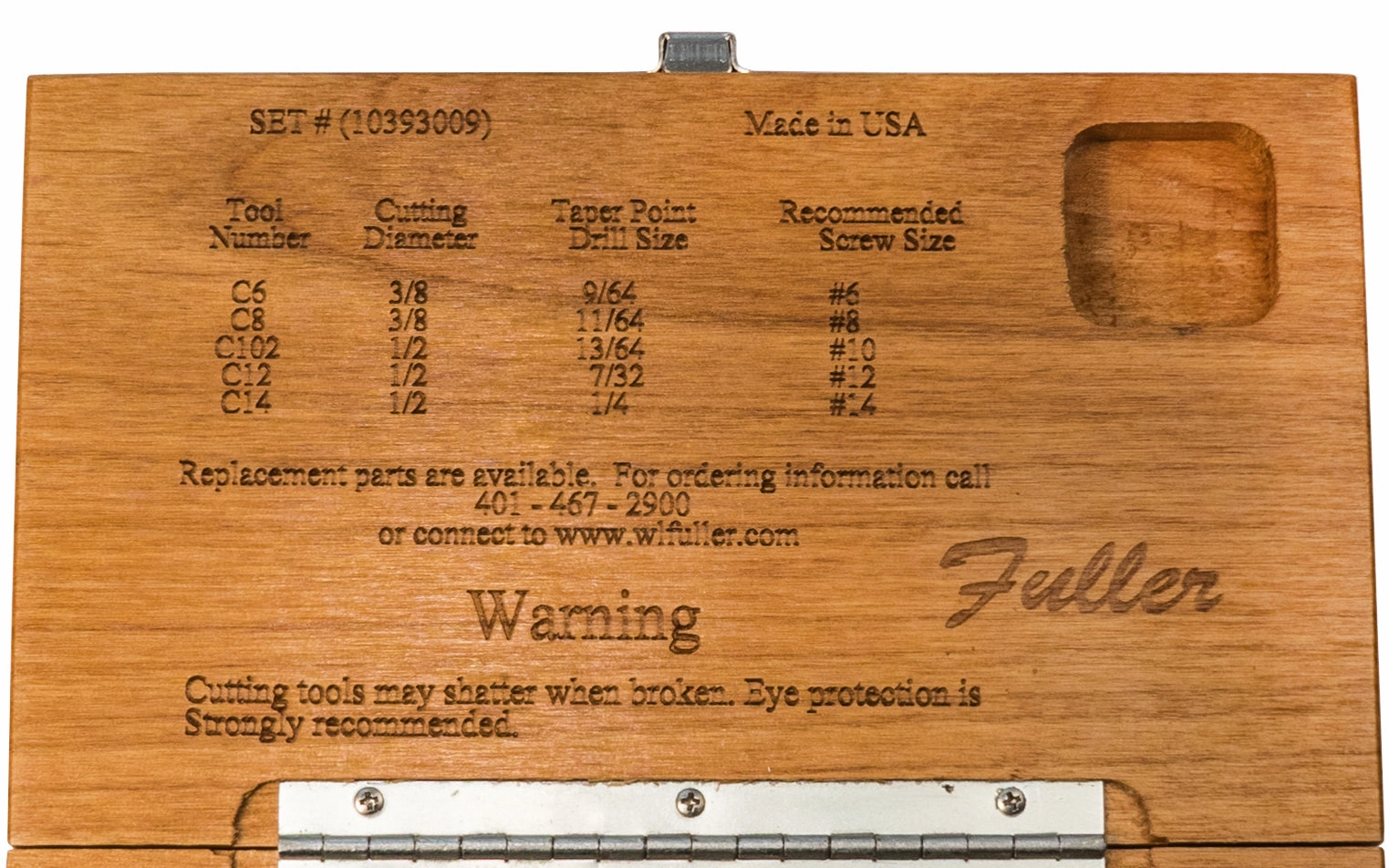

• Includes Mahogany wooden box

•

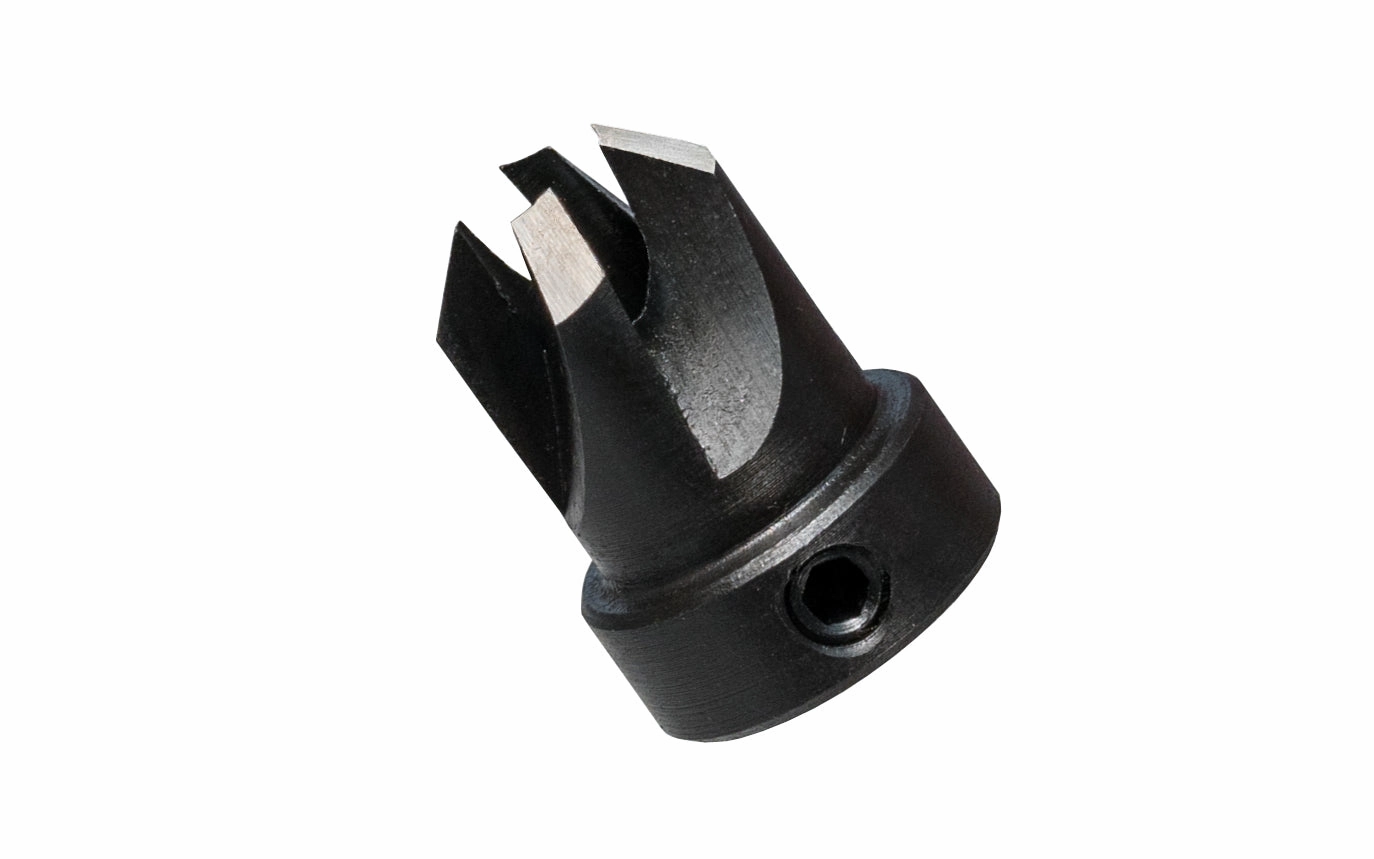

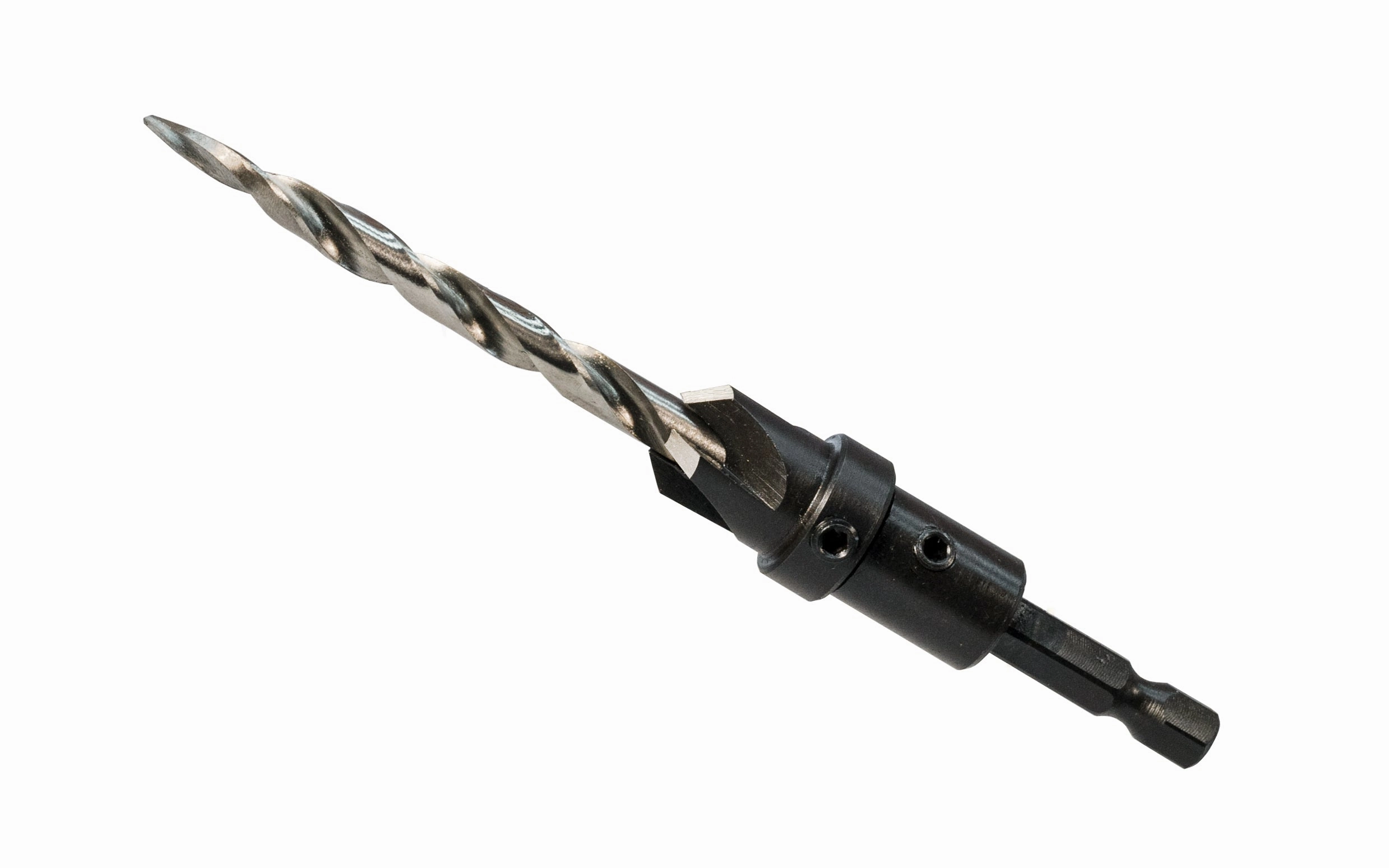

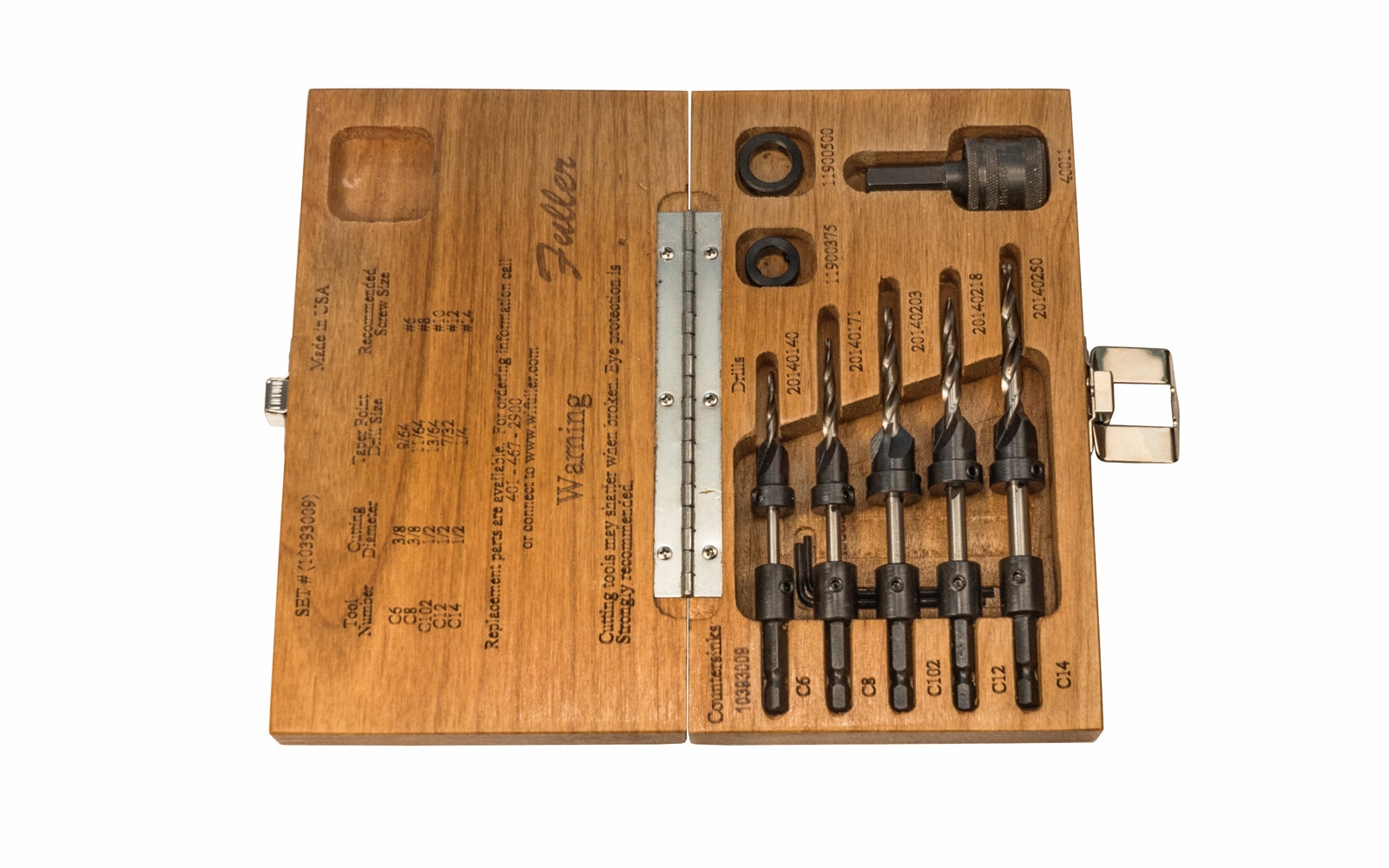

  Combination quick changecountersink & taper drill bit set with a quick change adapter& 3/8" & 1/2" stop collars made by WL Fuller. Set is designed for #6, #8, #10, #12, & #14wood screws.Made of carbon steel & heat-treated, these countersinksare very well-built, durable, & cut into materials well. This type C countersink is designed for use in all woods, plastics, & non-ferrous metals. It has four flutes for clean & accurate boring, & a standard 82 cutting angle which will accommodate most bevelled screws. The countersink is held in place with two hex-socket set screws fastened into the bit & is easily adjustable up & down the length of the drill bit if the need arises. Thecountersinks maybe mounted on taper point, brad point & regular point drills. Includes Mahogany wooden box. No. 9Set by W.L. Fuller - Model 10393009. Made in the USA.

  The W.L. Fuller Co. is a family owned, third generation manufacturer of the best countersinks, counterbores, plug cutters, taper point drills, brad point drills, & step drills. All made 100% in the U.S.A. today. With over 60 years experience manufacturing tools to cut woods, plastics, & metals, Fuller provides tools you need to get the job done while saving you time & money. All of their products carry their satisfaction guarantee.

•

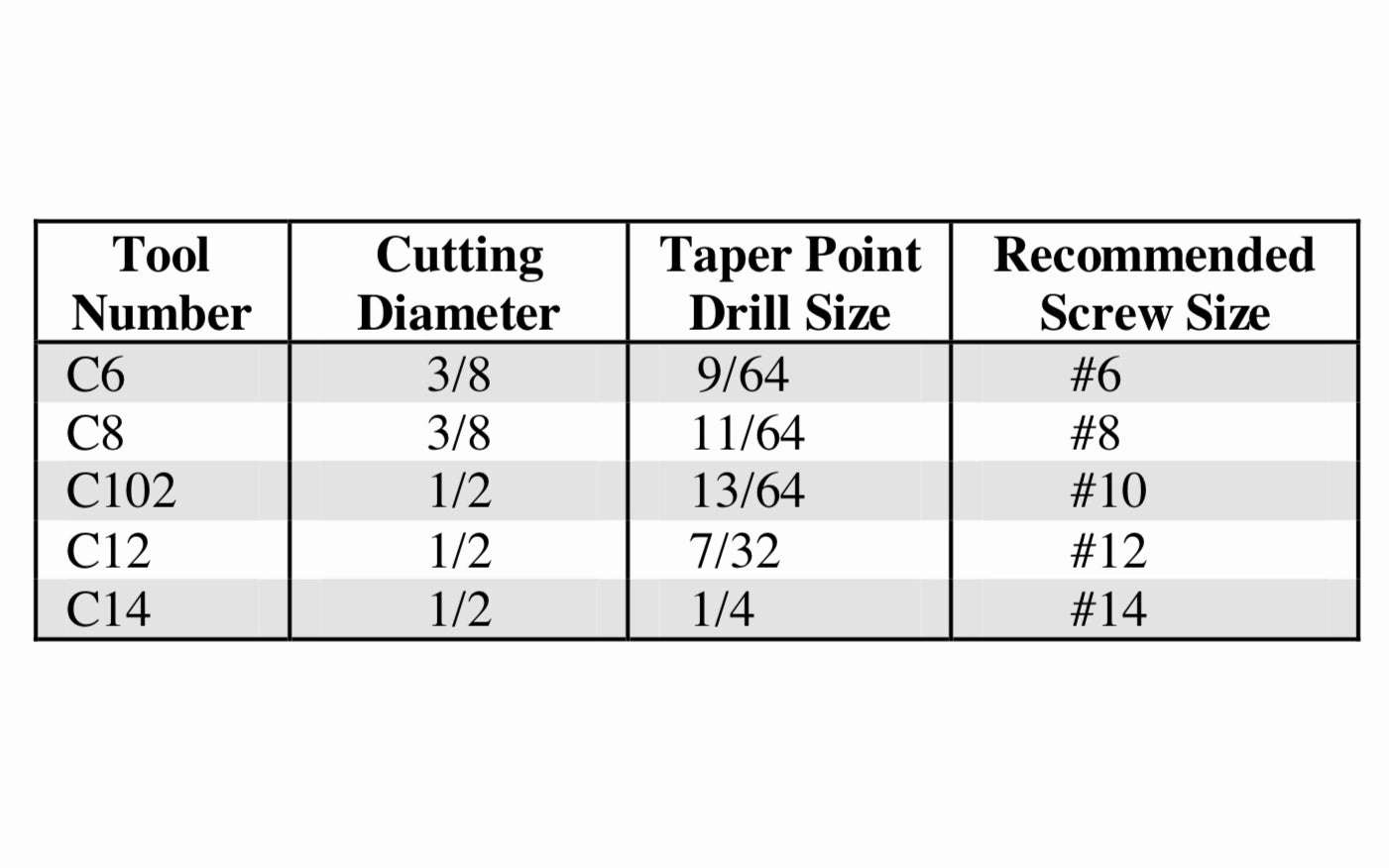

  Countersinks in Set	Cutting Diameter	Stop Collar Size	Recommended Screw Size	Drill Hole Size	DrillBit Length	Overall Length (Including Ball Hex)	Countersink Length
  #C6	3/8"	3/8"	#6	9/64"	2-3/8"	4"	7/8"
  #C8	3/8"	3/8"	#8	11/64"	2-3/4"	4-3/8"	7/8"
  #C102	1/2"	1/2"	#10	13/64"	3-1/8"	4-3/4"	7/8"
  #C12	1/2"	1/2"	#12	7/32"	3-3/8"	4-7/8"	7/8"
  #C14	1/2"	1/2"	#14	1/4"	3-5/8"	5-1/8"	7/8"
