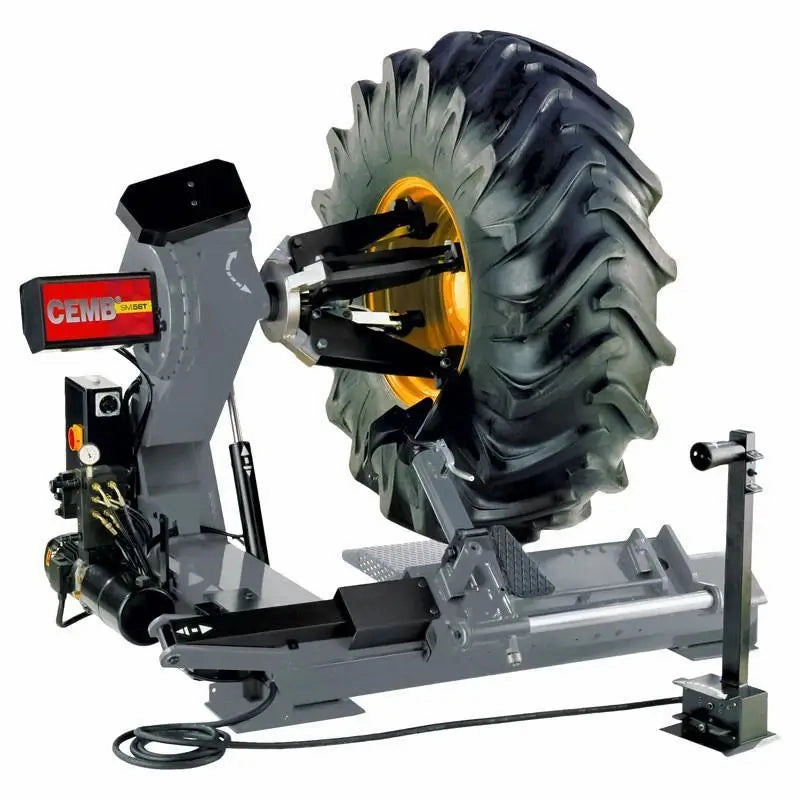

Universal tire changer for trucks and bus wheels, clamping range 14 - 46, mobile control unit, 2-speed rotation, self-centering wheel chuck. SM56T Universal Tire Changer for Truck, Bus, Agriculture, and Earth Moving Vehicles 14in. - 56in. (up to 56in. with optional extensions)
Features:
- Mobile cable control unit
- Two-speed hydraulic pump motor
- Bi-directional rotation
- Self-centering universal wheel chuck
- Rim pliers and rim lever standard.
Specs:
Power Supply: 220VAC, 50/60 Hz, 3 phRim Clamping Range: 14in - 46in / 56in with optional access.
Max. Tire Outside: 2,300 mm 90.5in
Max. Tire Width: 1,070 mm 42in
Max. Tire Weight: 3,300 lbs 1,500 Kg
Bead Breaker Force: 6,000 lbs 2,721 Kg
Operating Pressure: 130 bar 1,885 psi
Gross Ship. Weight: 2,000 lbs 907 Kg
